Reese 33015 PROFESSIONAL RECEIVER User Manual

Installation instructions, Fasteners typical both sides, Part numbers

background image

Installation Instructions

Chevrolet Blazer

GMC Jimmy

Oldsmobile Bravada

GMC Envoy

Part Numbers:

75079

33015

78167

87478

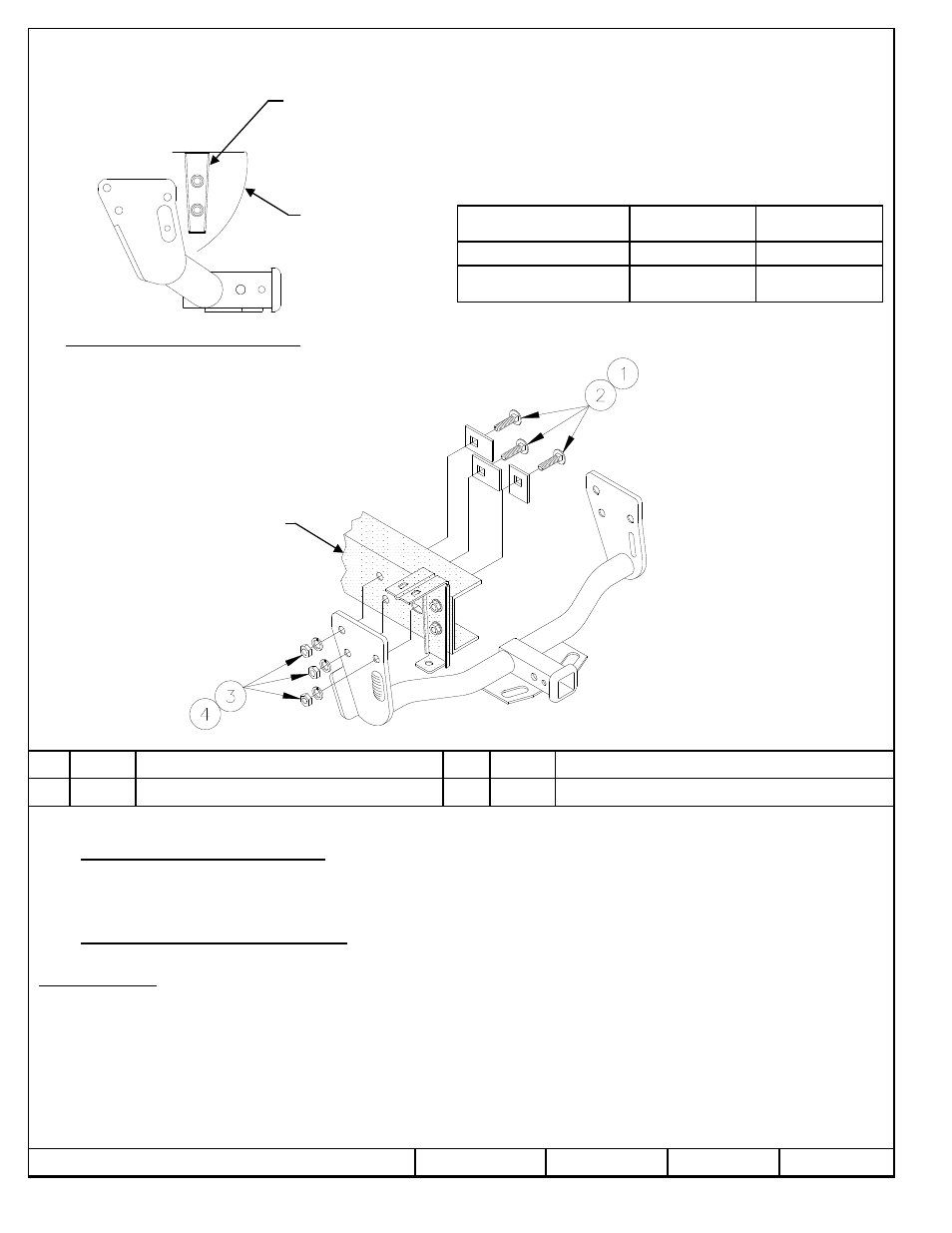

Hitch Shown In Proper Position

Equipment Required:

Wrenches: 7/8”, 18mm

Drill Bits: None

Note: For 1998 and newer models:

With original equipment trailer hitch:
1. Purchase left and right bumper brackets from General Motors dealer (part numbers 15719945 and 15719946)
2. Remove trailer hitch.
3. Install bumper brackets.
Without original equipment trailer hitch:
1. Remove forward bumper bolts (4) and return to vehicle owner.

Hitch Installation:
1.

Raise hitch into position and install (3) ½ x 1-3/4” carriage bolts, blocks, lock washers and nuts as shown, each side. Position

blocks as shown above.

Rev. D

11/27/07

N75079

Sheet 1 of 3

z 1997, 1998,1999, 2000, 2001,2002,2006, 2007 Cequent Towing Products

Hex Nut ½-13

Qty. (6)

4

4

4

4

Block ¼ x 1-1/2 x 2

Qty. (6)

2

2

2

2

Lock Washer ½”

Qty. (6)

3

3

3

3

Carriage Bolt – ½-13 x 1-3/4” GR5

Qty. (6)

1

1

1

1

Tighten all ½ GR5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Fastener Kit: F75079

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

400 (182 Kg)

4000 (1 816 Kg)

Weight Carrying

Ball Mount

600 (272 Kg)

6000 (2 724 Kg)

Weight Distributing

Max Tongue

WT (LB)

Max Gross

Trailer WT (LB)

Hitch type

Wiring Access Location: SUV5

Form: F205 Rev A 5-6-05

Fasteners typical
both sides.

Vehicle frame

Bumper
Mounting
Bracket

Bumper
