Installation Instructions

Chevrolet Silverado Pickup 1500

GMC Sierra Pickup 1500
(Requires OEM Bumper)

Part Numbers:

87430

75521

44563

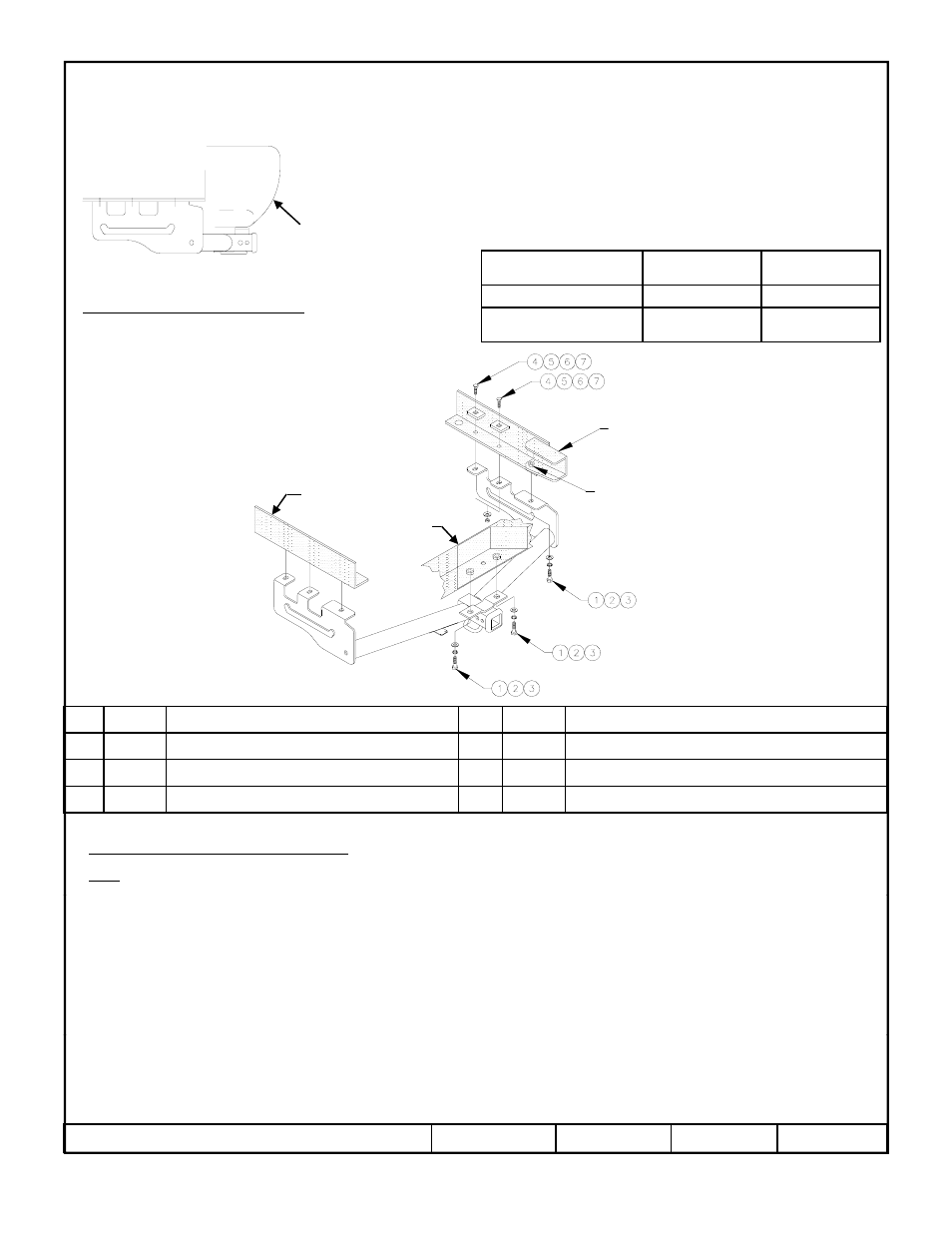

Hitch Shown In Proper Position

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

Hitch type

Max Gross

Trailer WT (LB)

Max Tongue

WT (LB)

Weight Distributing

10,500 (4767 Kg)

1050 (477 Kg)

Weight Carrying

Ball Mount

6000 (2724 Kg)

900 (409 Kg)

Note: Factory Installed Steel Step Bumper
and Brackets Must Be Used In
Conjunction with Hitch

Equipment Required:

Wrenches: 3/4, 21 mm, 22mm

Drill Bits: None

Fastener Kit: 75521F

Wiring Access Location: PU3

Factory installed Bumper Bracket
- Typical Both Sides

Existing Weldnut Typical both sides

Frame

Bumper

1

Qty. (4)

Bolt M14 X 2.00 X 40mm CL10.9

5

Qty. (4)

Block

2

Qty. (4)

Lock Washer 9/16

6

Qty. (4)

Conical Washer 1/2

Note: All Fasteners Typical Both Sides of Vehicle

Fasteners Typical Both Sides of Vehicle

Note: Factory Installed Steel Step Bumper and Brackets Must Be Used In Conjunction with Hitch
1. Remove existing M14 bolts from end of each frame rail.

3

Qty. (4)

Flat Washer 9/16

7

Qty. (4)

Hex Nut 1/2-13

4

Qty. (4)

Carriage Bolt 1/2-13 X 1-3/4 GR5

1. Remove existing M14 bolts from end of each frame rail.
2. Lift receiver into position, locating rearmost slots in receiver under existing weldnuts in vehicle frame.
3. Install new M14 bolts through receiver into weldnuts in vehicle frame and into step bumper.
4. Install remaining fasteners as shown.

Tighten all 1/2 GR5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)

Tighten M14 CL10.9 fasteners with torque wrench to 115 Lb.-Ft. (156 N*M)

z

2006, 2011 Cequent Performance Products

Sheet 1 of 3

75521N

3-3-11

Rev. B

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Form: F205 Rev A 5-6-05
