A10406 OR LECU5004
MICROPAK CONTROL UNIT
(See the current "MicroPak" Service Manual sup-
plied with the control unit for service information.)
ACCESSORIES
Accessories for the Evolver Solventborne Spray
Guns include:
75777-XX Gun Covers
74035-XX Test Air Cap and Gauge Assy.
73896-01 Electrode and Air Cap Protector
79203-00 Tool Kit
A10408
Manifold O-Ring Kit
A10407
Mounting Plate O-Ring Kit
A10409
Regulator Repair Kit
A10410
Spray Head Plate O-Ring Kit
A10411
Spray Head Repair Kit
77620-00 Valve Plug Kit
The 74035, Test Air Cap and Gauge Assembly,
is designed for use with a Test Station or while
the gun is connected to the robot or reciprocator.
The test air cap is comprised of two air pressure
gauges, pressure gauge stand, special 74061-XX
air caps, and all required tubing and fittings.
The air cap has two tapped holes for small barbed
tube fittings. The fittings are located so that the
gauges connected to them will measure the actual
cap pressure of the atomization and pattern air.
Using this test cap will assure uniform atomization
and pattern quality, regardless of air supply tube
lengths from one gun to another.
73896-01 Electrode and Air Cap Pro-
tector
This is a plastic cylinder that fits over the air cap
retainer. The protector keeps the electrode and
other spray head parts from being damaged during
booth cleaning and at other times when the spray
gun is not in use.
79203-00 Tool Kit
Provided with each gun is a tool kit to aid in the
disassembly and assembly of the gun during
servicing.

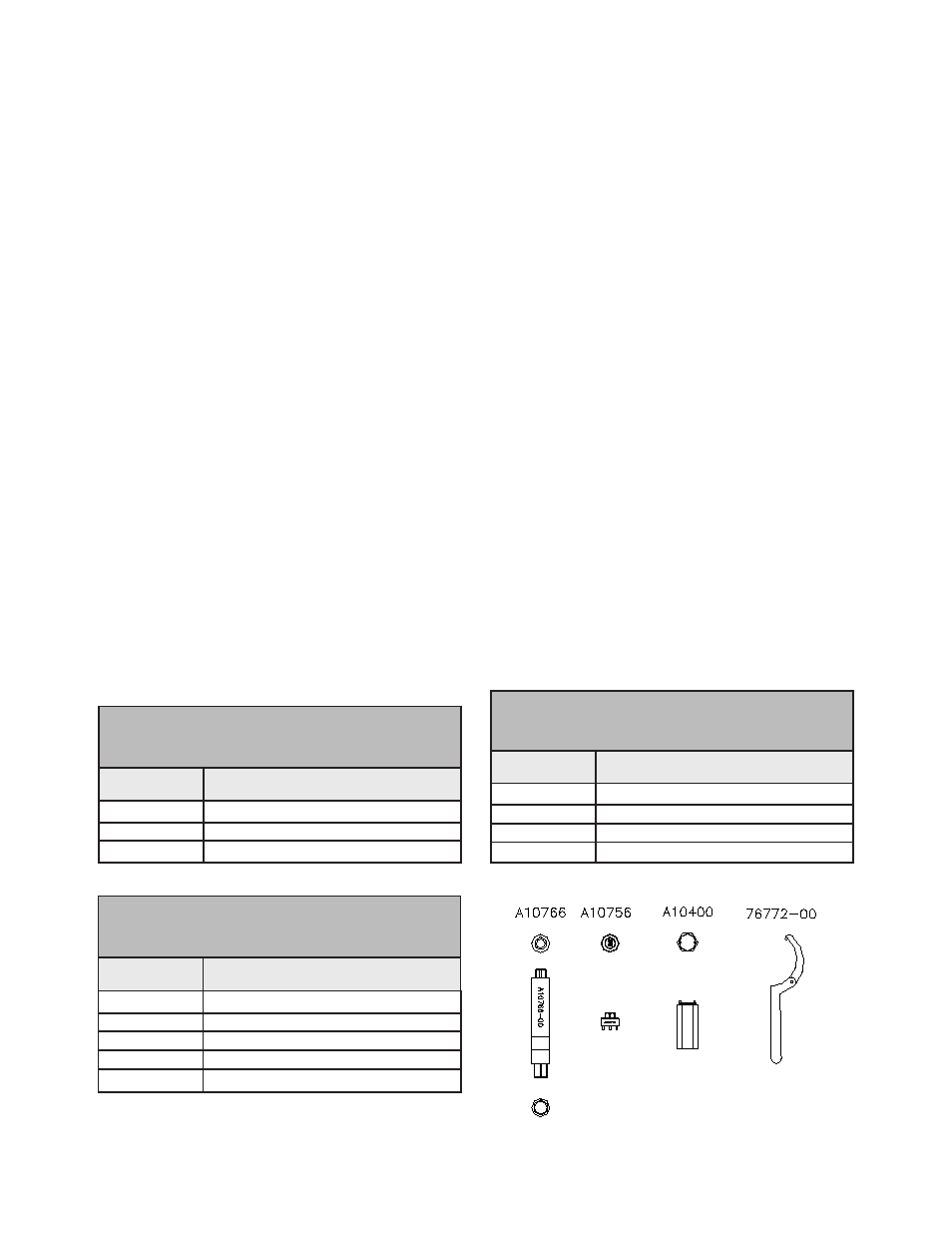

Figure 16: 79203-00 Tool Kit
75777-01
Single Head Gun
75777-02
Dual Head Gun
75777-03
Robot Wrist Flange
75777-XX GUN COVERS
Part #
Description
74035-21
#65R-1 Test Cap
74035-22
#98-1 Test Cap
74035-23
#63-1 Test Cap
74035-24
#48-1 Test Cap
74035-25
#481-1 Test Cap
74035-XX TEST AIR CAPS &
GAUGE ASSEMBLY
Part #
Description
A10756-00
Valve Removal Tool
A10766-00
Valve Seat Removal Tool
76772-00
Retaining Ring Spanner
A10400
Seal Carrier Tool
79203-00 TOOL KIT
(For Dual Head Guns)
Part #
Description
