Ransburg – Ransburg Evolver Solvent Robot Applicator 79190-XXXXXXXX User Manual
Page 40
3
2
1
5
4
6
7

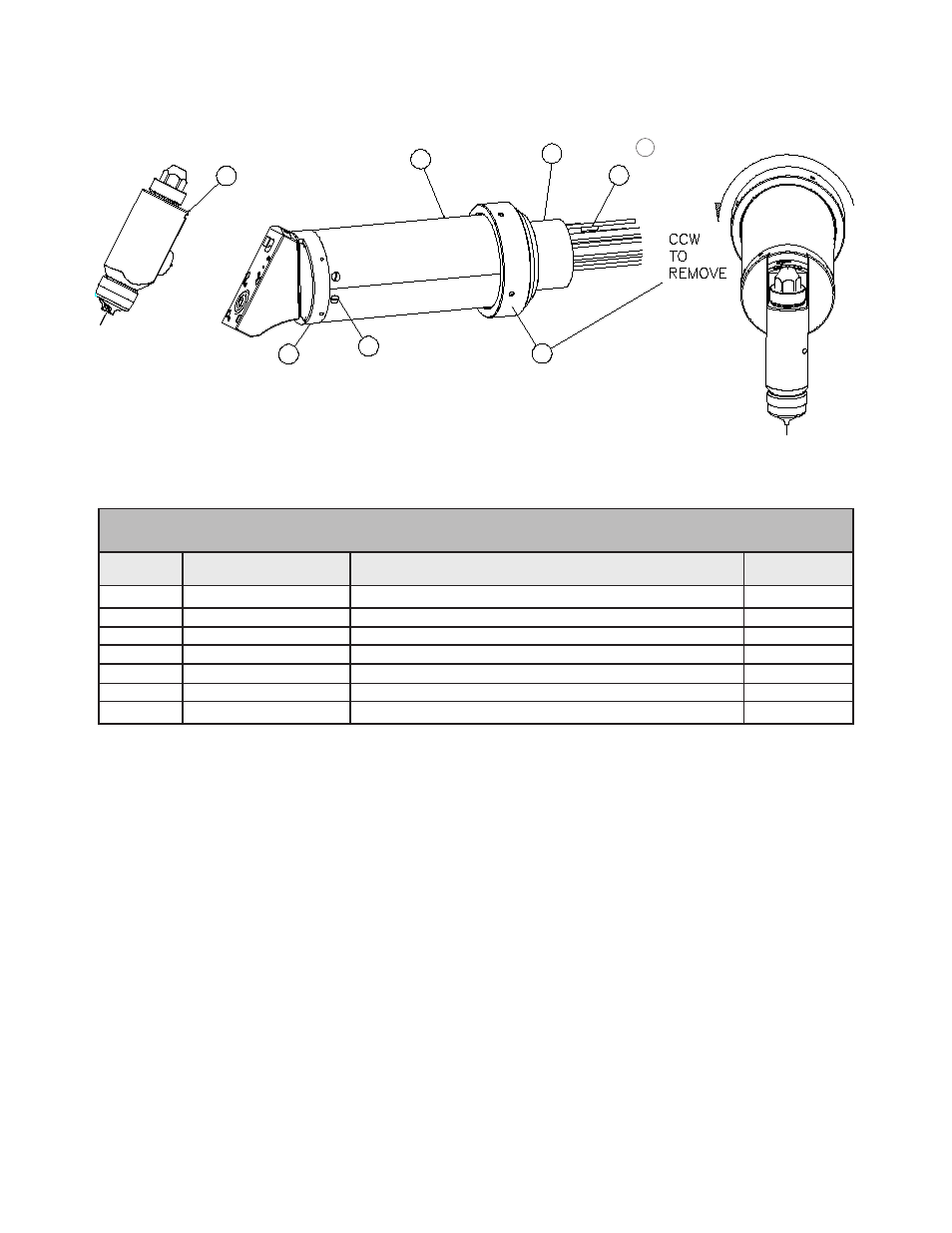

Figure 10: 79190 Evolver Gun Assembly
8
1
79138-01
Spray Head Assembly, Conventional Spray
1
2
79175-02
Dual Purge, No Regulator
1
3
79161-00
Screw, Flat Head, Slotted
4
4
79157-00
Shroud, Matched Set
1
5
79158-00
Retaining Ring
1
7
79156-XXXX
Rear Manifold Assembly (English)
1
8
A10853-XXXX
Rear Manifold Assembly (Metric)
1
Item #
79190 EVOLVER GUN ASSEMBLY - PARTS LIST (Figure 10)
Part #
Description
Qty
Evolver Solventborne Robotic Atomizers - Maintenance
36
Ransburg
AA-03-02.12
