Vector Solo AA90 Applicators - Parts Identification
Ransburg
51 AH-08-04.2

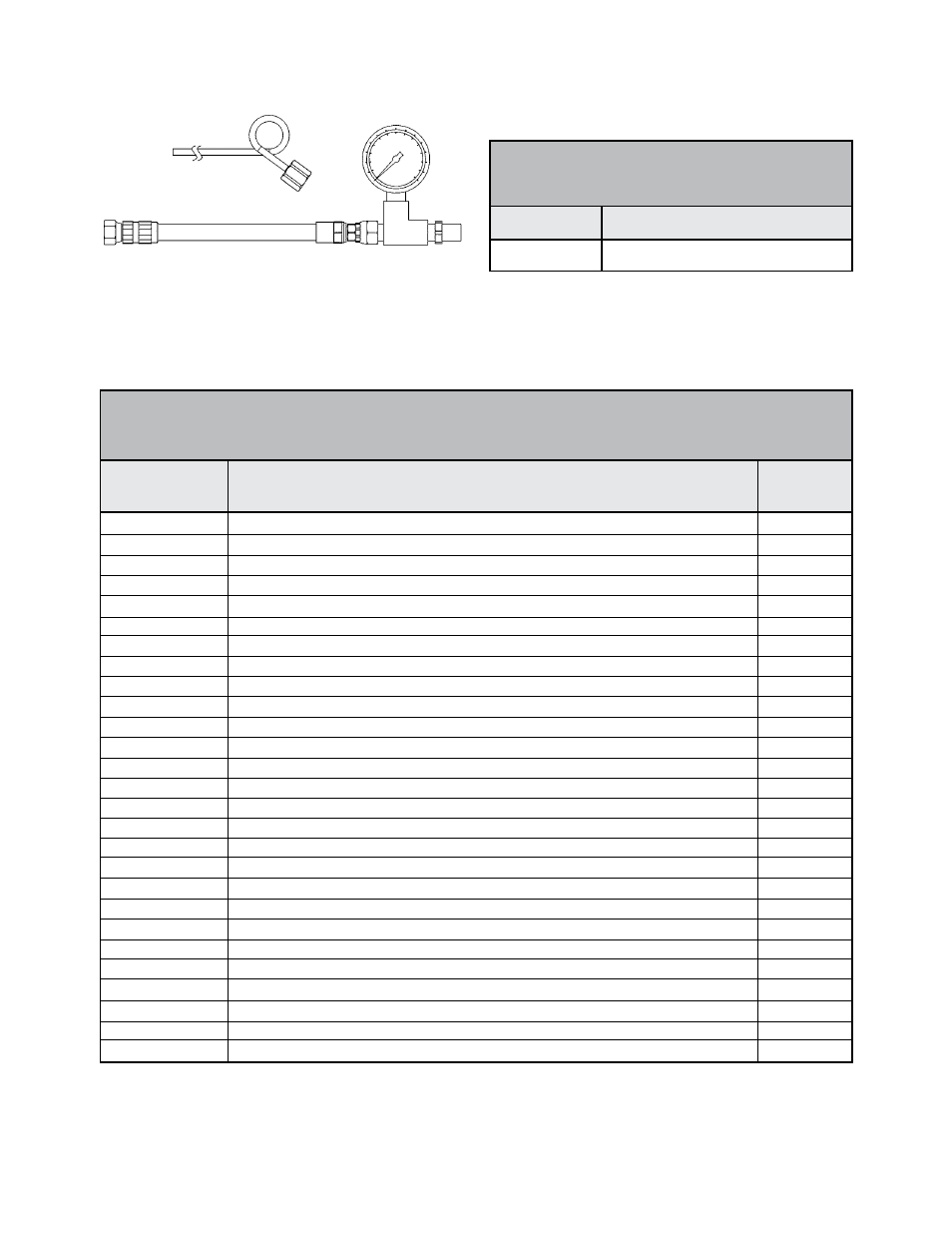

Figure 86: Test and Maintenance Kit - Optional
79870-00 Test and Maintenance Kit
TEST AND MAINTENANCE KIT -
(OPTIONAL)
(Figure 86)
Part # Description
79668-00 Fluid Nozzle 2
79697-00 Assembly, Barrel, Vector Solo AA90 1
79600-00 Cascade Assembly 1
79832-00 Gasket, Barrel 1
79001-09 O-Ring, Solvent Proof 2
79695-00 Air Cap, Vector Solo AA90 2
79568-00 Retaining Ring 1
LSOR0005-17 O-Ring, Teflon Encapsulated 1
79694-00 Assembly, Trigger 1
79454-00 Screw, Trigger Retention 2
79768-00 Nut, Fluid Jam, Front 1
79744-00 Spring, Air Valve Return 1
79835-00 Assembly, Power Module (Includes Items 39, 40, 41, 42, and 43) 1
79768-00 Nut, Fluid Jam,Spring Guide 1
78824-00 Spring 1
79781-00 Seal, Adjustment Bushing 1
79837-00 Gasket, Handle to Power Module 1
79760-00 Seal, Air Valve 1
79847-00 Valve, Compensation Atomizing 1
79836-00 Gasket, Exhaust 1
79843-00 Assembly, Exhaust Housing 1
79529-00-K5 Applicator Cover 2
LSCH0009-00 Dielectric Grease 2
72375-02 Fluid Tube Seal 2
72375-03 Nozzle Seal 1
79662-00 Trigger Lock 1
79602-00 Roll Pin 1
VECTOR SOLO AA90 APPLICATOR
RECOMMENDED SPARE PARTS
(Quantities Per Applicator)
Part # Description Qty
