Page 30
Vector Solo AA90 Applicators - Maintenance
Ransburg
26
AH-08-04.2
2. Remove fluid hose at base of applicator.

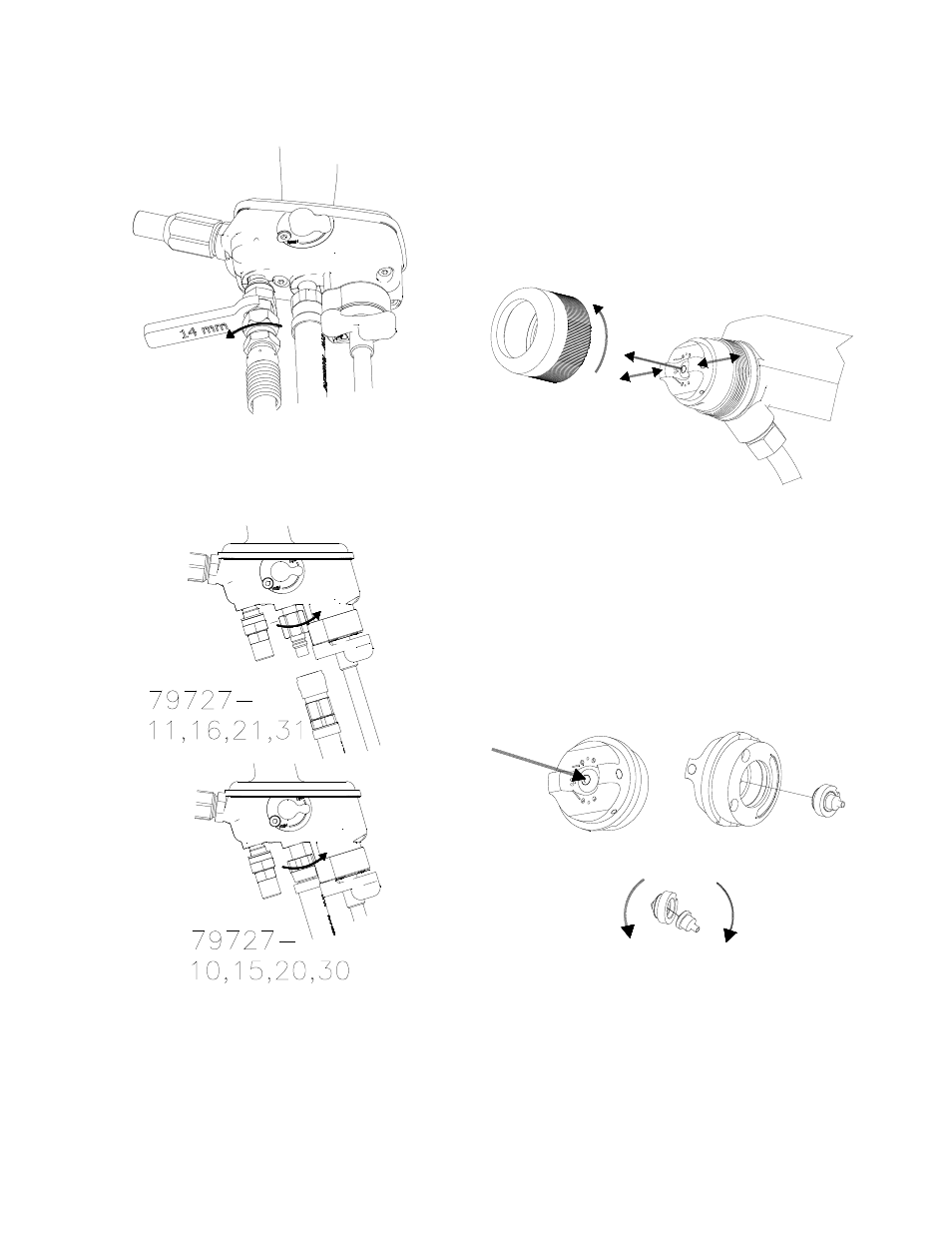

Figure 18: Counter-Clockwise to
Remove Fluid Hose
3. Remove air hose at base of applicator.
Figure 19: Clockwise to Remove QD
Stem/Air Hose
Figure 21: Spray Tip and Seal Removal
Spray Tip Removal/Carbide
Removal
1. Remove the retaining nut completely by hand.
2. Remove the air cap from applicator by grabbing
the horns pushing side to side while pulling the
cap away from the applictor.
Figure 20: Spray Tip Removal/Carbide Removal
3. Push the spray tip and holder out of the air cap
by pressing with a finger or soft object on the car-
bide or tapered portion of spray tip. The carbide
spray tip contains a removable nozzle seal with
or without a pre-orifice. The pre-orifice seal is
black, the standard seal is white. To remove the
sealfrom the tip holder, hold the end of the tip and
the end of the seal and snap apart the two pieces.
C C W
C W
C W
C W
C W
