Vector Solo AA90 Applicators - Parts Identification
Ransburg
48 AH-08-04.2
1 79919-00 Fluid Inlet, AA 1
2 79746-00 Grounding Clip 1
3 79814-00 Socket Head Cap Screw, 4mm X 20mm Lg. 2
4 79637-00 1/4 Power Module --
5 79636-00 3/4 Power Module --
Item #
POWER MODULE REPLACEABLE PARTS - PARTS LIST
(Figure 81)
Part # Description Qty

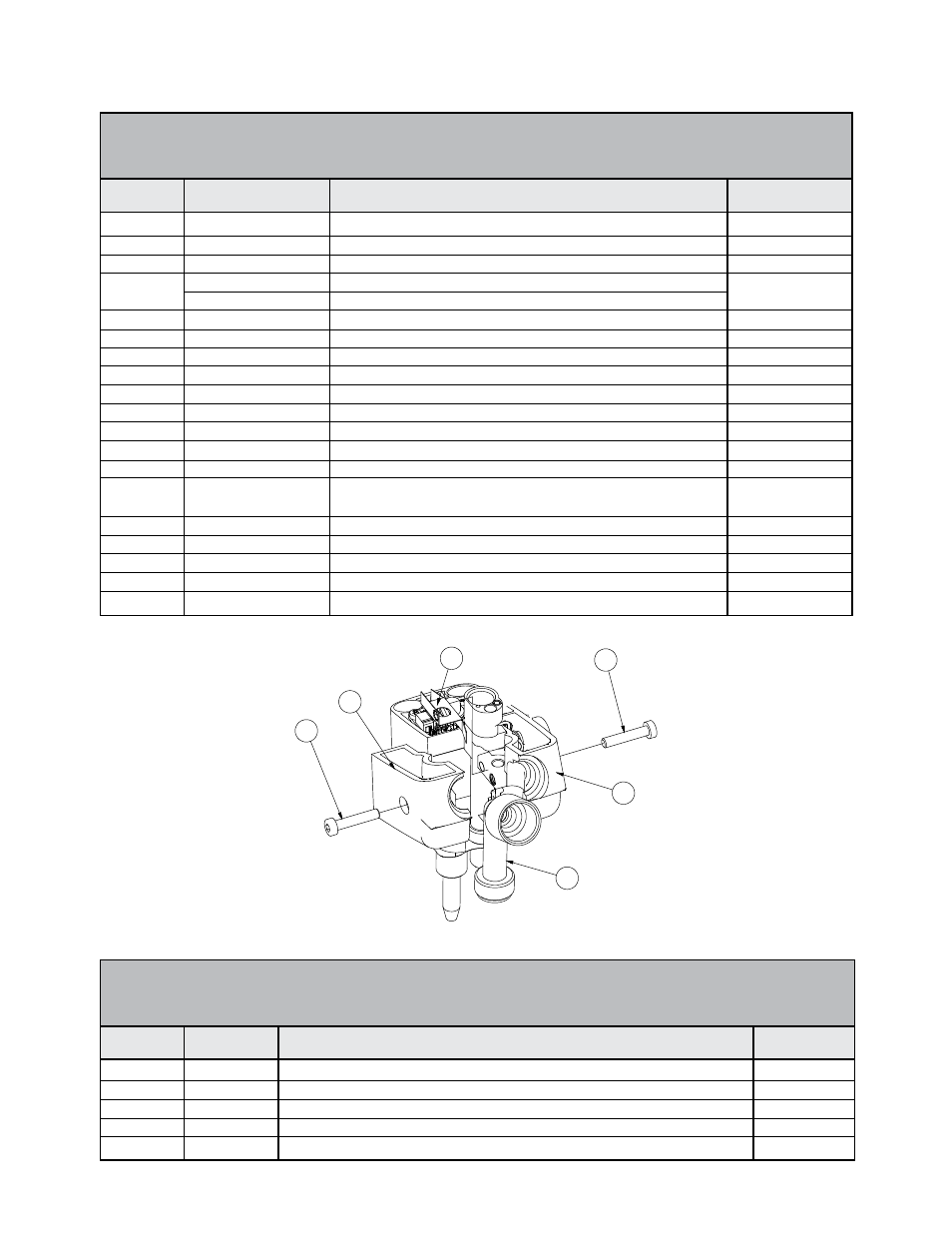

Figure 81: Power Module Replaceable Parts
39 79770-00 Cartridge, Air Valve 1
40 79772-00 Assembly, Air Valve 1
41 79759-00 Assembly, Fan Air Adjust Valve 1
42 79847-00 Valve, Atom Adjust (Optional) 1
79847-01 Plug, Atom (Standard installed in applicator)
43 79881-00 Gasket, Exhaust, Wrap-Around 1
44 79836-00 Gasket, Exhaust 1
45 79843-00 Assembly, Exhaust Housing 1
46 79805-00 Screw 3
47 79793-00 Jam Nut Removal/Seal Install Tool 1
48 74133-00 Wrench, Needle Shaft 1
49 79529-00-K5 Applicator Cover 1
50 LSCH0009-00 Dielectric Grease 1
51 79642-00 Cap Removal Tool 1
52 79862-01, 02, -03 Hex Driver (2.5mm, 3mm, and 4mm) Wrench, 1
Vector Solo AA90
53 79854-00 (Packing Adjust, Barrel Removal, Nozzle Removal) 1
54 79676-00 Wrench, Nozzle Removal 1
55 Table "E" Fluid Hose (Not Shown) 1
56 LSOR0005-17 O-Ring, Teflon Encapsulated 1
57 79869-00 Stem, Male QD (Included With QD Ordered Models) 1
Item #
VECTOR SOLO AA90 SOLVENTBORNE APPLICATOR -
PARTS LIST (Cont.)
(Figure 80)
Part # Description Qty
3
3 2
5
1
4
