Vector Solo AA90 Applicators - Maintenance
Ransburg
31 AH-08-04.2

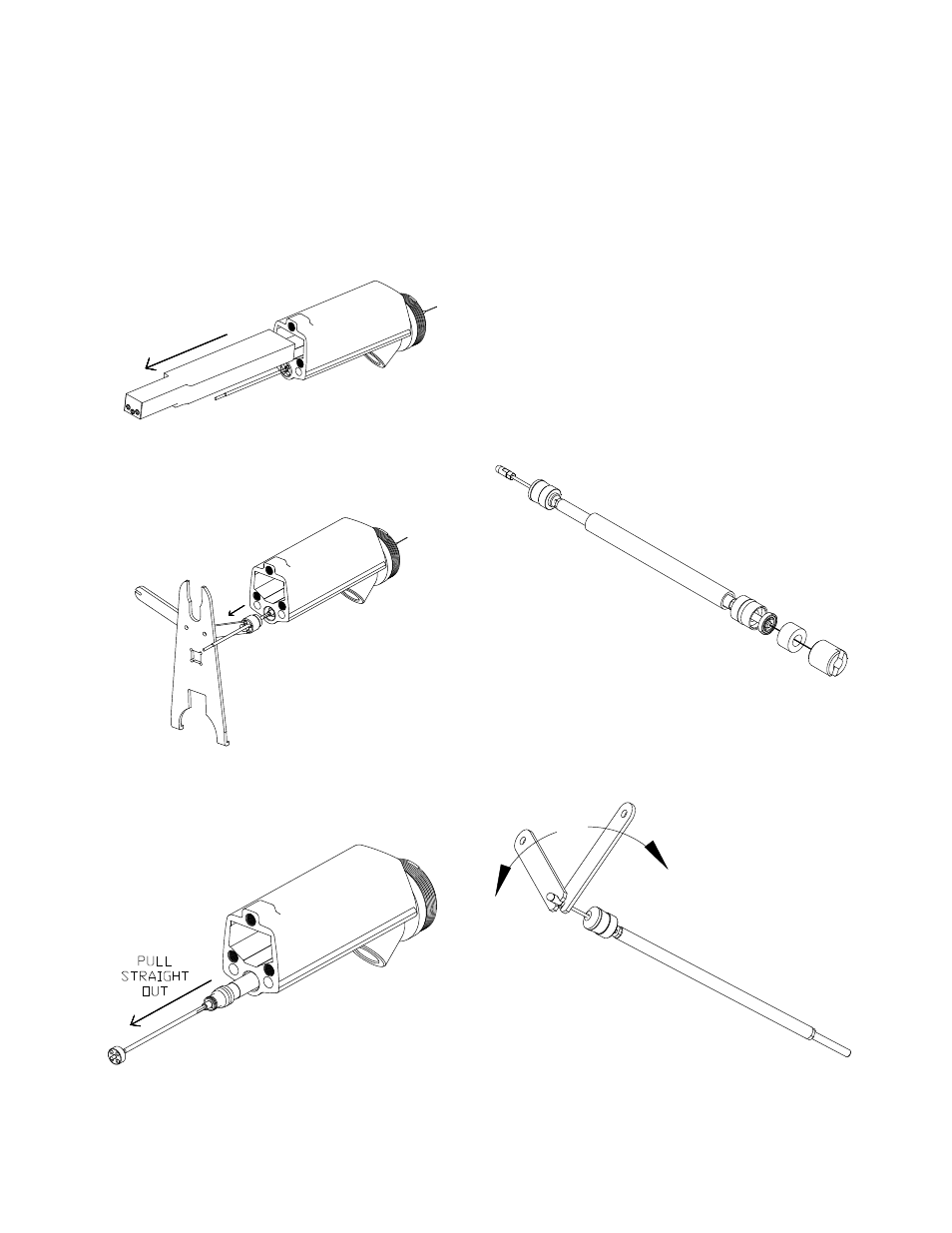

Figure 41: Needle Shaft Packing Replacement
5. Clean cavity with non-metallic brush and
non-polar solvent.
6. Replace needle components as required. (See
"Needle Shaft Parts List" in the "Parts Identification"
section for breakdown.)
Needle Shaft Packing
Replacement
1. Pull all rear seal parts off shaft. Replace
components as required.
2. Using two (2)74133 tools, remove carbide ball
and jam nut. Remove packing components.
Figure 42: Needle Shaft Packing Replacement
Figure 39: Needle Shaft Removal
3. Remove rear nut using the 79854-00 Special
Wrench.
NEEDLE SHAFT
REMOVAL/REPLACMENT
1. Remove barrel from the handle using previous
steps.
2. Remove cascade.
Figure 38: Cascade Removal
Figure 40: Needle Shaft Removal
4. Attach a jam nut to the assembly and pull straight
out of the barrel.
