Vector Solo AA90 Applicators - Installation
Ransburg
14 AH-08-04.2
INSTALLATION
1. Ensure there is a true earth ground connection
available.
† Both the fluid source and the air hose
ground must be connected to true earth ground.
W A R N I N G !
2. Connect the fluid source to true earth ground.
3. Ensure electrostatic On/Off lever is in the Off
position.
4. Connect the air hose ground wire to true earth
ground.

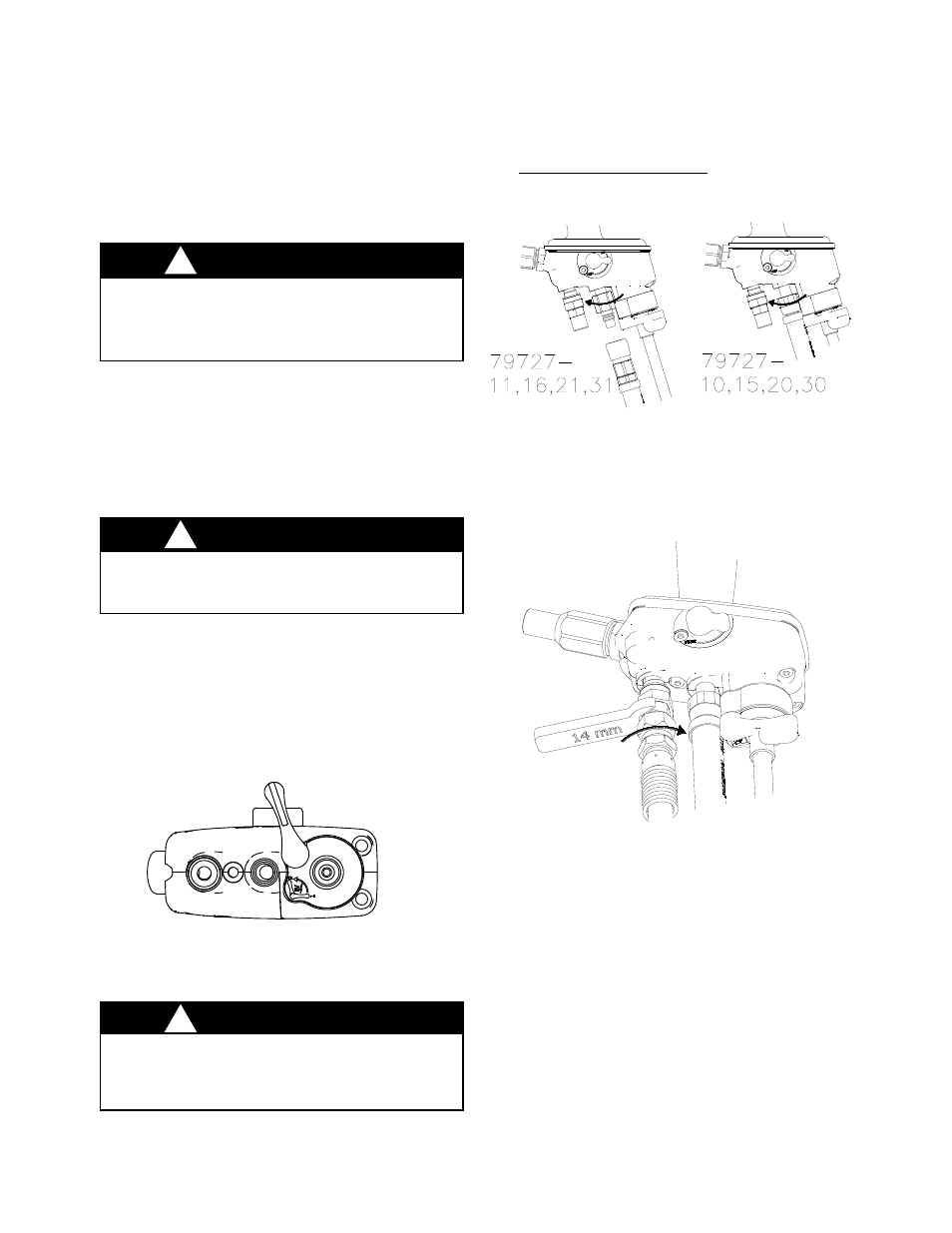

Figure 3: Voltage Off Lever Position
(Bottom View)
5. Connect the air hose or qd stem to the applica-
tor, thread is left hand pitch, counter-clockwise
to tighten.
Figure 4: Air Hose Connection
Figure 5: Fluid Hose Connection
Interlocks Required
Interlock the solvent supply with the main supply
air to the applicator. When solvent is On, main
supply air to the applicator is Off. Interlocks are
user supplied.
† The solvent supply must be interlocked
with applicator supply air. Supply air must be
off to the applicator when solvent supply is on.
W A R N I N G !
† It is the end users responsibility to insure
the ground end of the 79727-XX air hose is
connected to true earth ground.
W A R N I N G
!
6. Connect fluid hose from grounded fluid source
using a mwrench on the flats, tighten fluid hose.
7. Trigger the applicator with fluid off. Look for
air leaks in any connections.
8. Activate fluid, check for leaks with solvent. Flush
if required. (See "Operation" section for sequence.)
C C W C C W
C W
