Ransburg, Vector solo aa90 applicators - maintenance – Ransburg Vector Solo AA90 79698 User Manual
Page 32

Vector Solo AA90 Applicators - Maintenance
Ransburg
28
AH-08-04.2
5. Remove the two (2) jam nuts using the 79793-
00 Removal Tool while holding the needle shaft
with the 79793-00 Special Wrench.

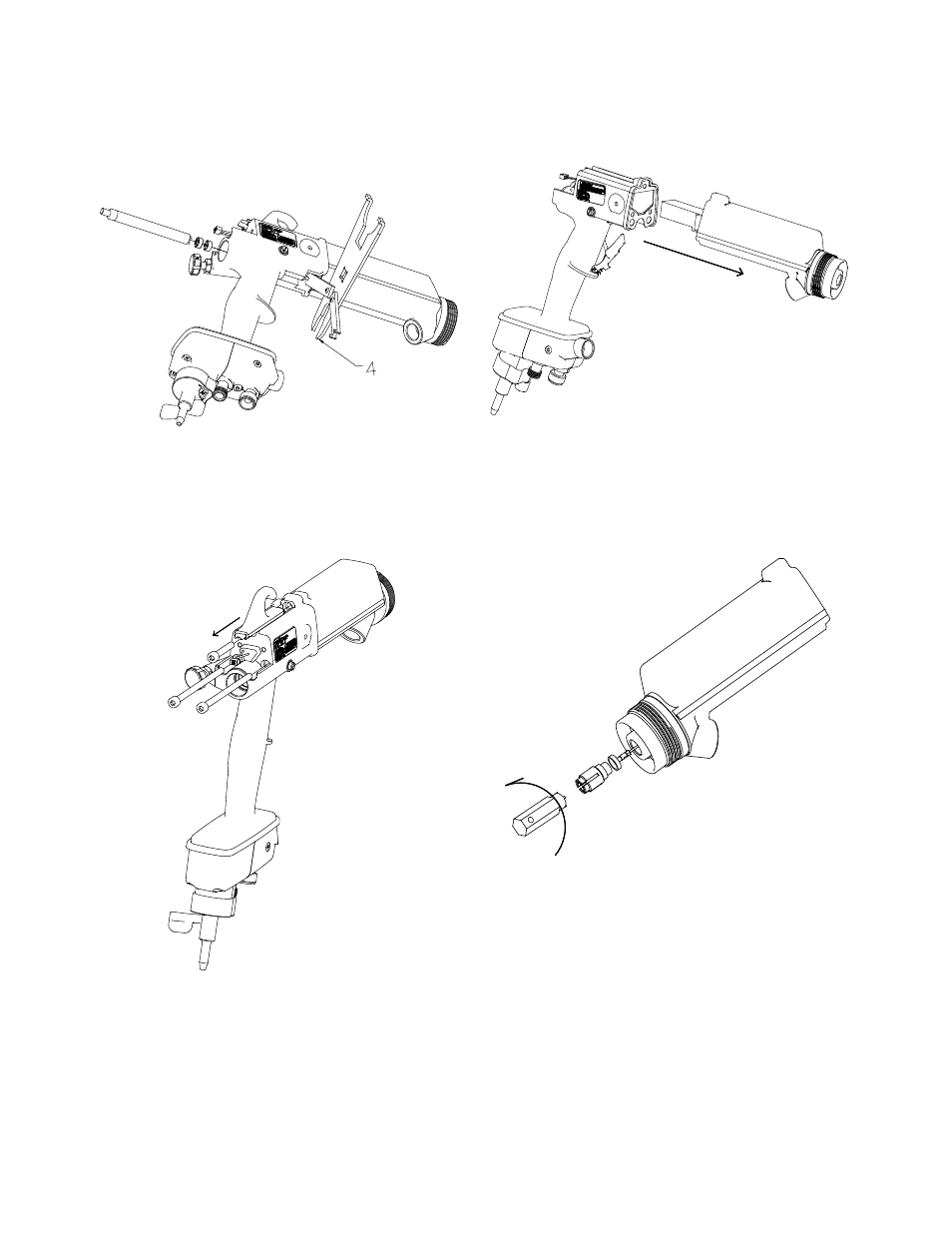

Figure 26: Jam Nut Removal
6. Remove three (3) 5mm screws using a 4mm
Allen wrench. Remove the hook.
Figure 27: Barrel Screw Removal
7. Pull the barrel straight away from the handle.
8. Using 79676 wrench, remove nozzle and gasket.
When removing, be sure to keep the drive teeth
of the tool engaged in the slots of the nozzle.
Figure 29: Fluid Nozzle and Gasket Removal
Figure 28: Barrel Removal
