Vector Solo Applicators - Parts Identification
51
Ransburg

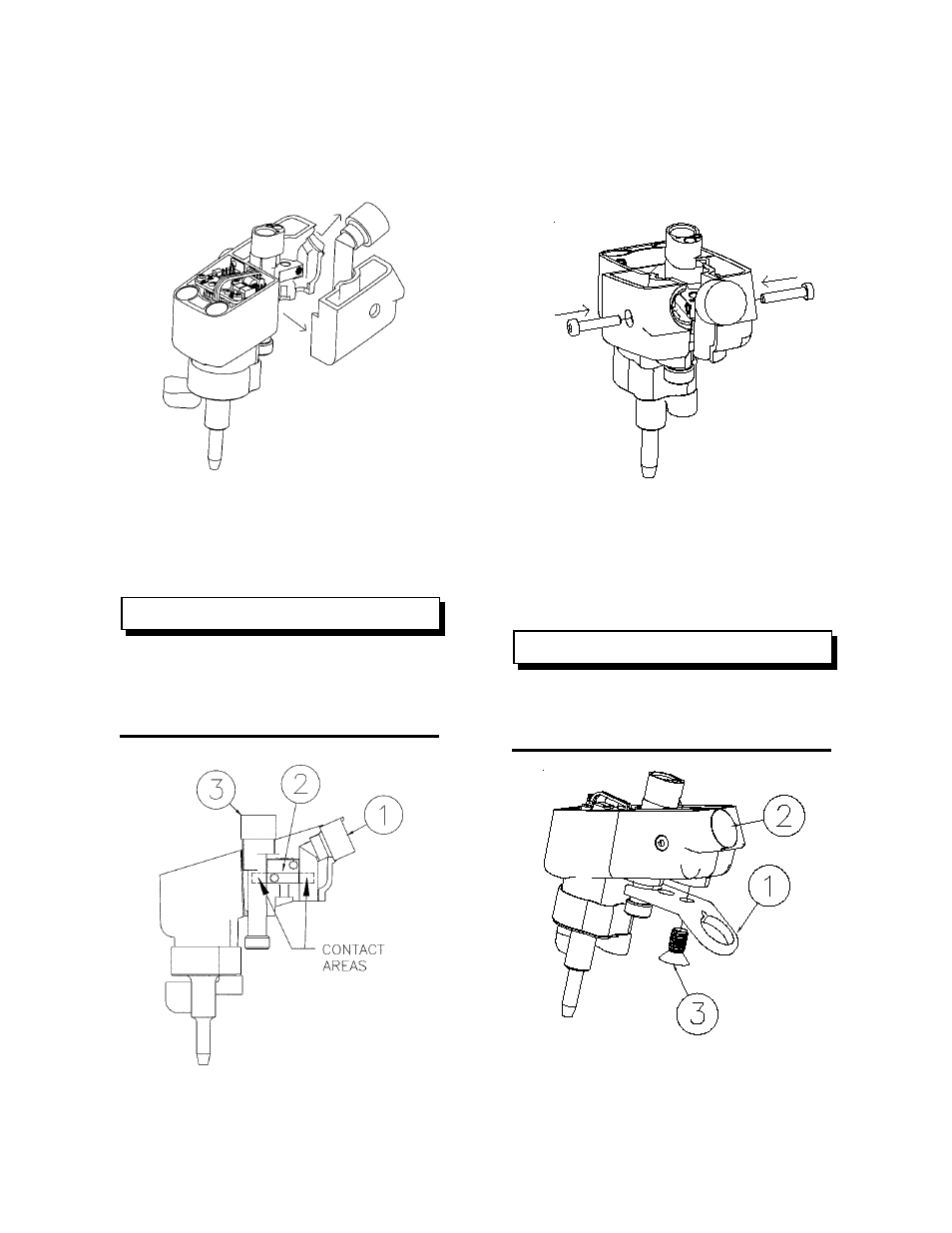

Figure 90: Remove Fluid Fitting
3. Pull apart the two pieces of the power module
and remove the fluid fitting.
Figure 91: Install New Short Stopper Fitting
Ensure the ground strap [2] is installed
in the power module and makes contact
with the new short stopper fitting [1] as well
as the air fitting [3].
NOTE
5. Place the two power module pieces together
and re-install the two (2) screws in sides of the
power module.
Figure 92: Install Screws
6. Install the hose bracket [1] onto the new short
stopper fitting [2] using the bracket nut [3].
Make sure to align the notch on the new
short stopper fitting [2] with the groove on
the hose bracket [1].
NOTE
Figure 93: Install Bracket and Nut
4. Install the new short stopper fitting [1].
AH-08-01.10
