Vector Solo Applicators - Installation
14
Ransburg
AH-08-01.10
1. Ensure there is a true earth ground connection
available.
† Both the fluid source and the air hose
ground must be connected to true earth
ground.
W A R N I N G !

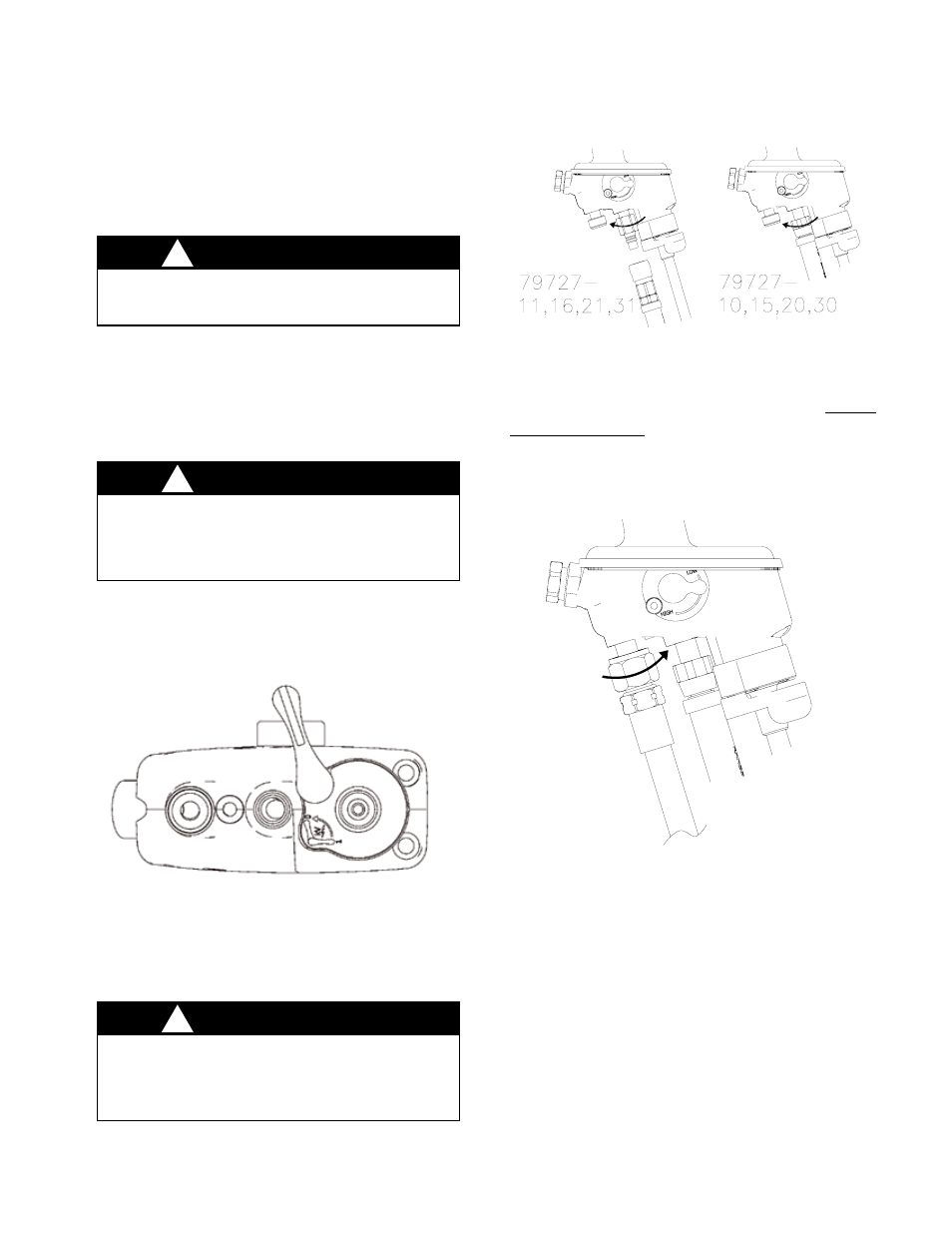

Figure 3: Voltage Off Lever Position
(Bottom View)
Figure 4: Air Hose Connections
Figure 5: Fluid Hose Connection
Interlocks Required
Interlock the solvent supply with the main supply
air to the applicator. When solvent is On, main
supply air to the applicator is Off. Interlocks are
user supplied.
† The solvent supply must be interlocked
with applicator supply air.
W A R N I N G !
INSTALLATION
2. Connect the fluid source to true earth ground.
3. Ensure electrostatic On/Off lever is in the Off
position.
4. Connect the air hose ground wire to true earth
ground.
7. Trigger the applicator with fluid off. Look for air
leaks in any connections.
8. Activate fluid, check for leaks with solvent.
Flush if required. (See "Operation" section for
sequence.)
C W
C C W C C W
5. Connect the air hose to the applicator, thread
is left hand pitch, counter-clockwise to tighten.
6. Connect fluid hose from grounded fluid source.
† It is the end users responsibility to insure
the ground end of the 79727-XX air hose is
connected to true earth ground.
W A R N I N G !
