Vector Solo Applicators - Parts Identification
45
Item #
79853-00 NEEDLE SHAFT - PARTS LIST (Figure 78)
Part # Description Qty

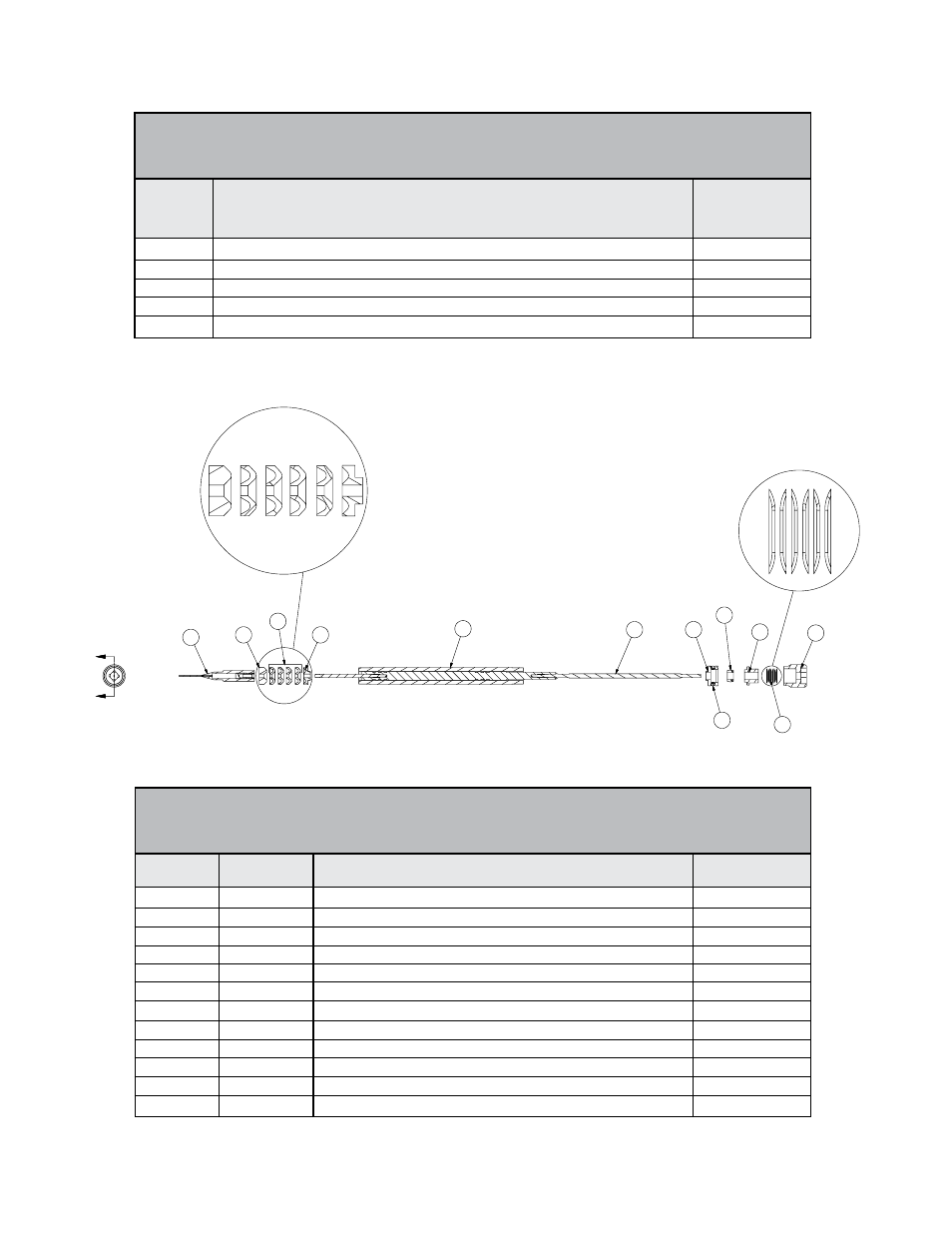

Figure 78: 79853-00 Needle Shaft With 2k Adjustable Packings
0 No Fluid Hose --
1 Fluid Hose, 10m (33 ft.) 79548-10
2 Fluid Hose, 15m (49 ft.) 79548-15
3 Fluid Hose, 20m (60 ft.) 79548-20
4 Fluid Hose, 30m (99 ft.) 79548-31
E
Dash #
TABLE E - FLUID HOSE SELECTION
"E" Description
Ransburg
1 70430-01 Electrode, High Wear 1
2 74653-00 Adapter, Male Chevron 1
3 14323-00 Seal, 3/8" Diameter Chevron 4
4 18821-00 Adapter, Female Chevron 1
5 18842-01 Tube, Packing 1
6 79747-00 Assembly, Needle Shaft, Solo 85KV 1
7 78629-00 Retainer, Needle Seal, Rear 1
8 79001-06 O-Ring, Solvent Proof 1
9 10051-05 Cup Seal, Spring Loaded 1
10 78630-00 Spacer, Seal 1
11 17390-04 Washer, Spring, Belville 6
12 78631-00 Nut, Packing 1
A
A
SECTION A-A
2
3
4
5 6
8
7
9
10 12
1
11
AH-08-01.10
