Vector Solo Applicators - Maintenance
34

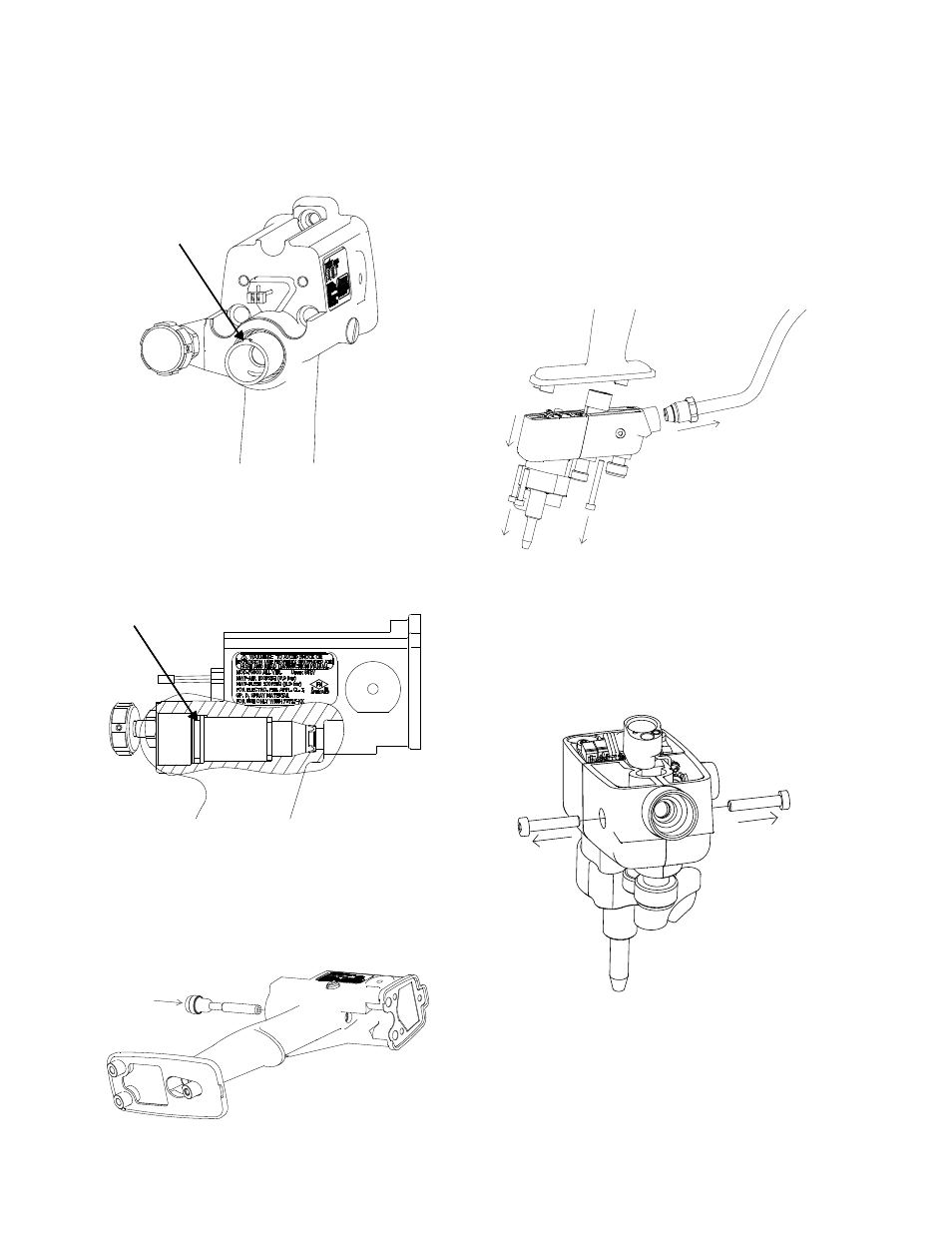

Figure 57: Fluid Fitting Removal
Power Module - Fluid Fitting Removal
1. Remove power module from handle.
4. Install the rear seal.
5. Install air valve.
Figure 54: Rear Cartridge Seal Replacement
Figure 55: Air Valve Replacement
Figure 56: Power Module Removal
2. Remove two (2) screws using a 2.5mm Allen
wrench.
Figure 53: Air Valve Cartridge Alignment
3. Install the air valve cartridge. Align the cartridge
with tab at 12 o'clock posiition.
6. Reinstall barrel.
7. Install power module.
