Handle disassembly, Ransburg, Vector solo applicators - maintenance – Ransburg Vector Solo 79900 Solventborne RS90-AS User Manual
Page 36
Vector Solo Applicators - Maintenance
32
4. Remove the rear seal.

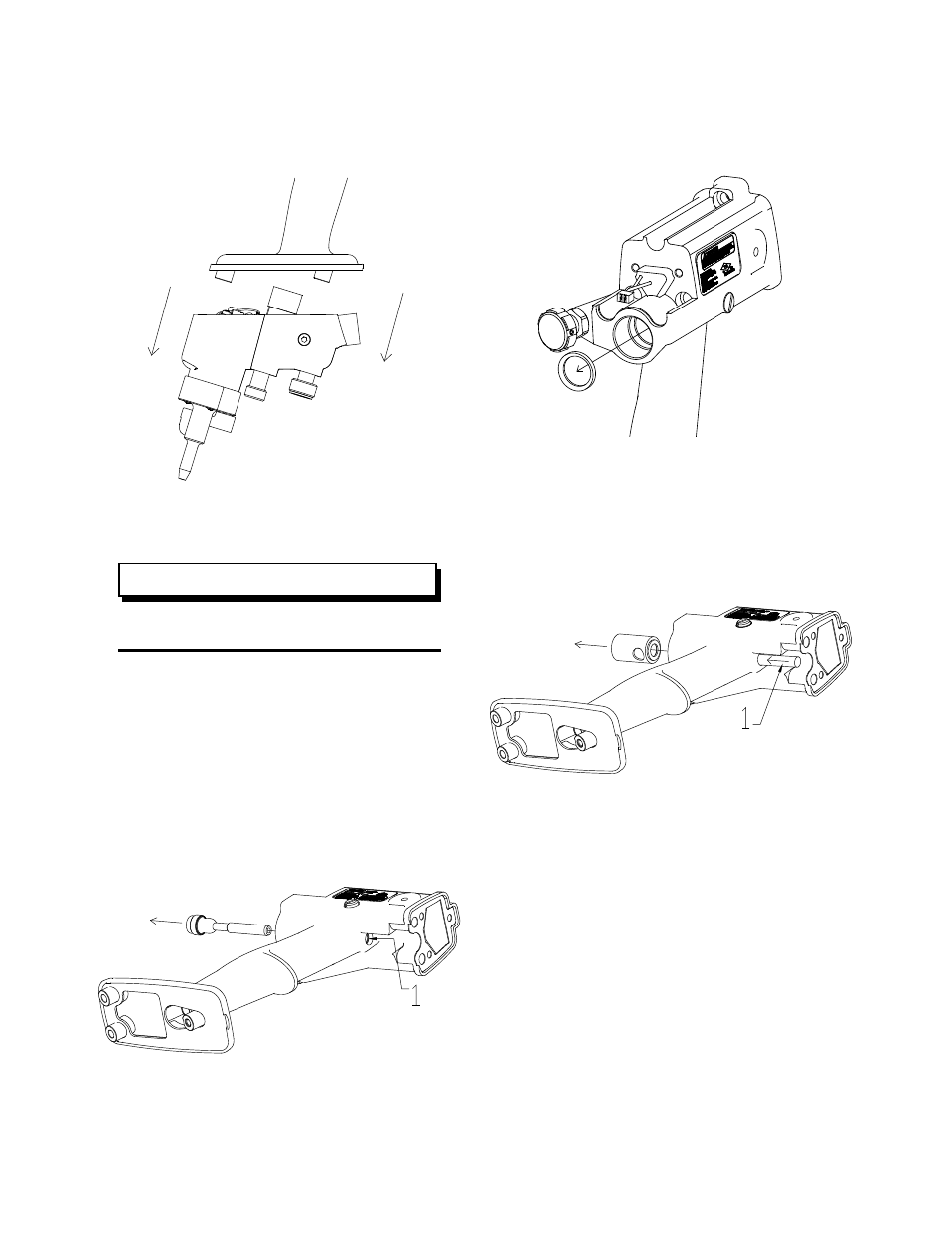

Figure 48: Rear Seal Removal
5. Using a dowel rod, push out the air valve
cartridge.
Figure 49: Air Valve Cartridge Removal
Figure 47: Air Valve Removal
Handle Disassembly
1. Remove barrel.
2. Remove power module.
3. Push air valve out.
Figure 46: Power Module Removal
The power modules are not serviceable.
NOTE
1 - Push Out From Here
1 - 6mm (1/4") Dowel
3. Pull the module straight off the handle.
Ransburg
AH-08-01.10
