Vector Solo Applicators - Maintenance
33
6. Remove air valve cartridge seal (black) (see
Figure 48).
7. Remove front air valve seal (white).

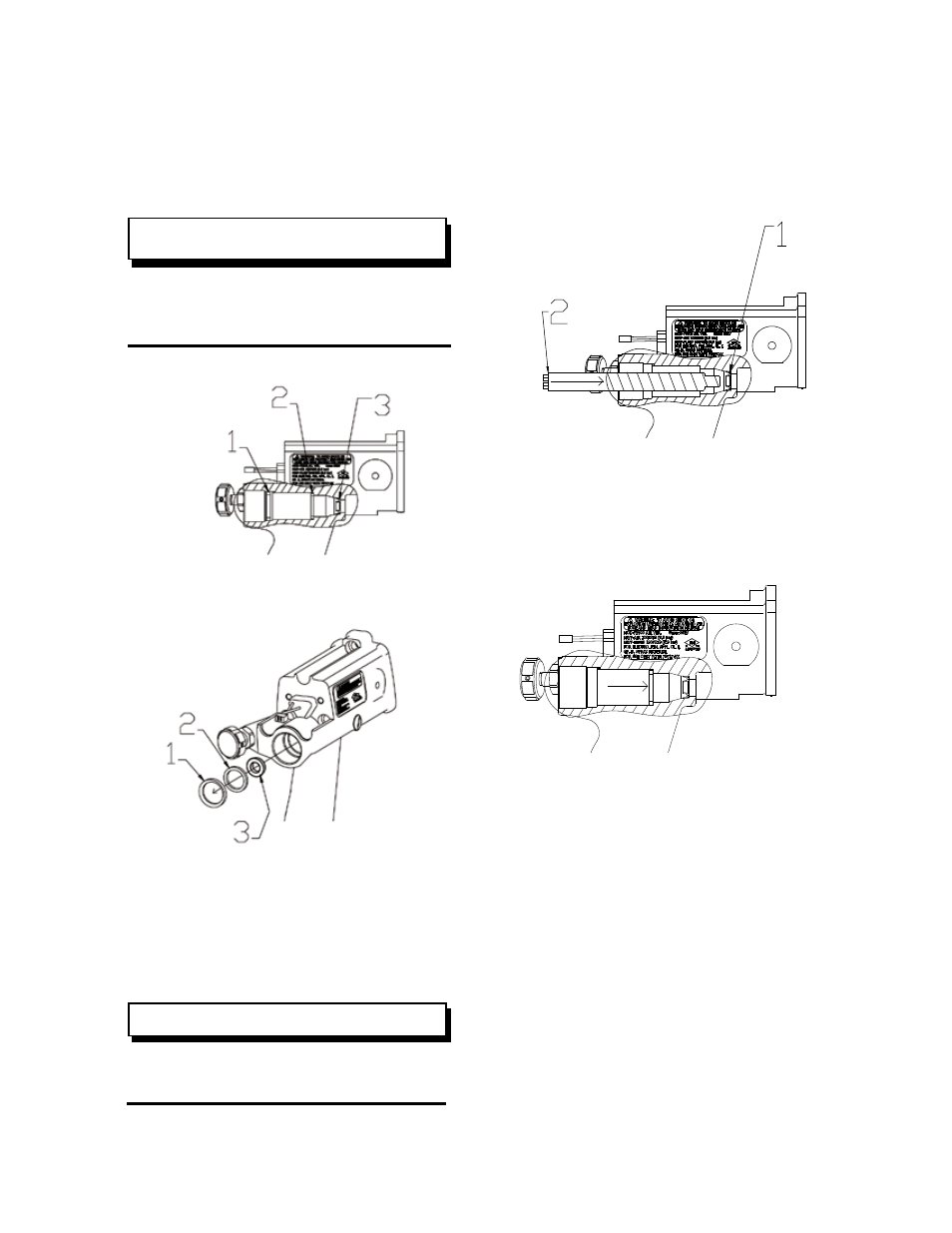

Figure 50: Air Valve Cartridge Seal and Front
Seal Removal
Figure 52: Cartridge Seal Replacement
2. Install the air valve cartridge seal.
Figure 51: Air Valve Seal Replacement
† If you remove the air valve seal, it is
highly recommended that it is replaced.
NOTE
Handle Rebuild
1. Install the front air valve seal using the Special
Tool.
1 - Rear Seal
2 - Air Valve Cartridge Seal
3 - Front Air Valve Seal
1 - 79793-00 Jam Nut Tool
2 - Front Air Valve Seal - Concave Side to Tool
† Only remove the front air valve seal
(item 3) if there is damage or wear to the
seal causing leakage.
NOTE
