Vector Solo Applicators - Maintenance
27
4. Remove the trigger and fluid line.

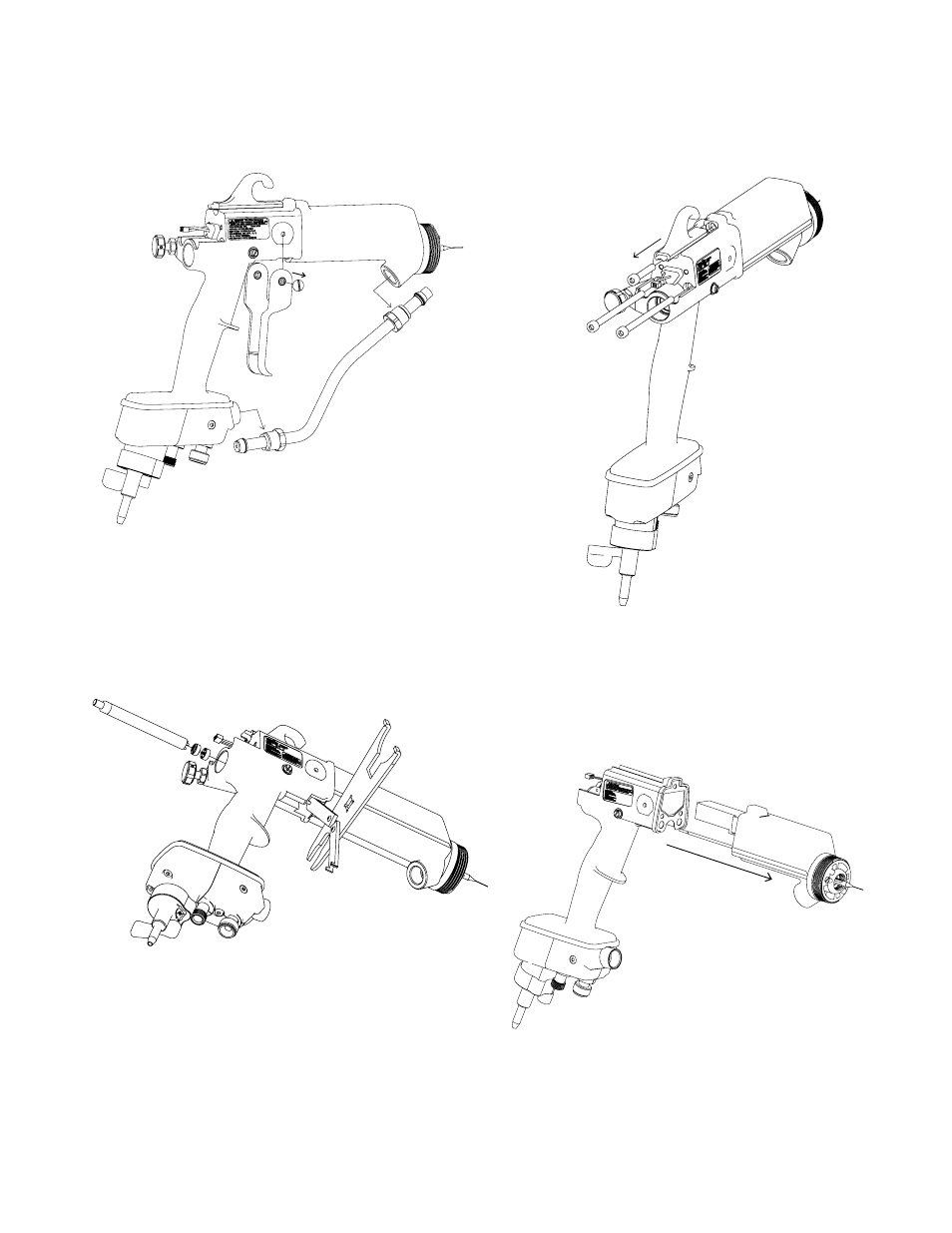

Figure 26: Fluid Line/Trigger Removal
5. Remove the two (2) jam nuts using the 79793-
00 Removal Tool while holding the needle shaft
with the 79854-00 Special Wrench.
Figure 27: Jam Nut Removal
6. Remove three (3) 5mm screws using a 4mm
Allen wrench. Remove the hook.
Figure 28: Barrel Screw Removal
7. Pull the barrel straight away from the handle.
Figure 29: Barrel Removal
