Vector Solo Applicators - Maintenance
31
2. Tighten rear nut using Special Wrench 79854-
00. Tighten until drag is felt on the shaft when it
is pushed back and forth.

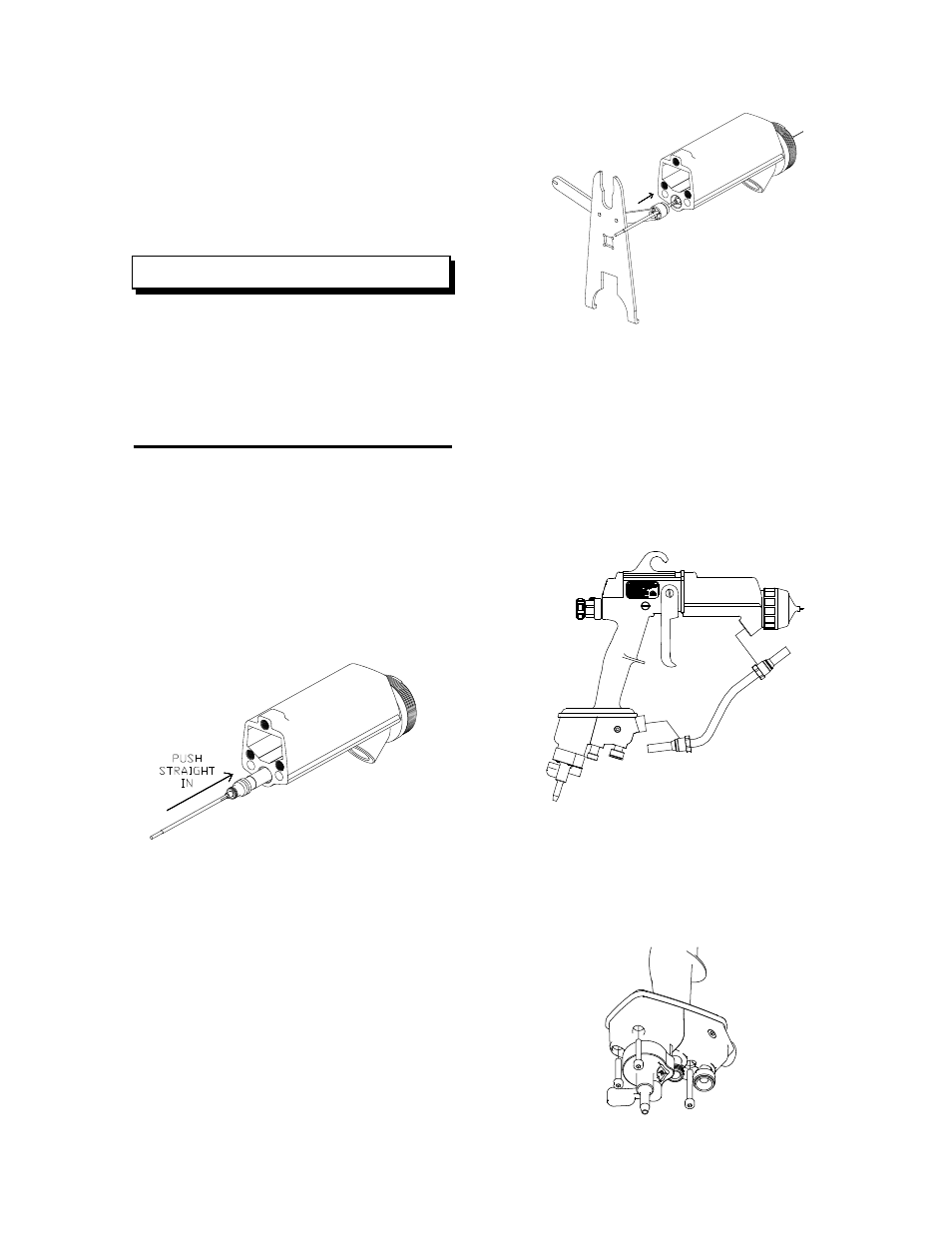

Figure 43: Adjustable Needle Shaft
Reinstall Needle Shaft / Barrel
1. Push needle shaft assembly straight into the
barrel. Apply LSCH0009-00 Dielectric Grease.
Figure 42: Needle Shaft Replacement
Figure 45: Power Module Removal
3. Reinstall cascade.
4. Reinstall barrel to handle.
Power Module Removal
1. Remove the fluid line
Figure 44: Fluid Line Removal
† Be generous with the dielectric grease
when applying it to the packing tube and
needle shaft. This helps to remove air
voids from this chamber. DO NOT apply
so much grease that it creates an air lock
during assembly of the applicator.
NOTE
2. Remove three (3) bolts using a 3mm Allen
wrench.
5. With your finger, wipe the excess grease from
both ends of the packing tube. Using the excess
grease, apply a thin film to the outer surface of
the packing tube and to the external o-ring on the
cartridge seal.
6. Apply a light film of dielectric grease to the seal
retainer o-ring and install it into the external groove.
