Vector Solo Applicators - Maintenance
23
1. Remove applicator from the worksite after fol-
lowing the "Flush Procedure".
2. Remove fluid hose at base of applicator.

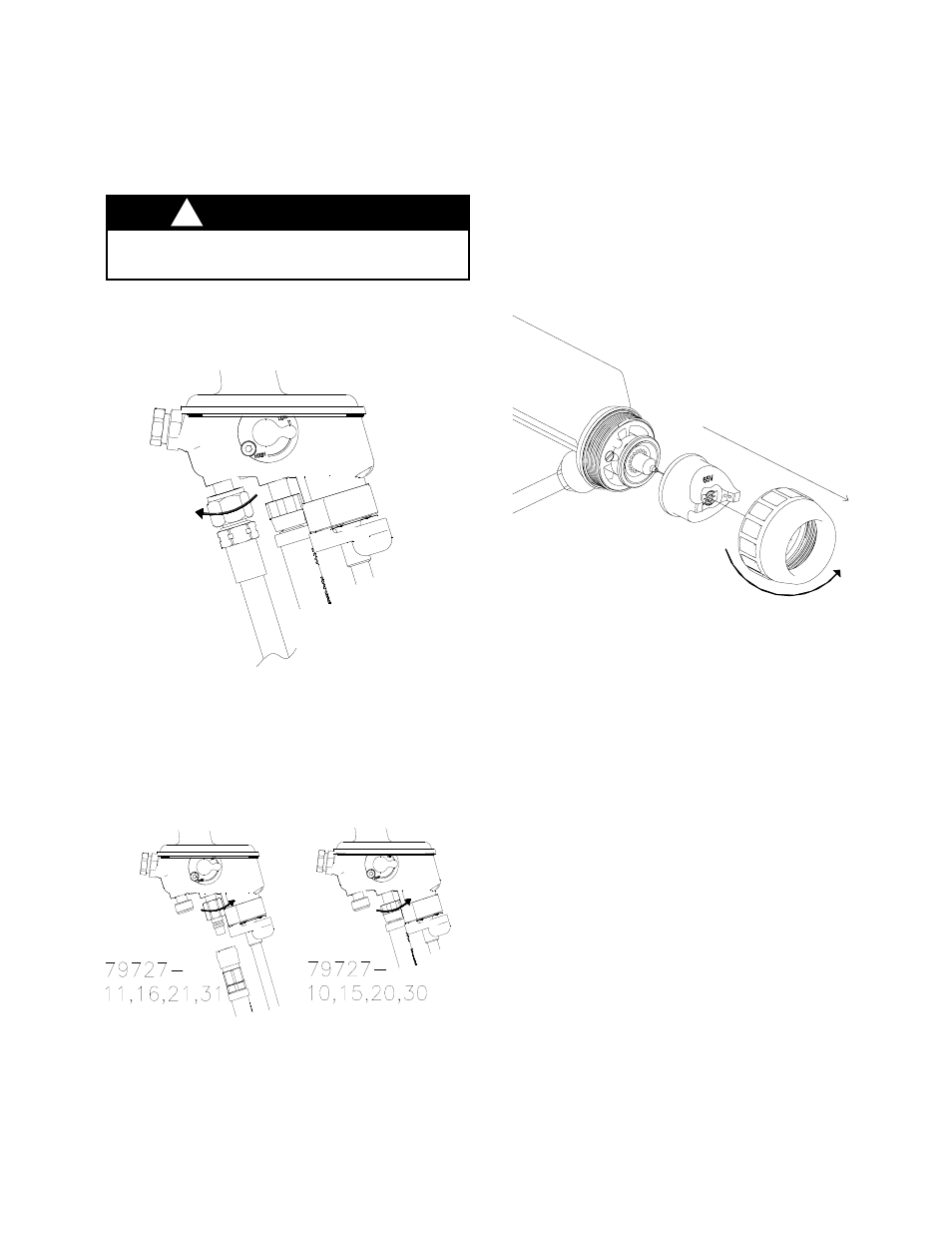

Figure 16: Counter-Clockwise to Remove
Fluid Hose
Figure 17: Clockwise to Remove Air Hose
AIR CAP
Removal
1. While holding the barrel with one hand, loosen
the retaining nut using the other hand.
2. Unscrew the retaining nut completely and
remove the air cap.
Figure 18: Air Cap Removal
Cleaning and Inspection
1. Use a suitable solvent to clean the air cap.
(Refer to "Suitable Solvents for Cleaning Vector
Solo Applicators" in the "Maintenance" section.)
2. Examine the air cap for damage to the air
horns, face, and any air passages. If any of these
areas are damaged or worn, the air cap should
be replaced.
Reinstall
1. Check the fluid nozzle to ensure that it is tightly
screwed into the barrel.
2. Place the air cap over the electrode wire of the
needle/electrode and set it onto the fluid nozzle.
3. Place the retaining nut over the air cap and
begin screwing it onto the barrel.
4. Before securing the retainer nut to the barrel,
position the air cap for the desired spray pattern.
† Ensure all pressure has been bled from
the fluid and air line prior to disconnection.
W A R N I N G !
3. Remove air hose at base of applicator.
C C W
C W C W
C C W
Ransburg
AH-08-01.10
