Vector Solo Applicators - Introduction
11

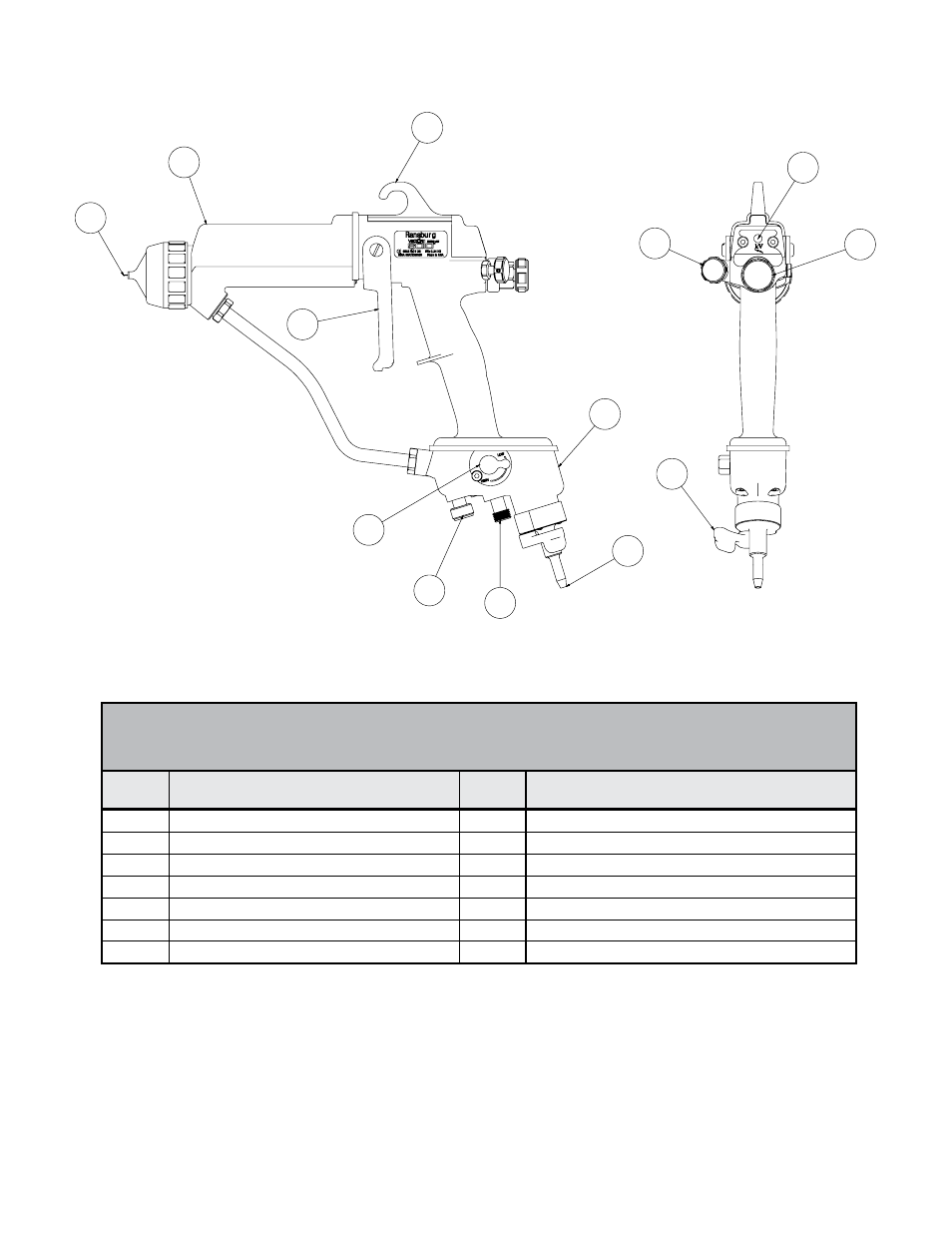

Figure 1: Vector Solo Solventborne Electrostatic Spray Applicator
1
2
3
4
5
6
7
No.
Description
Needle/Electrode
Barrel
Replaceable Hook
Fan Air Adjustment
Fluid Needle Travel Adjustment
Fluid Hose Connection
Air Inlet Connection
VECTOR SOLO SOLVENTBORNE ELECTROSTATIC
SPRAY APPLICATOR
8
9
10
11
12
13
No.
Description
kV Setpoint Switch
Voltage On/Off Indicator Light
Trigger
Turbine Air Exhaust
Voltage On/Off Lever
Power Module
Ransburg
13
4
5
1
2
3
6
7
8
9
10
11
12
AH-08-01.10
