H90-5200-A
RS 232
DB25
(9 Pin AMP) MALE
TM - U295 TM - U590 SP 2000 SP 2200 610
ENA = 1 - - - -
PNTR - - - -
FUNC - 3 -1 TDI* - - - -
GTN* - - - -
CRLF - - - -
SELCH1 - - - -
B = 9600 - B = 2400 - -
STOP = 1 - - - -
FUNC - 3 - 7 P = NONE - - - -
CHAR = 8 - - - -
CTS = 0 - - - -
FUNC - 3 - 0 ECHO = 0 - - - -
AC = 0 - - - -
* = Multiple Selections Available
NOTE: Horizontal dash indicates same setting as to the left
50515 48 Issue #2 4/04

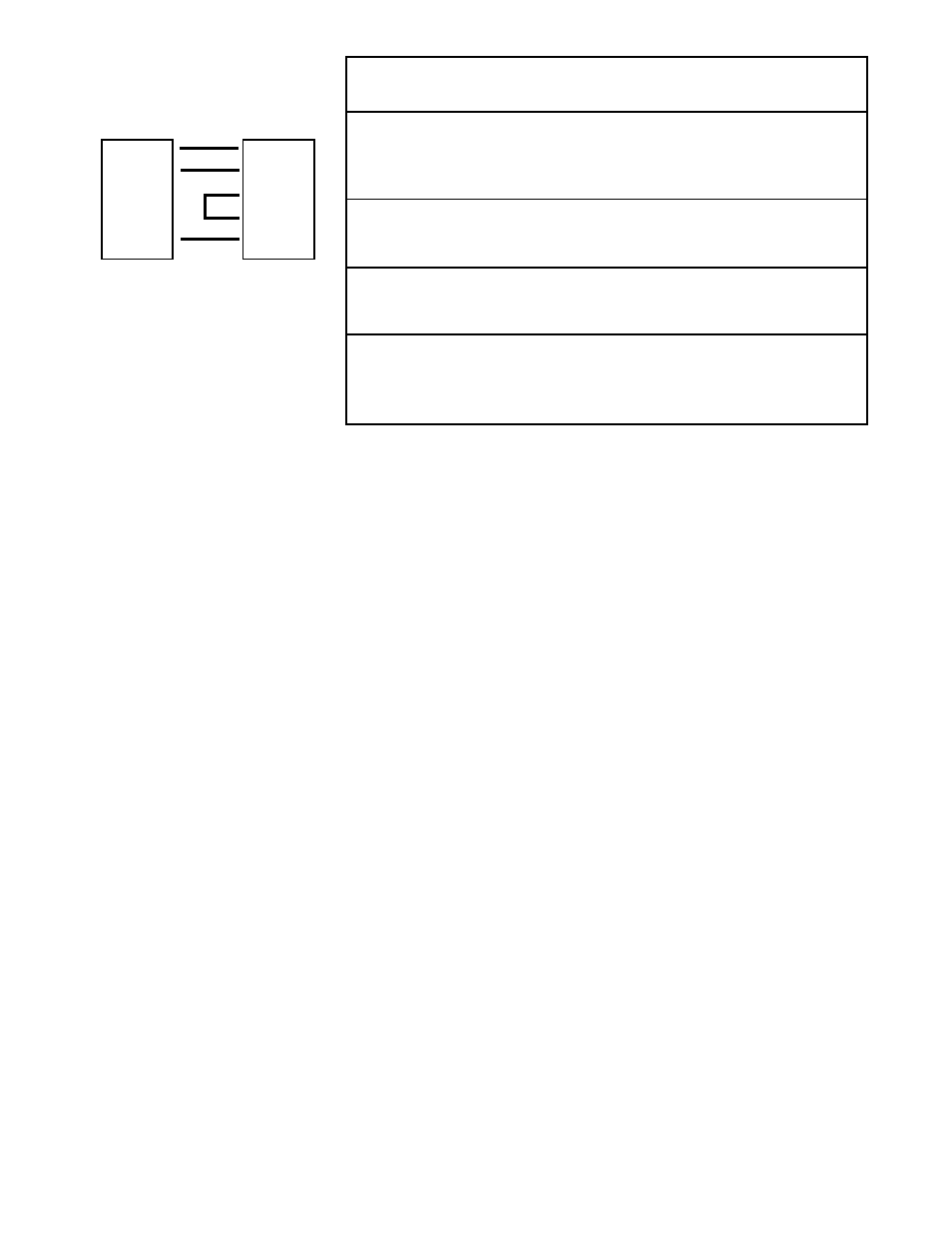

RX 5
TX 4
SG 8
2 TX
3 RX
4 RTS
5 CTS
7 SG
TM - U295 SW-1 = 1 & 3 ON
(ON = Away from Numbers)
TM - U590 DSW-1 = 7 ON
DSW-2 = ALL OFF
(ON = Away from Numbers)
SP 2000 SW-2 = 3 ON (ON = Down)
SW-1 & SW-3 = ALL OFF
SP2200 SW-1 = 2, 3, 8 ON (ON = Down)
SW-2 & SW-3 = ALL OFF
610 SW-1 = 0 (Rotary Sw)
SW-4 = 2, 4, & 6 ON (DIP SW)
(ON = Towards Numbers)
