3.2.1. FRONT PANEL
Figure 3-1 shows the analyzer’s front panel layout, followed by a close-up of the display screen in
Figure 3-2, which is described in Table 3-2. The two USB ports on the front panel are provided for the
connection of peripheral devices:
 plug-in mouse (not included) to be used as an alternative to the touchscreen interface
 thumb drive (not included) to download updates to instruction software (contact TAPI Customer
Service for information).

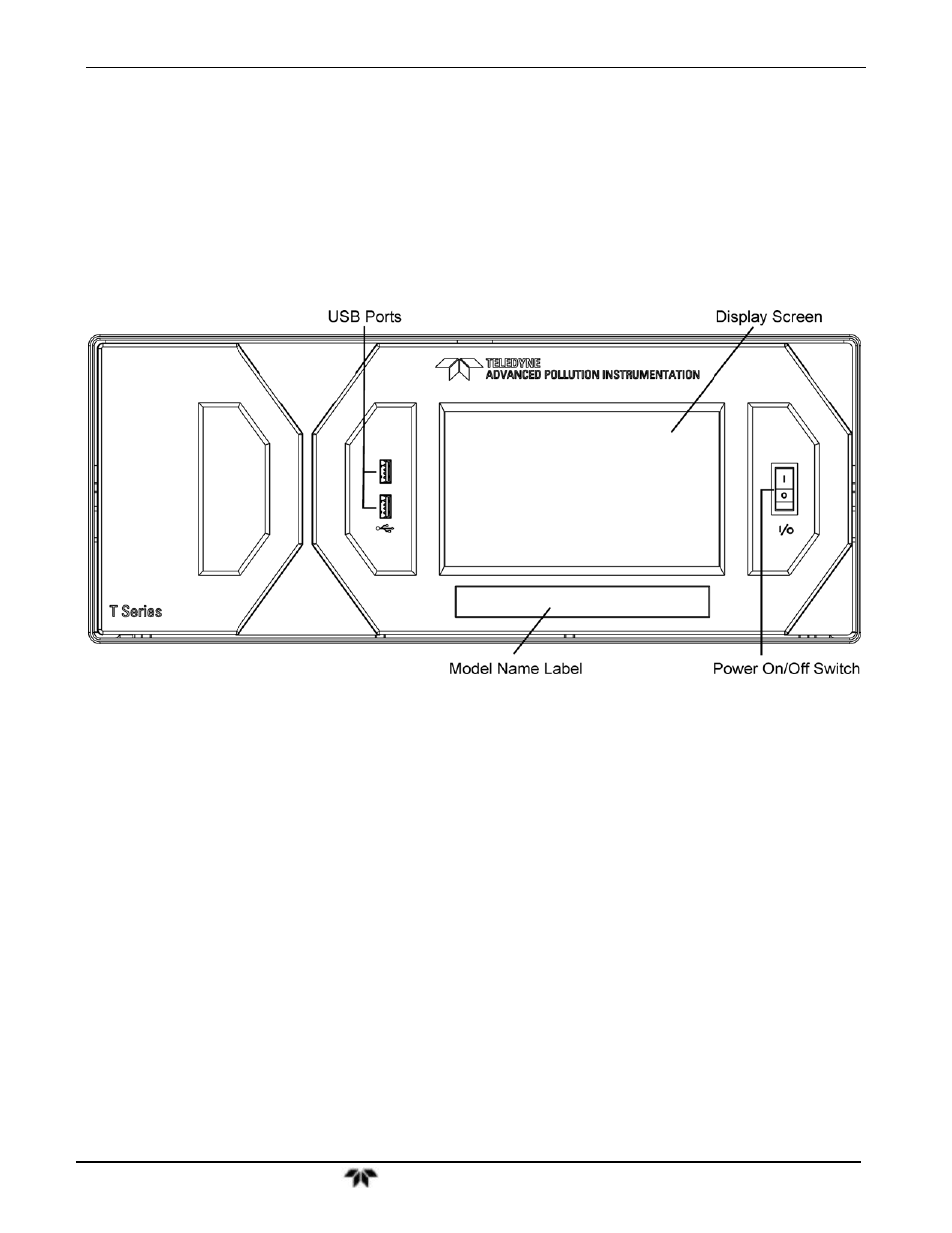

Figure 3-1: Front Panel Layout
