Model 9110T NOx Analyzer Setup Menu
Teledyne Analytical Instruments 100
EXAMPLE:
 NO
x
Concentration – RANGE1 Set for 0-800 ppb & output A1 set for 0-10 VDC
 NO Concentration – RANGE2 Set for 0-200 ppb & output A2 set for 0-5 VDC
 NO
2
Concentration – RANGE3 Set for 0-400 ppb & output A3 set for 0-5 VDC
Setting analog range limits to different values does not affect the instrument’s calibration.
To select the IND range mode, press the following buttons:
Concentration field
displays all gases.

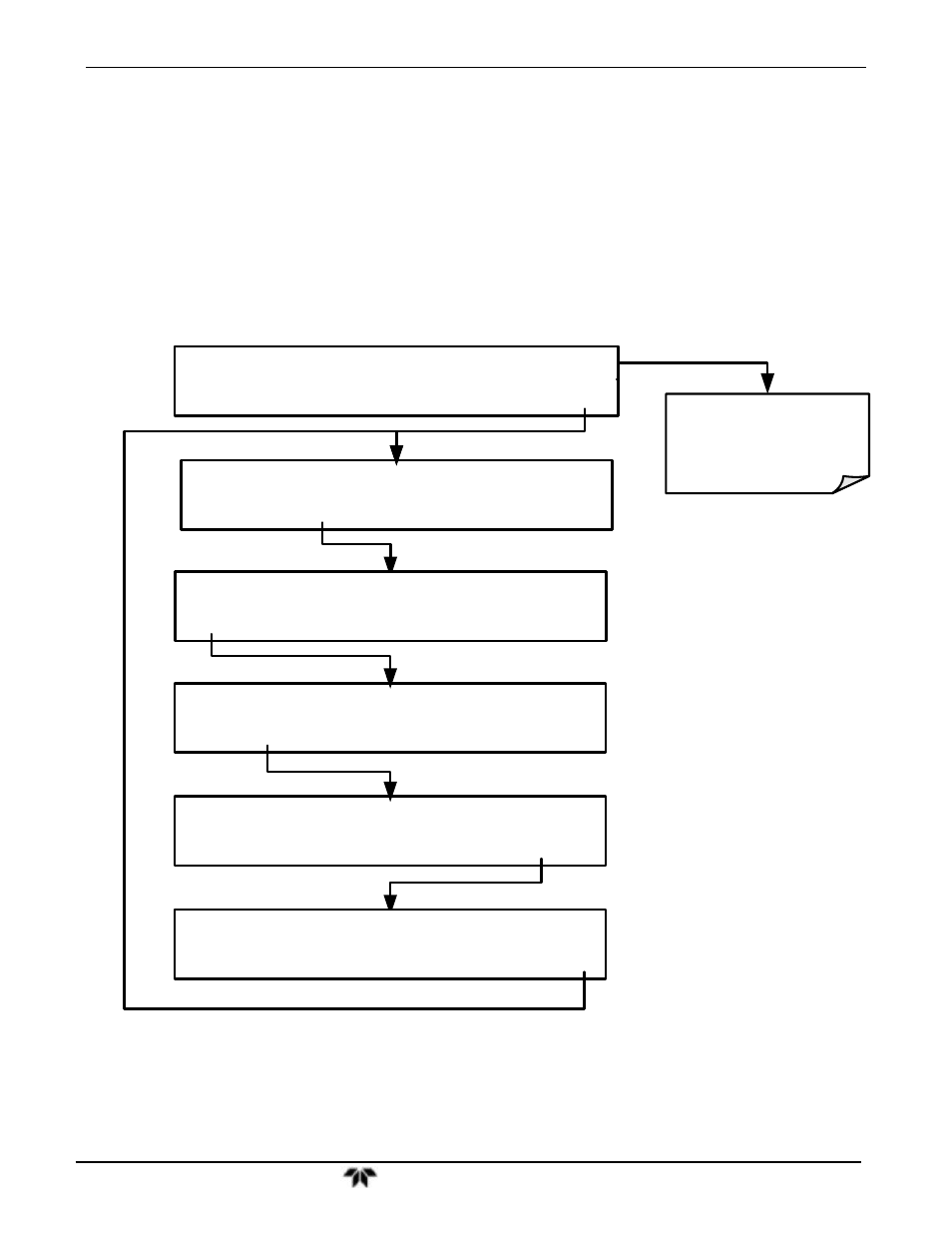

SAMPLE RANGE=500.0 PPM NOX= XXXX
TST> CAL SETUP
SETUP X.X PRIMARY SETUP MENU
CFG DAS RNGE PASS CLK MORE EXIT
SETUP X.X RANGE MODE MENU
MODE SET UNIT DIL EXIT
SETUP X.X RANGE MODE:SNGL
SNGL IND AUTO ENTR EXIT
SETUP X.X RANGE MODE:IND
SNGL IND AUTO ENTR EXIT
SETUP X.X RANGE MODE MENU
MODE SET UNIT DIL EXIT
