Teledyne 9110T - Nitrogen Oxides Analyzer User Manual
Page 148
Model 9110T NOx Analyzer
Communications Setup and Operation
Teledyne Analytical Instruments
148
Baud Rate: 115200
COM2 Mode Settings:
Quiet Mode
ON
Computer Mode
ON
MODBUS RTU OFF
MODBUS ASCII
OFF
E,8,1 MODE OFF
E,7,1 MODE OFF
RS-485 MODE OFF
SECURITY MODE
OFF
MULTIDROP MODE OFF
ENABLE MODEM
OFF
ERROR CHECKING ON
XON/XOFF HANDSHAKE
OFF
HARDWARE HANDSHAKE OFF
HARDWARE FIFO
ON
COMMAND PROMPT OFF

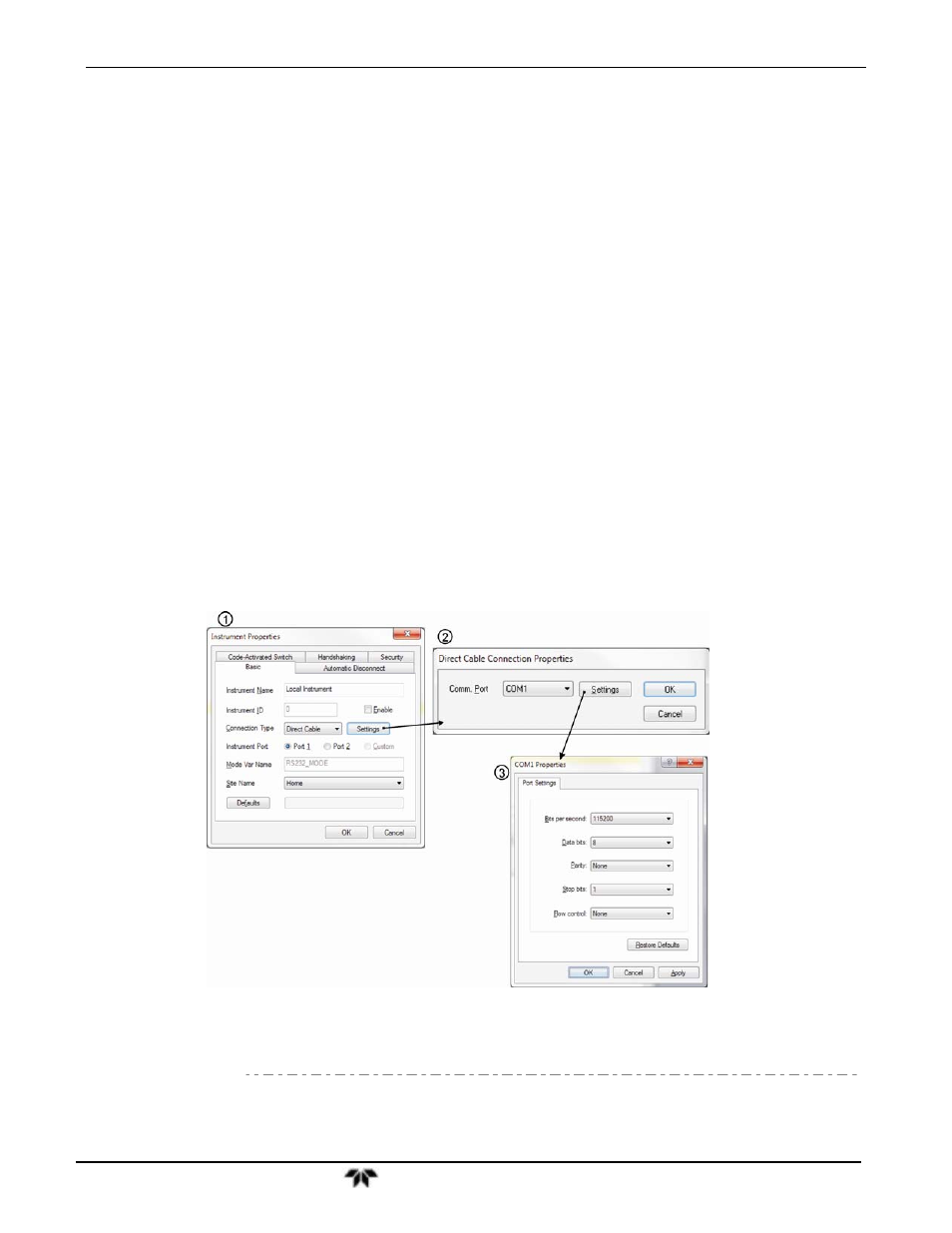

6. Next, configure your communications software, such as APIcom. Use the COM port determined in
Step 4 and the baud rate set in Step 5. The figures below show how these parameters would be
configured in the Instrument Properties window in APIcom when configuring a new instrument. See
the APIcom manual (PN 07463) for more details.
Note
USB configuration requires that the baud rates of the instrument and
the PC match; check the PC baud rate and change if needed.
