Teledyne 9110T - Nitrogen Oxides Analyzer User Manual
Page 150

Model 9110T NOx Analyzer
Communications Setup and Operation
Teledyne Analytical Instruments
150
Actions
MODBUS Poll software)
you wish to read from the analyzer).
b.
Input Quantity (based on your firware’s register map).
c.
In the View section of the Read/Write Definition window select a Display (typically Float
Inverse).
d.
Click OK.
2.
Next, click Connection/Connect.
a.
In the Connection Setup window (see example that follows), select the options based on
your computer.
b.
Press OK.
Read the Modbus Poll
Register
Use the Register Map to find the test parameter names for the values displayed (see example
that follows If desired, assign an alias for each.

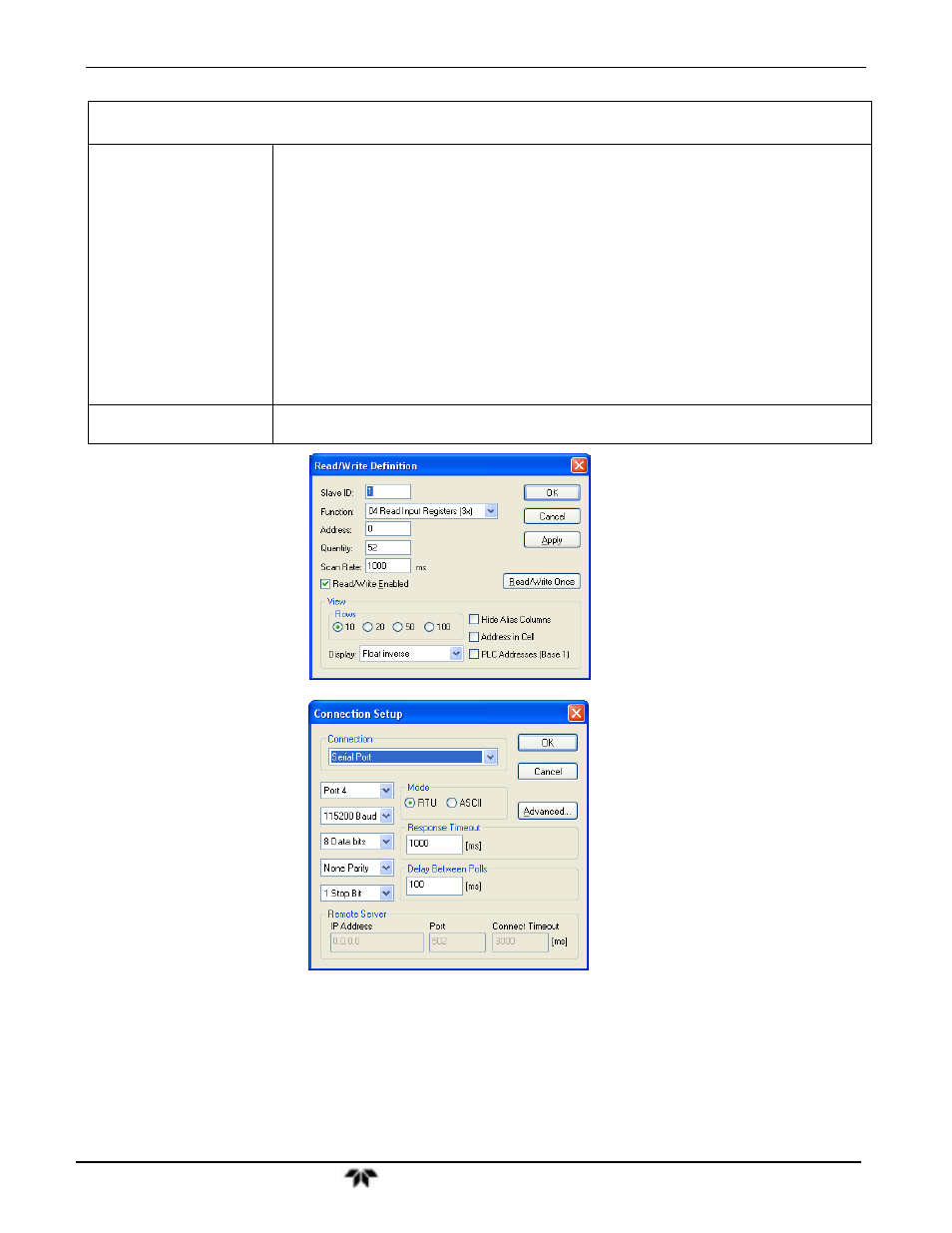

Example Read/Write Definition window:
Example Connection Setup window:
