© 2006 Alamo Industrial Section 6 - 9
Axtreme Boom (Asy Man) 07/06
Pump - Driveline - Hose Installation
Return From Cyl
Control Valve
Return to Tank
Return Filter
Return Oil Cooler with Fan
Figure 21
Two Wires In Plug
1 Red Wire
= Pos (+) Connector
1 Black Wire = Neg (-) Connector

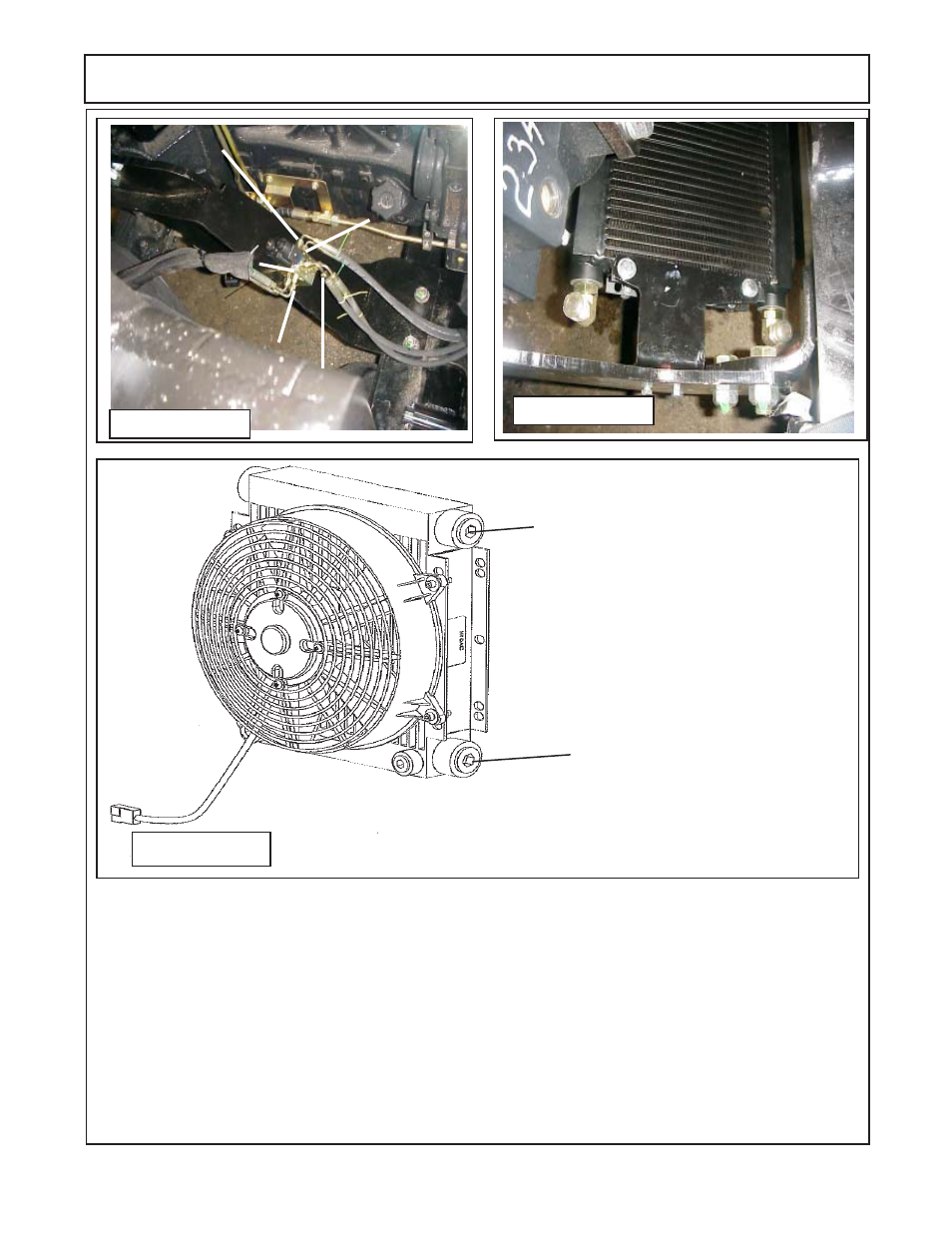

The return oil cooler with fan is in the cylinder control valve circuit. The return oil from the cylinder
control valve is going through the cooler as it is being returned to the cutter control valve block. (See
Figure 20 & 21).
Swivel Cyl. Base End C1 Port (G/W Tie)
Swivel Cyl. Rod
End C4 Port (G Tie)
Door Cyl. Rod End
C3 Port (Y Tie)
Door Cyl.
Base End
C2 Port
(Y/W Tie)
Valve "A" Port to
P2 Diverter Port
Port (G Tie)
From Valve "A"
Port to P1 Diverter
Port (G / WTie)
FIGURE 19
FIGURE 20
