© 2006 Alamo Industrial Section 6 - 5
Axtreme Boom (Asy Man) 07/06
Figure 11
Gap ? Check, this must have a gap
between Pump & drivesahft
Figure 10
Figure 9
Pump
Assembly
Splined
Clamp
Yoke
1/16" to 1/8" Gap
between Pump &
Yoke (must)

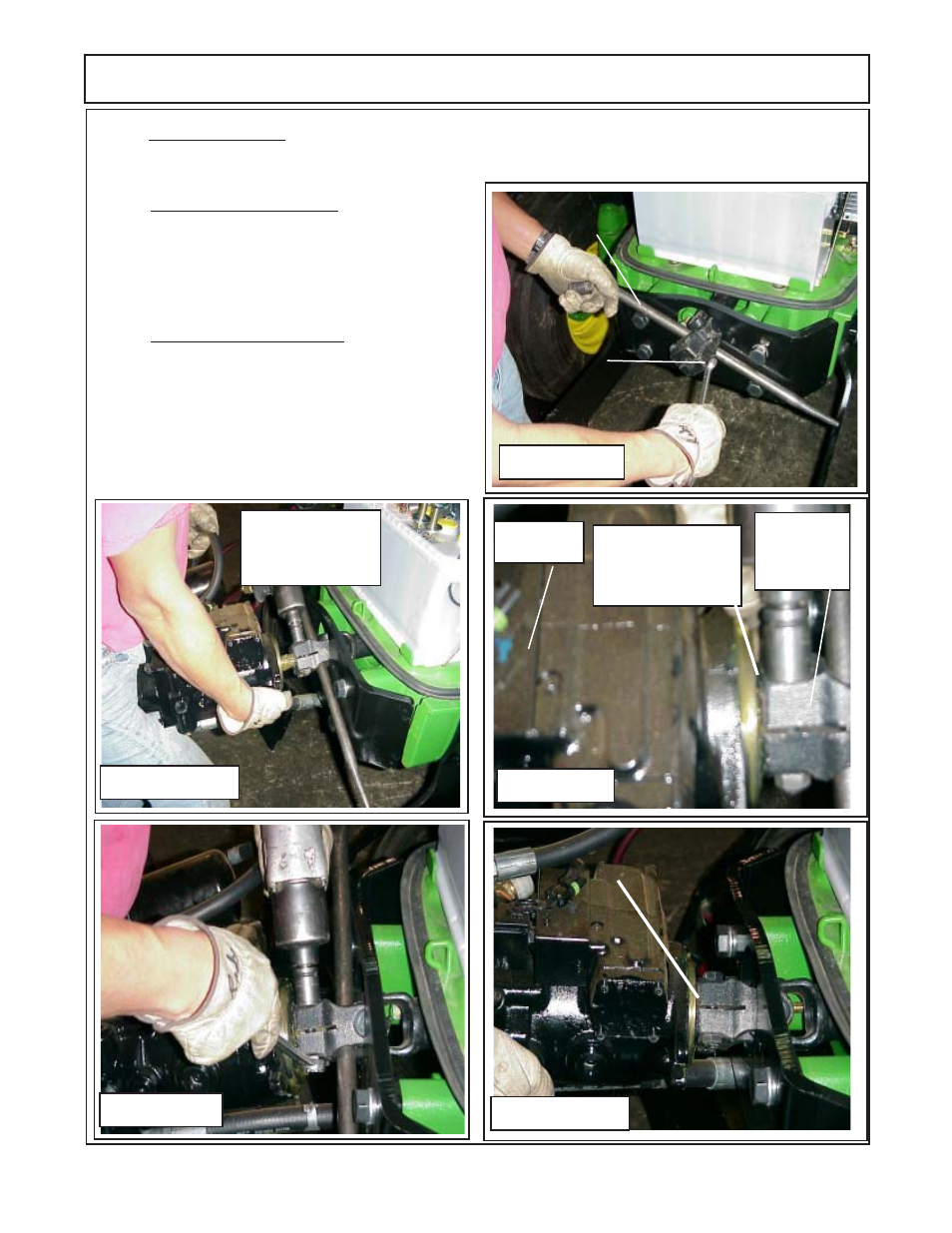

Pump - Driveline - Hose Installation
9. Tighten Clamp Yoke. After Gap between Yoke and Pump has been adjusted tighten the Bolts & Nuts on the
Clamp Yoke (See Figure 9 & 10). Check Pump to Yoke Gap once more. Keep Pump Supported do not let it hang
on Yoke.
Figure 7
Bar to Hold
Driveshaft
Loosen
Clamp
Yoke Bolt
Figure 8
Bar to Hold
Driveshaft
Align Splines of
Pump Shaft w/
Splines of Yoke
10. Mount Pump to Pump Plate. Remove the Bar that
is slid through the Driveshaft Yoke and push the Pump
inward (See Figure 11). This will make the two piece
Driveshaft slide together allowing the Pump to be pushed
towards the tractor. Do this untill the Pump is against the
Pump Plate (See Figure 12).
11. Install Pump Mounting Bolts. While holding in on
the Pump (See Figure 12) start the two Pump Retaining
Bolts. Make sure both Bolts are started well before you stop
supporting pump. The Bolts should be snugged untill pump
sits level before you stop supporting it (See Figure 12). Let
go of the Pump, it may slide back some and leave a slight
gap between Pump and Mounting Plate (See Figure 16).
