© 2006 Alamo Group Inc. Section 4 - 3
Axtreme Boom (Asy. Man) 07/06

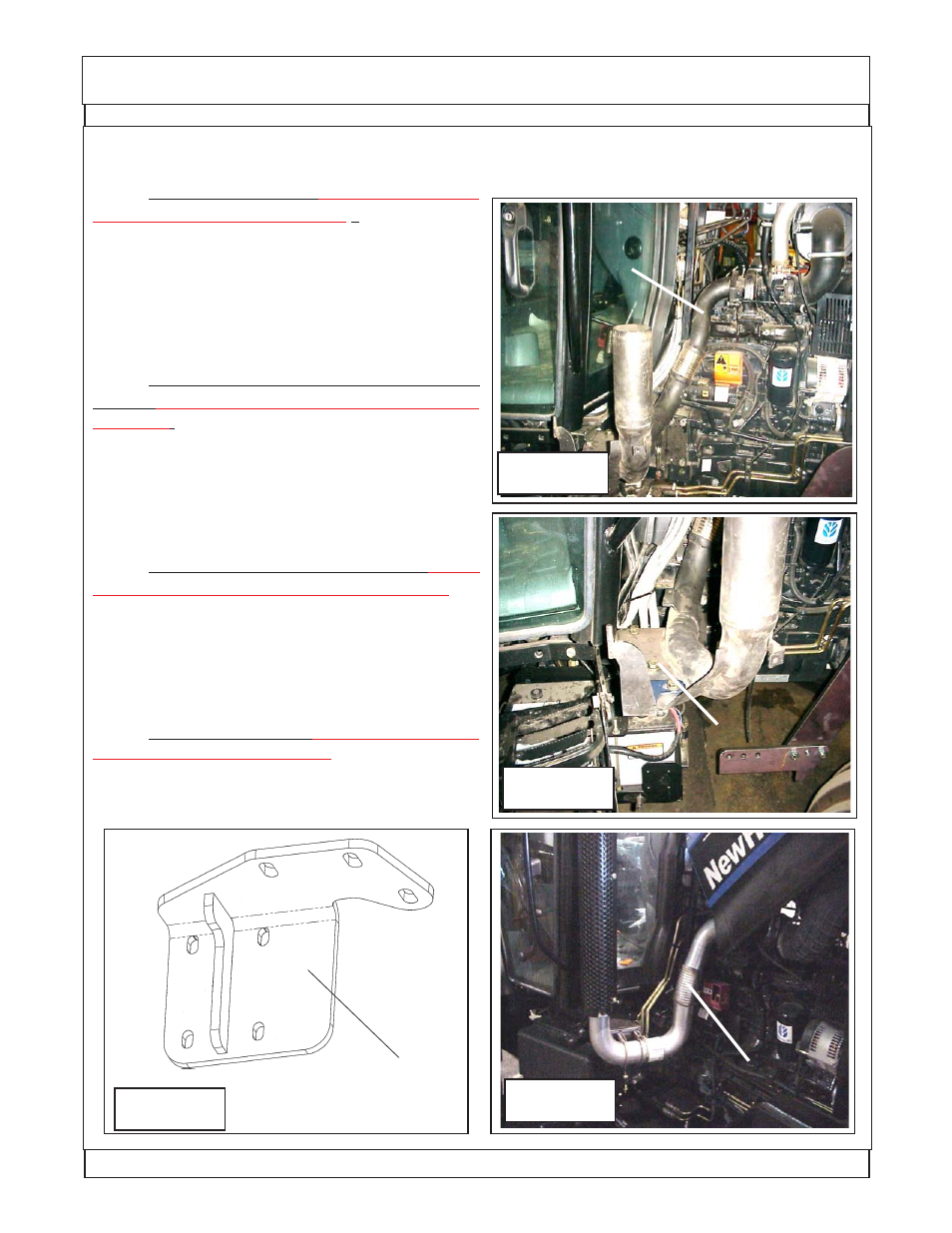

Exhaust / Muffler Relocation
Exhaust/Muffler Relocation:
1. Remove The Exhaust (If Required, See As-
sembly Drawings sent with unit) . . The Exhaust
relocation kit will include a new mounting bracket,
Bolting hardware, replacement exhaust pipe from
turbo to muffler. The Muffler needs to be removed
first (See Figure 5). Remove the Exhaust pipe to
turbo (See Figure 5). Remove the tractors factory
Exhaust pipe mounting bracket (See Figure 6).
2. Install Exhaust Replacement Mounting
Bracket (If Required, See Assembly Drawings sent
with unit) . The replacement exhaust mounting
bracket will bolt in the place of the factory mounting
bracket. The replacement bracket moves the ex-
haust inward towards the engine by about 5 to 6
inches. This is to give clearance of the boom and
exhaust system (See Figure 7).
3. Install Replacement Exhaust Pipe. (If Re-
quired, See Assembly Drawings sent with unit) In-
stall the replacement exhaust pipe using the new
clamp furnished in kit. Fasten the new exhaust pipe
to the new exhaust bracket using the two factory u-
Bolts that were used on the original exhaust pipe
(See Figure 8).
4. Reinstall the muffler (If Required, See As-
sembly Drawings sent with unit) to the exhaust pipe
using the factory bolts and hardware. Check all the
bolts and components to the exhaust for tightness
and fit.
Figure 5
Tractor Factory
Exhaust pipe to
Turbo
Figure 6
Factory Exhaust
Mount Bracket
Figure 7
Figure 8
Replacement
Exhaust Bracket
New Exhaust Pipe
