PERKO 0883 - Manual (Page 3)

Approx. Horz. Vert. Socket &
Bulb Bulb Bulb Maximum Beam Beam Life Lamp Socket Socket Stand
Fig. No. Wattage Voltage B.C.P. Spread Spread Hours Code Type Fig. No. Fig. No.
816 100 12 1,617,000 1.5 1.2 50 FDT 2 Pin Pref. 899 875 #2
836 150 24 1,349,000 2.2 1.5 50 DZE/FDS 2 Pin Pref. 899 876 #2
817 200 32 865,000 2.4 1.6 200 G.E.-1945 2 Pin Pref. 899 878 #2
806 500 32 1,496,000 3.4 3.5 50 DLT Med. Screw 894 872 #2
837 750 120 977,000 4.1 3.7 200 DDY Med. Pref. 895 873 #2
845 750 120 1,185,000 3.7 5.2 200 BTP Med. Pref. 895 873 #2
820 600 120 1,410,000 4.3 1.9 75 DYS 2 Pin Pref. 899 879 #2
809 750 120 1,792,000 3.6 3.4 25 DPJ Med. Pref. 895 873 #2
844 500 120 1,641,000 3.2 3.4 500 BTL Med. Pref. 895 873 #2
807 500 120 1,799,000 3.3 3.1 25 CZX Med. Pref. 895 873 #2
811 1000 120 1,816,000 4.0 4.9 25 DRW Mog. Screw 897 874 #2
810 1000 120 1,894,000 4.0 3.8 25 DRS Med. Pref. 895 873 #2
846 1000 120 1,911,000 3.9 5.0 200 BTR Med. Pref. 895 873 #2
839 900 120 2,482,000 4.5 5.5 75 BVA 2 Pin Pref. 866 880 #2
860 1000 230 865,000 6.9 5.9 950 FKD Med. Pref. 895 873 #2
Item Fig. No. Description Qty.
3 Drum Assembly Complete 1
14 Fork Assembly Complete 1
21 908-003* Rear Cover with Screws 1
25 890-003 Reflector 1
29 891-003* Front Door with Glass Assembly 1
33 889-003 Front Glass 1
36 Anti-Halo Ring Assembly 1
46 Lower Vent Cover 1
47 Upper Vent Cover 1
48 910 Reflector Clips 4
49
Focus Device Ass. W/Socket & Stand See Note #1
1
51 Electrical Cord Assembly 1
53 883-000-88B Latch, Front Assembly 4
54 Hinge Assembly, Front Door 1
56 Base Seal 1
57 Control Handle 1
59 Base Assembly Complete 1
Bill of Material
NOTE 1 ALL BULBS USING THE SAME SOCKET AND STAND FIG. NO.
(LAST COLUMN BELOW) ARE FIELD INTERCHANGEABLE
W/O MODIFICATION, OTHERWISE A CHANGE IN BULB TYPE
MUST BE ACCOMPANIED BY A NEW CORRESPONDING
SOCKET AND STAND.
NOTE 2 INCLINATION DECLINATION
90° 50°
NOTE 3 “J” DIMENSIONS
883 003
25-1/8”
883 M03 31-1/2”
883 H03 48”
SEARCHLIGHTS WITH SPECIAL PEDESTAL HEIGHTS CAN BE MADE
TO ORDER. THE SPECIAL “J” DIMENSION MUST ACCOMPANY THE
INQUIRY.
NOTE 4 SEARCHLIGHTS WITH “J” DIMENSIONS ABOVE THE STANDARD
(25-1/8”) UTILIZE AN 8” DIAMETER BASE (KEY NO. 59)
INSTEAD OF STANDARD 7” BASE.
16490 N.W. 13th Avenue Miami, FL 33169-5707
Scale: None
Date: 3-3-83
Revised: 3-19-02
Drawn By: D. Beutler

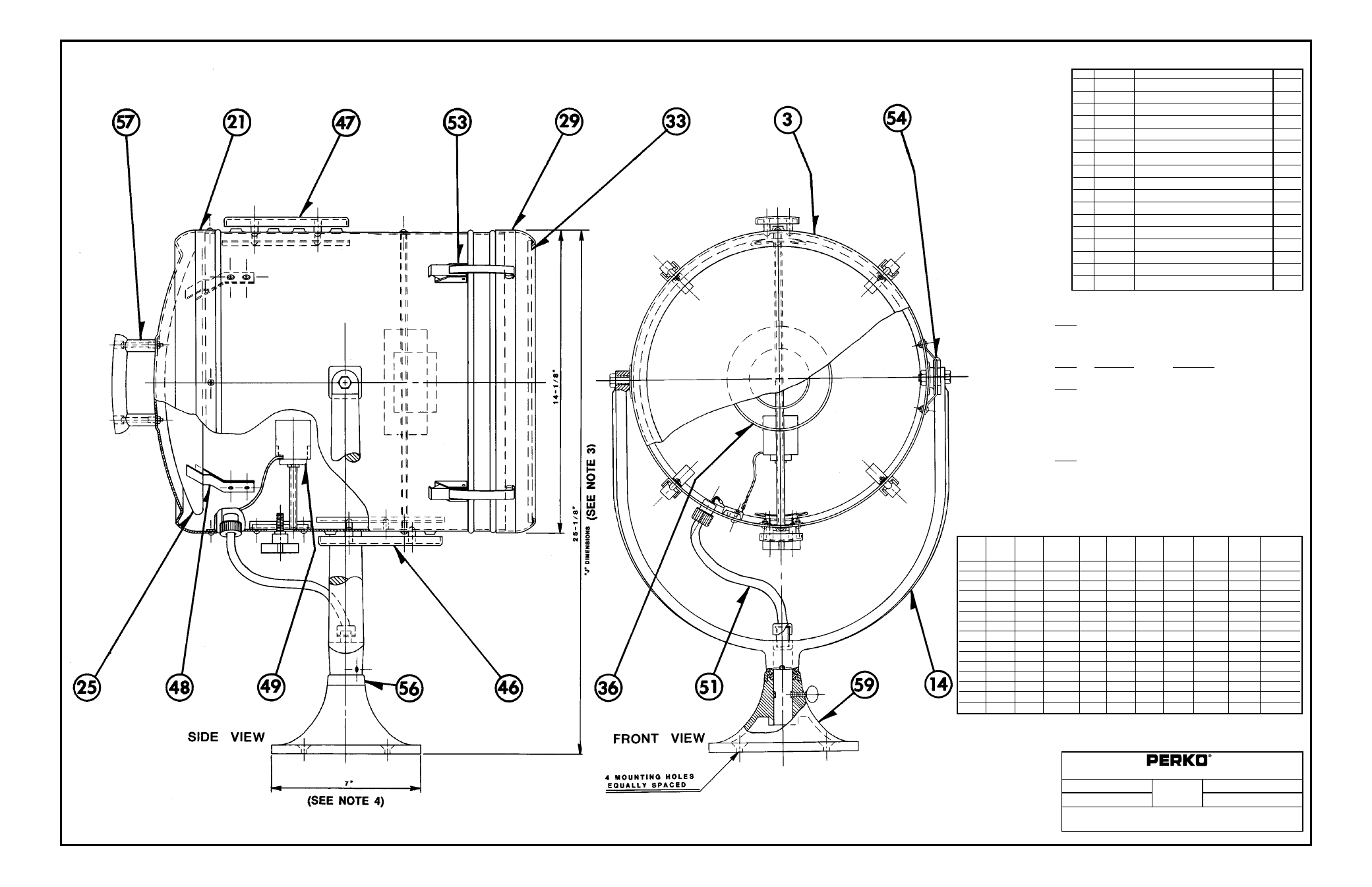

883-003 Solor-Ray ® Deck Control Searchlight
SPECIFY FINISH
