PERKO 0228 User Manual
Template, Ahead red lens green lens
Cat. No. 0228 Series Side Lights
The above lights are designed for use on power driven vessels under
20 meters (65.6 ft.) in length operating on a nominal 12 volt or 24 volt
system. In order to comply with ‘72 COLREGS and the U.S. Inland
Rules, the following must be adhered to:
MOUNTING INFORMATION
Read all instructions before proceeding
1).
For proper light selection, positioning and configuration, refer to the A.B.Y.C. Standard
A-16*, the ‘72 COLREGS* and the U.S. Inland Rules*. These lights are supplied com-
plete with 12 volt bulb (Cat No. 0071DP0CLR 12V, 10W), however, 24 volt bulbs
(0072DP1CLR) are available for 24 volt systems. Note: PERKO Series 0228 side lights
used with a 24V Bulb (Cat. No. 0072DP1CLR) are not certified in accordance with 33
CFR 183.810 as these lights are intended for replacement use only on appropriate ves-
sels constructed prior to 11/1/03. All previous certifications apply. Contact PERKO for
24V applications on new installations.
2).
These lights are designed to be mounted on a horizontal surface.
3).
Draw a 6 inch long reference line through the center of the selected mounting location
and parallel to the centerline of the boat.
4).
Cut out the mounting template. Place it on the mounting surface such that the reference
line (drawn above) is directly underneath the reference line marked on the template.
5).
Drill 2 holes through the template to accommodate #6 pan or round head mounting
screws. Drill a 1/4 inch hole to accommodate the electric wiring.
6).
Attach supply connections to the light, making sure to wire in accordance with both
A.B.Y.C. Standard E-9* and U.S. Coast Guard Safety Standards for Boat Electrical
Systems (33 CFR 183)*.
7).
Mount the lights in accordance with the template. Note that there are thin reference
marks around the outside of the base that must be aligned with the reference line (drawn
in Step #3) for final accuracy of mounting orientation.
8).
To Re-Bulb: Remove two mounting screws and lift light off deck. While upside-down, use
a small bladed screwdriver (in either of the two slots) to pry out the bulb holder. Replace
bulb and snap back into place. Re-mount light.
* The above referenced Standards can be obtained from:
1)
American Boat & Yacht Council, Inc
2)
U.S. Coast Guard
3069 Soloman’s Island Road
Washington D.C. 20593
Edgewater, Maryland 21037
(or your local C.G. office)
PERKO, Inc.
16490 N.W. 13th Avenue
12/08
Miami, Florida 33169-5707
0228INS1
www.perko.com

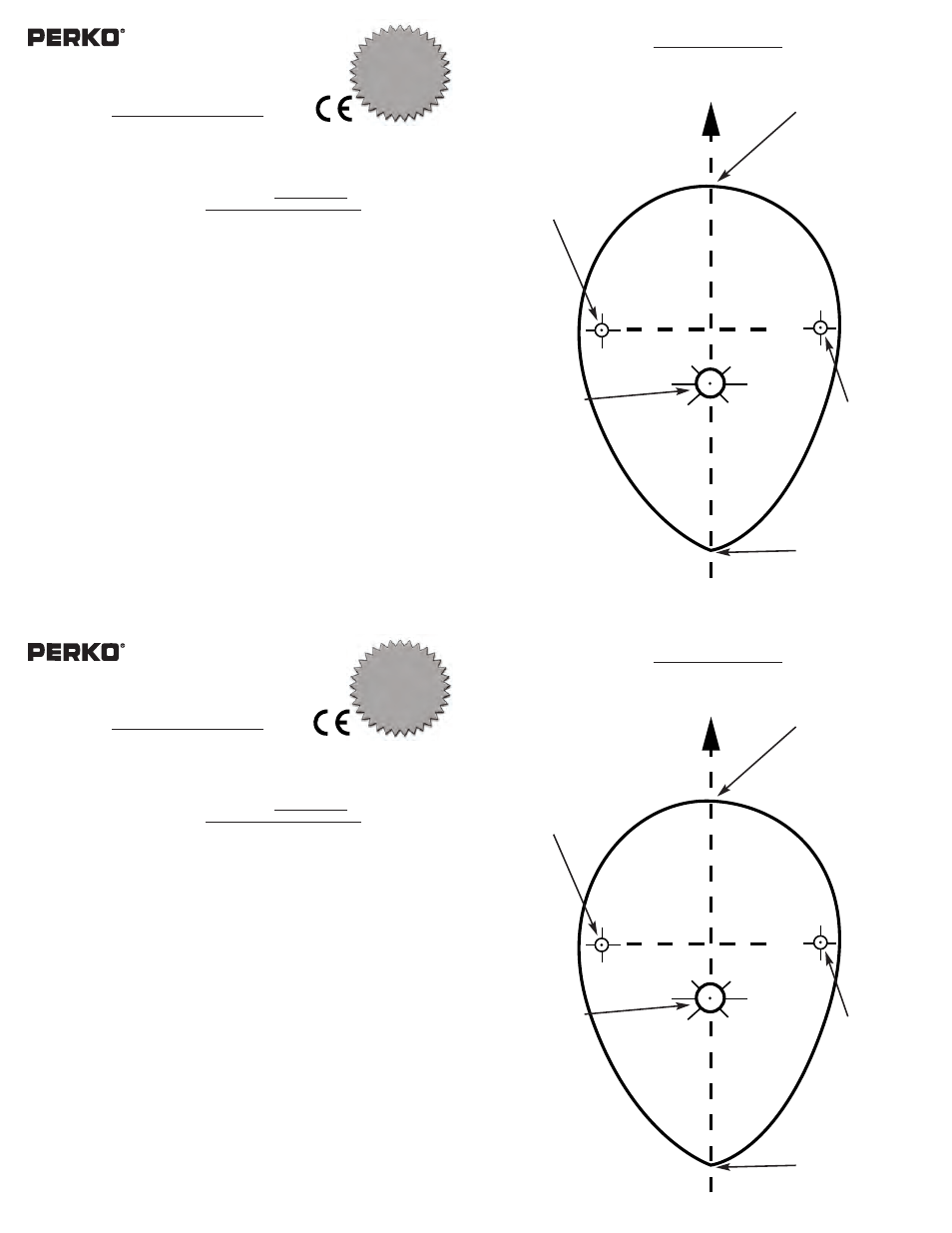

TEMPLATE
N
OTE
A
LIGNMENT
M
ARK
ON
F
IXTURE
B
ASE
AHEAD
RED Lens
GREEN Lens
D
RILL
1/4”
HOLE
FOR
E
LECTRIC
W
IRING
U
SE
#6 P
AN OR
R
OUND
H
EAD
S
CREWS
U
SE
#6 P
AN OR
R
OUND
H
EAD
S
CREWS
N
OTE
A
LIGNMENT
M
ARK
ON
F
IXTURE
B
ASE
R
EFERENCE
L
INE
(On Starboard
Side Light Only)
(On Port Side
Light Only)
12V USCG
APPROVAL
33 CFR 183.810
Visibility: 2nm
Tested By: IMANNA
Labs. Date: 11/25/02
Meets ABYC A-16
