PERKO 0883 - Manual (Page 2)

Item Fig. No. Description Qty.
2 Drum Assembly Complete 1
13 Fork Assembly Complete 1
20 0908002 Rear Cover with Screws 1
24 0890002 Reflector 1
28 0891002 Front Door with Glass Assembly 1
32 0889002 Front Glass 1
35 Anti-Halo Ring Assembly 1
45 Lower Vent Cover 1
47 Upper Vent Cover 1
48 Reflector Clips 4
49 Focus Device Assy. w/Socket & 1
Stand. (See Note 1)
51 Electrical Cord Assembly 1
53 Latch, Front Door 2
54 Hinge Assembly, Front Door 1
58 Fork Seal Bushing 1
56 Base Seal 1
59 Base Assembly Complete 1
57 Control Handles 2
Bill of Material
Note 1 All Bulbs using the same socket and stand Fig. No.
(last column below) are field interchangeable
w/o modification, otherwise a change in bulb type
must be accompanied by a new corresponding
socket and stand.
Note 2 Inclination Declination
90° 49°
Note 3 “J” Dimensions
0883002
22-1/8”
0883MO2 29-1/2”
0883HO2
46”
Note 4 Searchlights with “J” dimensions above the standard
(22-1/8”) utilize an 8” diameter base (key no. 59)
instead of standard 7” base.
Note 5 Searchlights with special pedestal heights and/or special control
lengths can be made to order. The special “J” dimension and/or
control length dimension (“E”)must accompany the inquiry.
Approximate Socket &
Bulb Bulb Bulb Maximum Horz. Beam Vert. Beam * Life Lamp Socket Socket Stand
Fig. No. Wattage Voltage B.C.P. Spread Spread Hours Code Type Fig. No. Fig. No.
0816 100 12 1,617,000 1.5 1.2 50 FDT 2 Pin Pref. 0899 0875002
0836 150 24 1,349,000 2.2 1.5 50 DZE/FDS 2 Pin Pref. 0899 0876002
0817 200 32 865,000 2.4 1.6 200 G.E.-1945 2 Pin Pref. 0899 0878002
0806 500 32 1,496,000 3.4 3.5 50 DLT Med. Screw 0894 0872002
0837 750 120 977,000 4.1 3.7 200 DDY Med. Pref. 0895 0873002
0845 750 120 1,185,000 3.7 5.2 200 BTP Med. Pref. 0895 0873002
0820 600 120 1,410,000 4.3 1.9 75 DYS 2 Pin Pref. 0899 0879002
0809 750 120 1,747,000 3.6 3.4 25 DPJ Med. Pref. 0895 0873002
0844 500 120 1,641,000 3.2 3.4 500 BTL Med. Pref. 0895 0873002
0807 500 120 1,799,000 3.3 3.1 25 CZX Med. Pref. 0895 0873002
0811 1000 120 1,816,000 4.0 4.9 25 DRW Mog. Screw 0897 0874002
0810 1000 120 1,894,000 4.0 3.8 25 DRS Med. Pref. 0895 0873002
0846 1000 120 1,911,000 3.9 5.0 200 BTR Med. Pref. 0895 0873002
0839 900 120 2,482,000 4.5 5.5 75 BVA 2 Pin Pref. 0866 0880002
0860 1000 230 865,000 6.9 5.9 950 FKD Med. Pref. 0895 0873002
16490 N.W. 13th Avenue Miami, FL 33169-5707
Scale: None
Date: 1-26-83
Revised: 12/1/08
Drawn By: D. Beutler

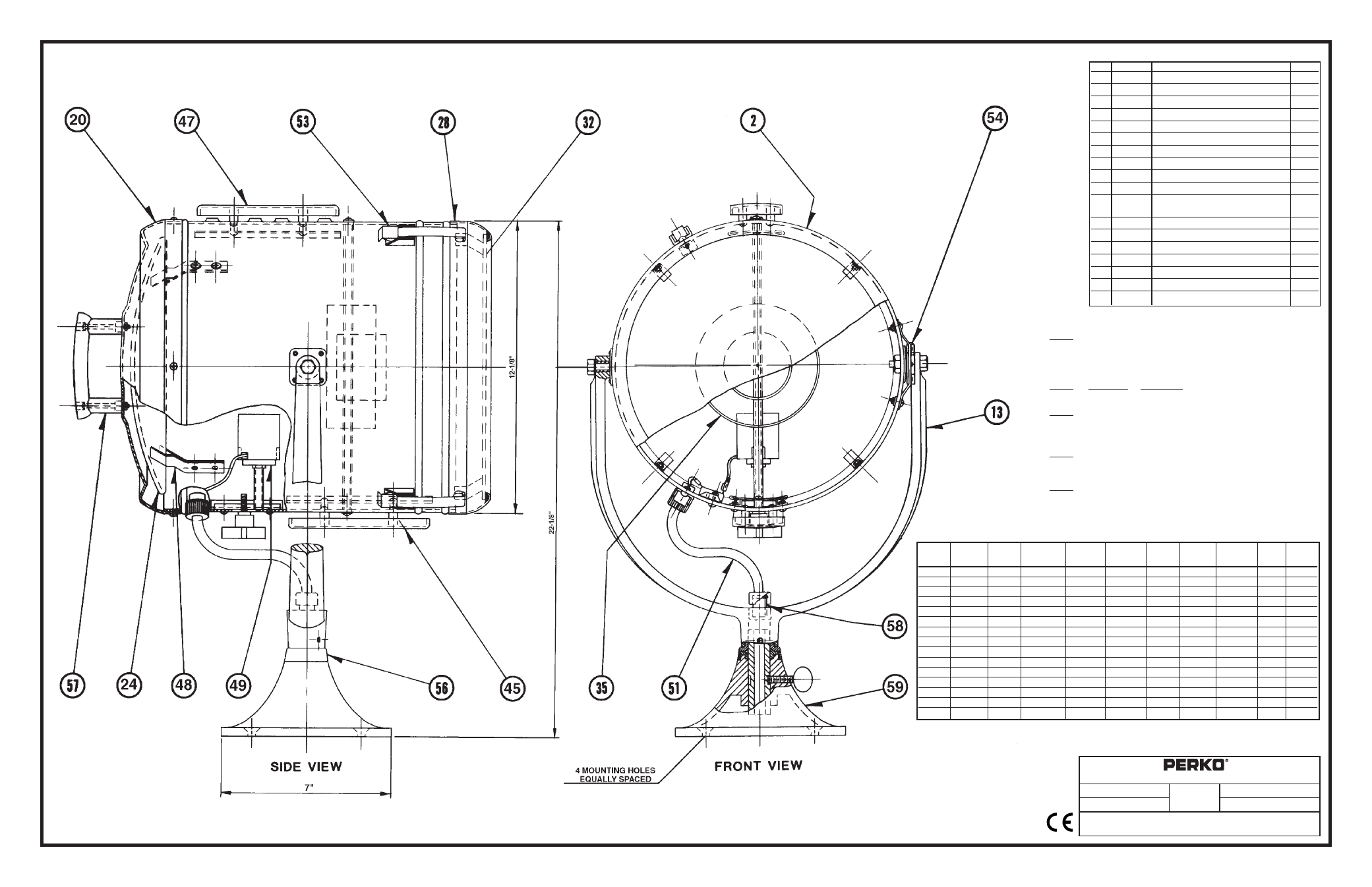

Fig. 0883 #2 Searchlight Head Assembly
Specify finish when ordering spare parts.
0883INS2
