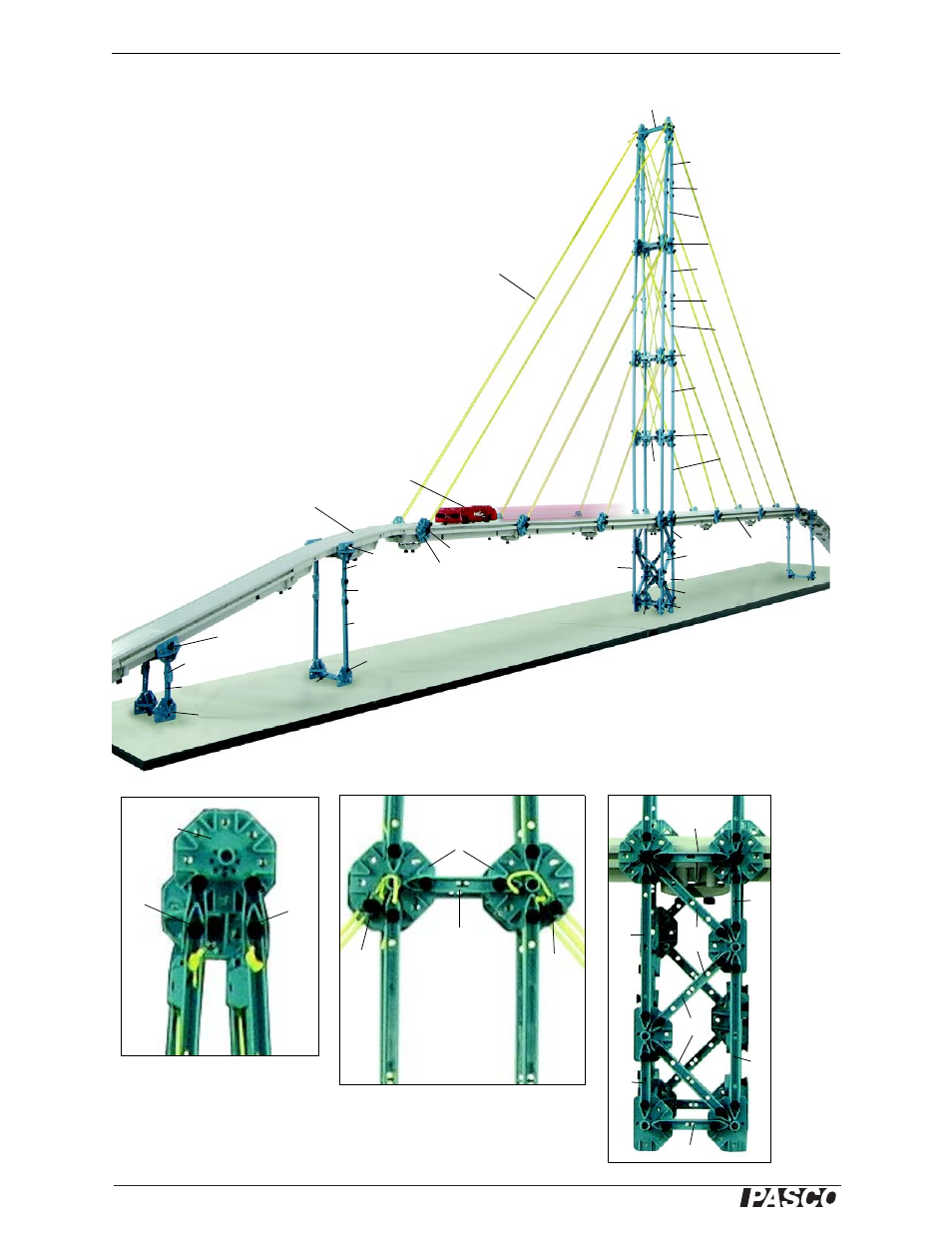

PAStrack Cable Stayed Bridge
1.5 meter tall
PAStrack Curved
Sections
PAStrack
PAScar
The PAScar, PAStrack,
and PAStrack Curved
Sections are not included.
Use the Nut and Bolt for PAStrack to attach
the PAStrack and PAStrack Curved sections
to the members of the Advanced Structures
Set. Slide the square nut into the “T-slot” on
the side of the PAStrack and PAStrack
Curved sections.
The PAStrack Cable Stayed Bridge shown on
this page was constructed using components
from two ME-6992A Advanced Structures
Sets, four sets of PAStrack (ME-6960), and
four sets of PAStrack Curved Sections
(ME-6841).
#2
AC
AC = Angle Connector
SC = Straight Connector
CTC = Cord Tensioning Clip
NB = Nut and Bolt
Axle
#3
#4
#2
SC
Axle
Flat Connector
NB
#4
SC
#4
#4
SC
#4
#5
#5
#2
#2
#3
#3
#1
#4
#4
#2
#3
#2
#3
#3
#4
#4
#2
#2
#3
#2
#3
#2
Full
Round
Full
Round
AC
AC
CTC CTC
#2
Half
Round
Half
Round
Top of Tower
Mid Tower
Tower Base
Double Cords
