2.2.1 Particular characteristics of the
various drive units
The power output differs from drive unit to drive
unit. Therefore:
– choose correct sawing motor
– choose correct level at the drive unit
(see "Selecting drive unit and sawing motor",
Chapter 3.2.)

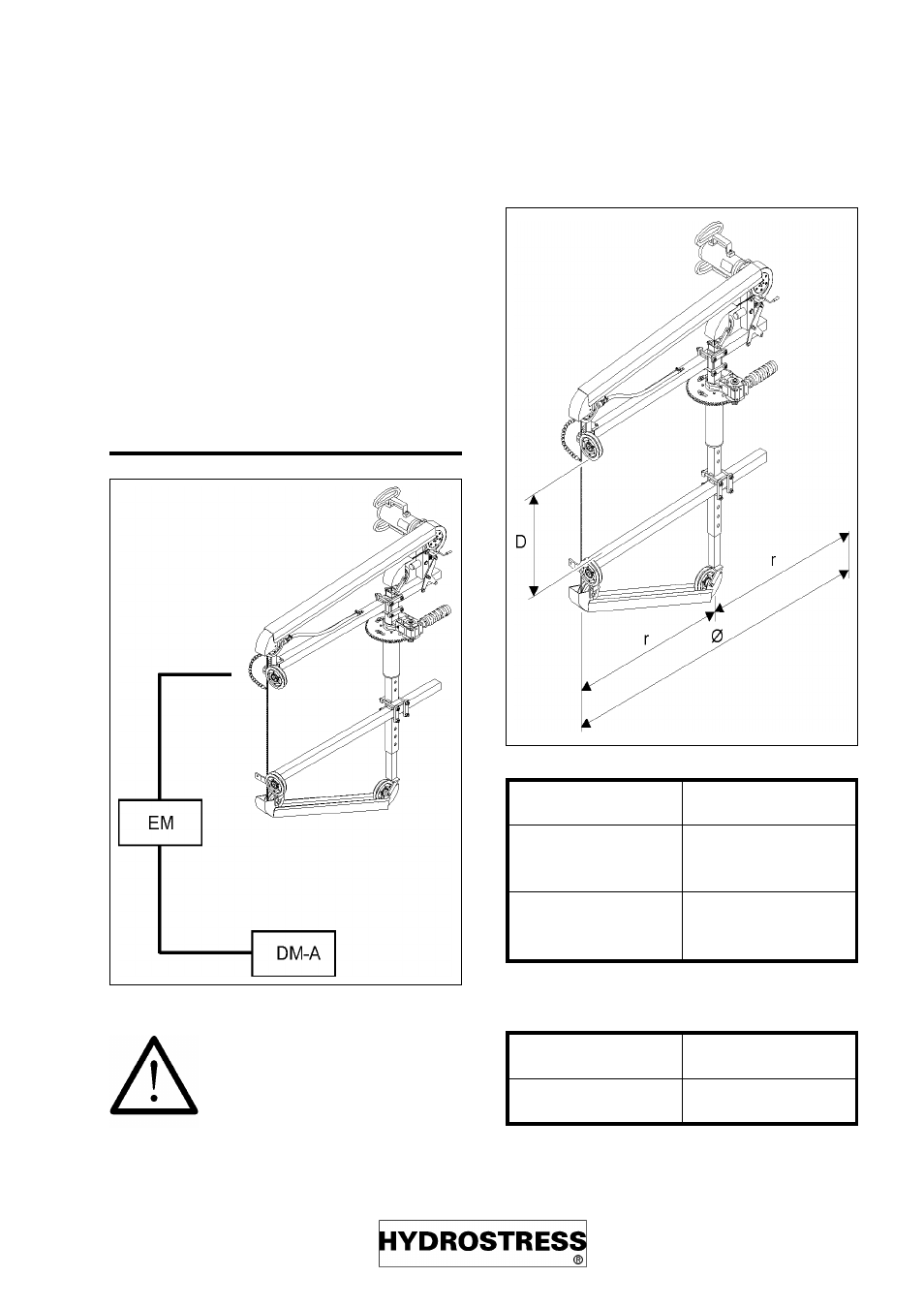

2.3 Attachable electric motor, electric
Do not use any different
electric motor or control unit!
2.3.1 Which extension arm for what
diameter?
Extension arm Ø
750 mm (~2-1/2’) 500 - 700 mm (~1’7-
1/2” – 2’3-1/2”)
1500 mm (~5’) 700 - 2500 mm (~2-
1/2’ – 8’2-1/2”)
2.3.2 The center tube
Center tube thickness "D" max.
1000 mm (~3’3-3/8”) 0.6 m (~2’)
Fig. sl_conn2.tif
Fig.auslzent.tif
SL Technical Data
sl9806e page 9
