– Connect straight hose couplings with
the drive unit.
– Slide hose coupling onto the counter-
part until snapping in with an audible
click.
– Turn securing ring of the coupling.
– Hoses not engaged in operation
should be coupled among themselves
for couplings’ protection.
– Never engage couplings by force.
– If hoses appear to require force to con-
nect they are likely to be under pressu-
re (see below).
Relieve pressure of hose.
1) Repeatedly actuate main or feed val-
ve at drive unit.
2) Connect the supplied pressure relief
unit to the hose and screw in.

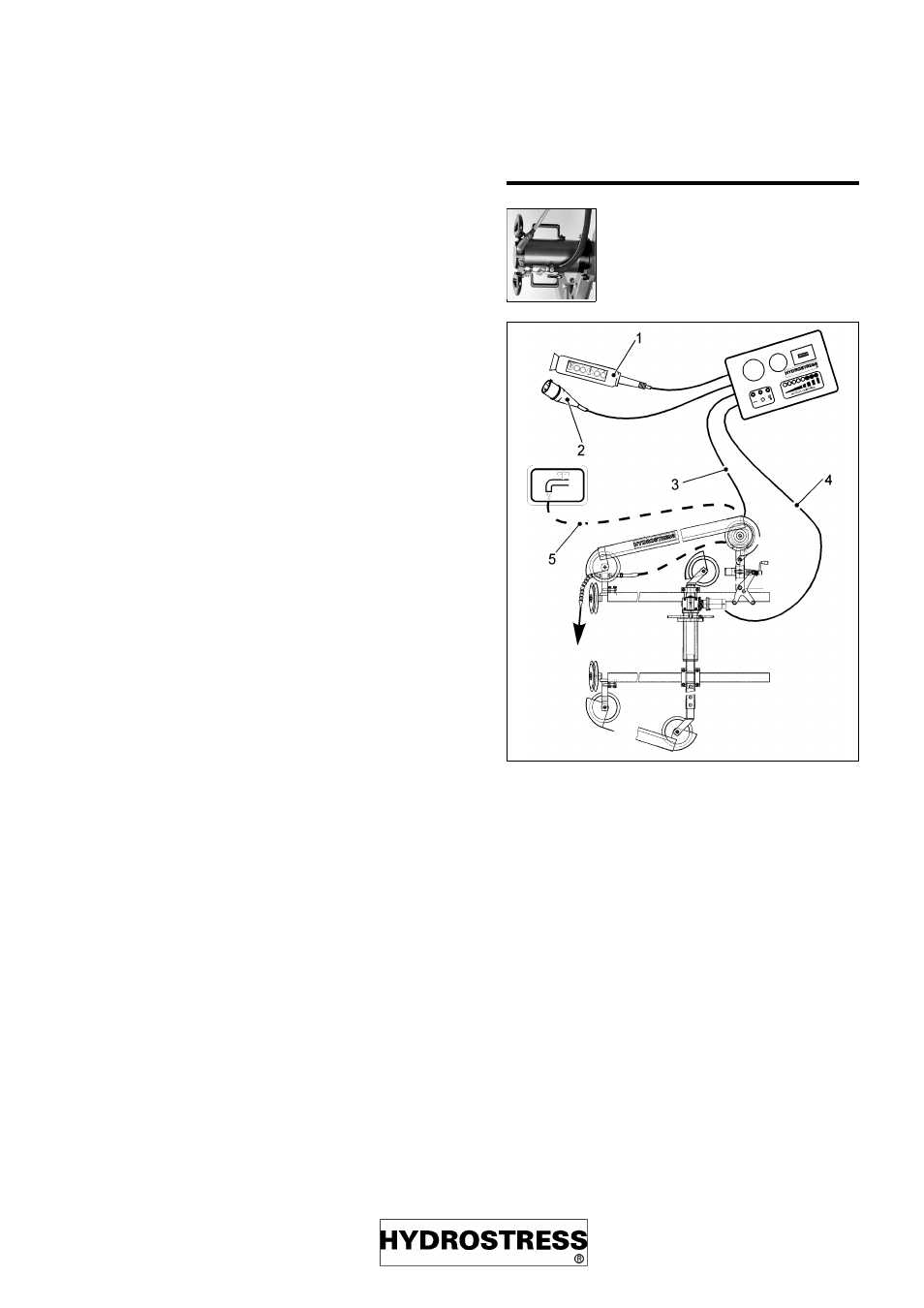

4.3 Connecting the electric module
Electric drive
1: Control handle
2: Electric connection
3: Electric connection for the main motor
4: Electric connection for the forward feed mo-
tor
5: Water
Fig. anschdma.tif
SL Set-up
