Mount top reel pair (1) in accordance with
sawing direction (bottom reels analogous)
•
Mount drive tightening pulley assembly (5)
onto the upper extension arm (2)
•
Put on upper shielding (4) (lower shielding
analogous)
•
Mount rope (see chapter 4.3)

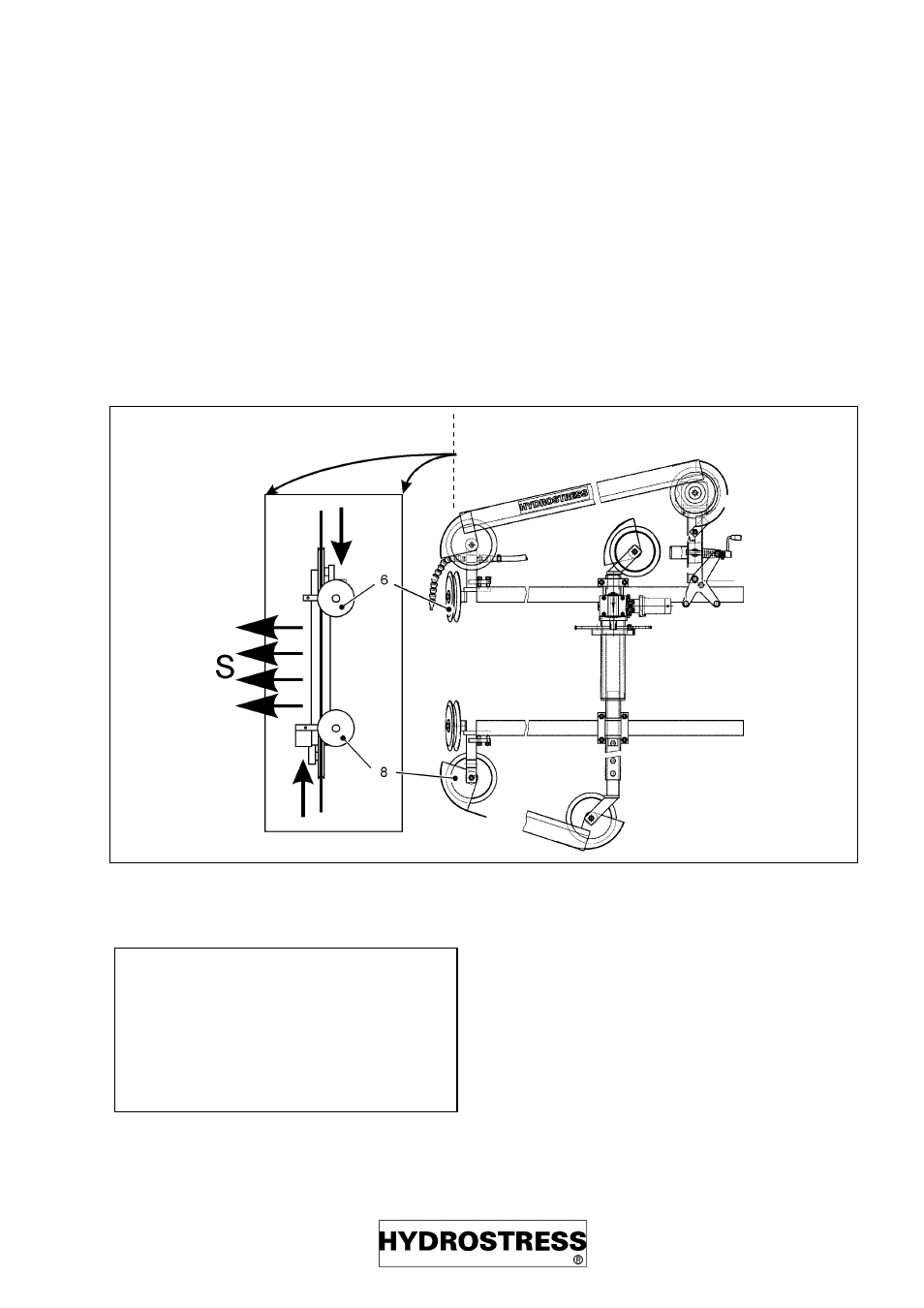

The pairs of reels (6 and 8) must be mo-
unted anti-symmetrically into the extensi-
on arm (2), in order to be able to cut in
the cutting direction designated by the
arrows (S). (See also chapter 4.1.2.
"Change of sawing direction ")
