4 Set-up
4.0.1 Set-up for first operation
The system is supplied ready for use. The pro-
cedures described under ”Set-up” apply also to
the first operation run of a new machine.
4.1 Fastening of system
4.1.1 procedure
•

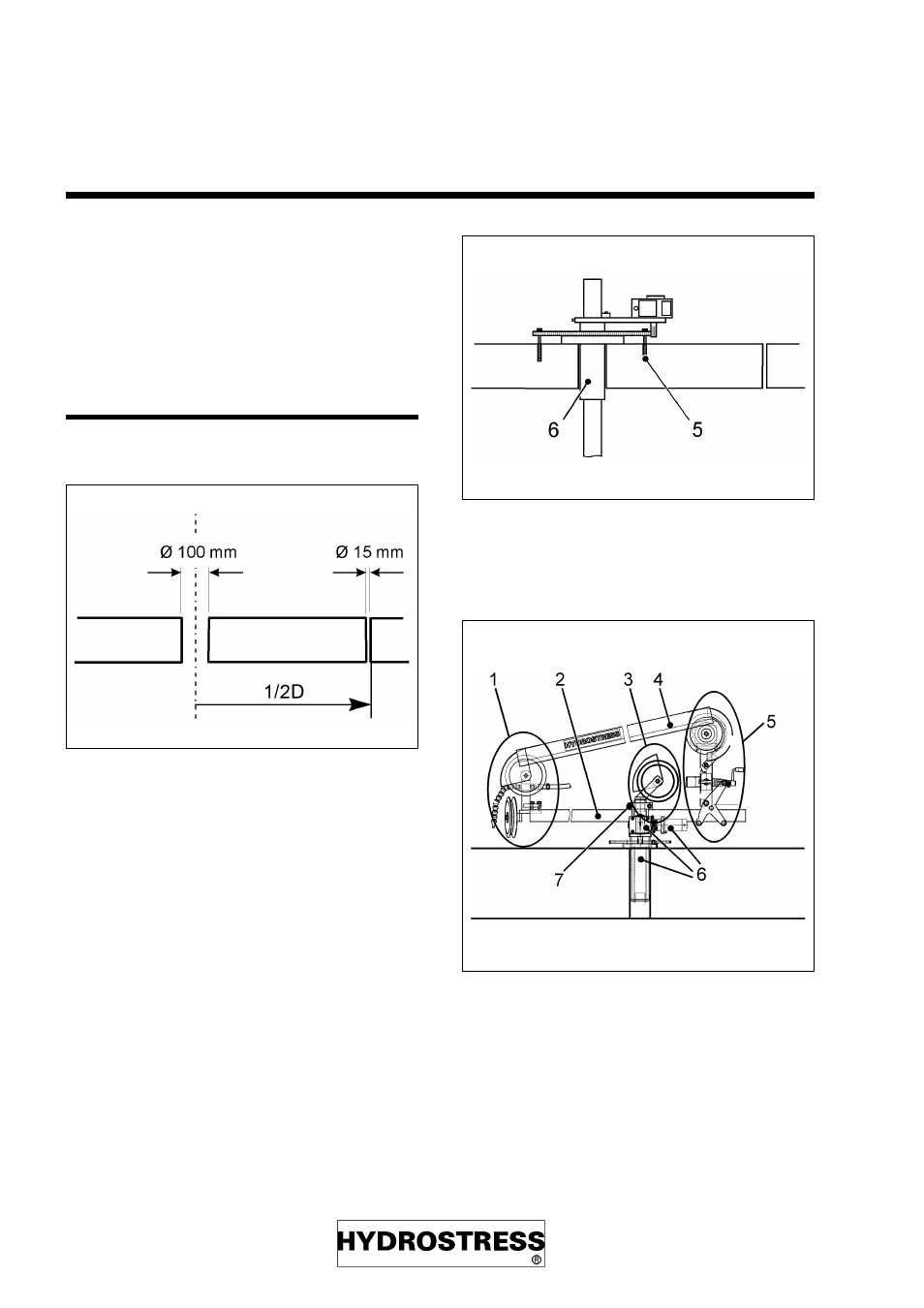

Drill Ø 100 mm for center tube (6)
•
Drill Ø 15 mm for rope at a distance of the
sawing radius (1/2D!)
Fasten center tube assembly (6) with two
hammer plugs M12 (5)
•
Insert central deflection reel (3) into top of
central tube unit (6)
•
and tie fast with bracket (7) (Central de-
flection reel at bottom analogous)
•
Insert upper extension arm (2) into the
receptacle and tighten up (lower extension
arm analogous)
Fig.mont4.tif
Fig.mont5.tif
Fig. mont3.tif
Set-up SL
page 18 sl9806e
