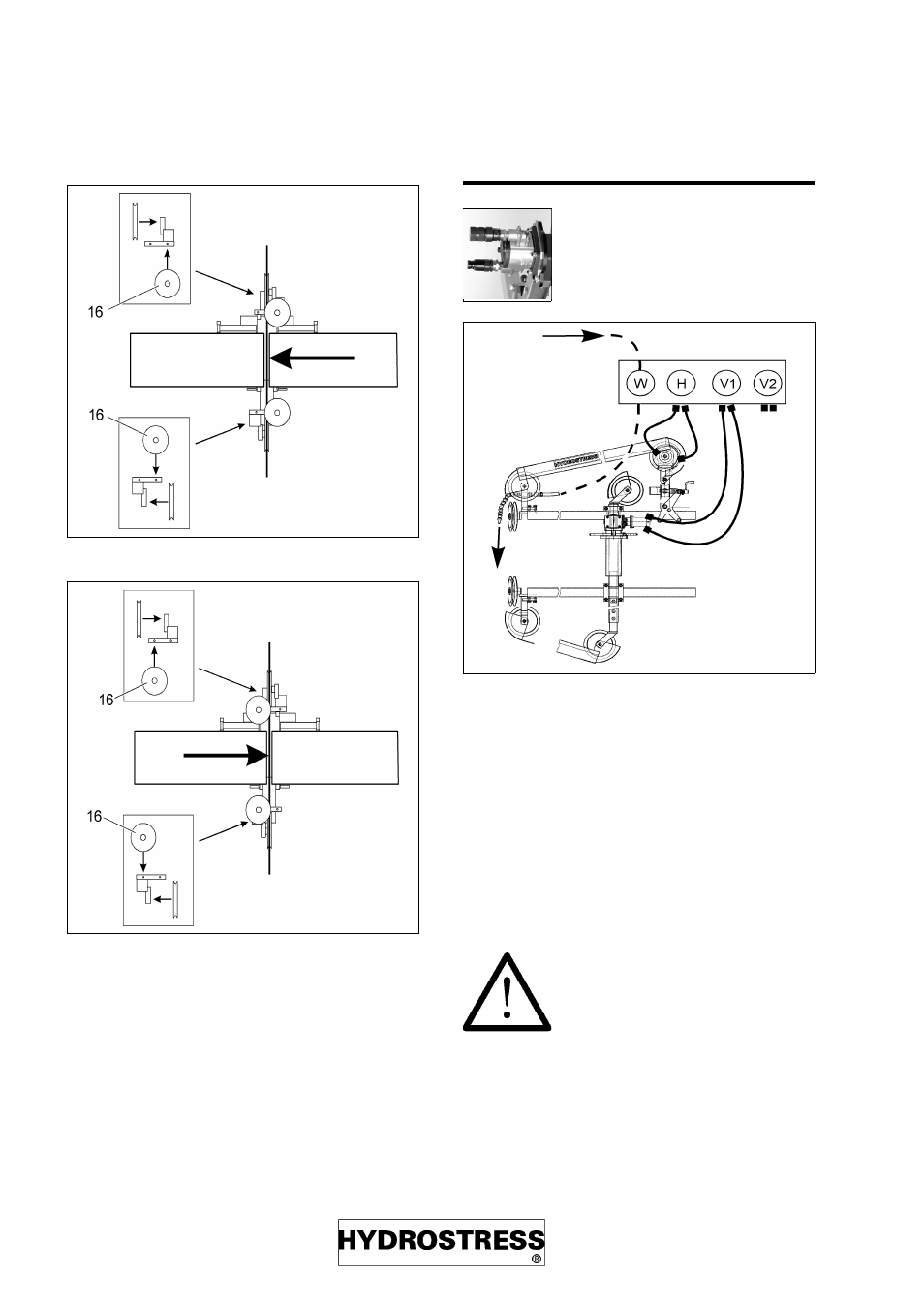

Change of sawing direction
The reels (16) can be mounted in two different
positions depending on direction of sawing.
4.2 Connecting the drive unit
Hydraulic drive
H: Sawing motor to the main circuit
V1: Hydraulic motor for forwardb feed motion
to the feed circuit 1
V2: Forward feed 2 remains disconncted
W: Connect water ALWAYS first to the drive
unit (see also chapter 4.7. "Connecting
water for use with hydraulic drive unit ")
Never connect or decouple ho-
ses while the drive unit is run-
ning. Set control valves to
position "0".
To observe:
– First clean couplings thoroughly.
– Connect angular shape hose cou-
plings with the sawing motor.
Fig. mont6.tif
Fig. mont7.tif
Fig. anschl.tif
Set-up SL
page 20 sl9806e
