3.3 Calculation of rope length
The minimum length of the rope results from:
– Invariant = 331 cm
– two times thickness "D" of building
– "A" according to saw-Ø
from table (see bottom)
Ø A
0.5 m 0.0
1.0 m 55 cm
1.5 m 115 cm
2.0 m 140 cm
2.5 m 170 cm
L
total
= 331 + 2 x D + A
Example:
Thickness D = 45 cm
Ø = 1.5 m, therefore A = 115 cm
L
total
= 331 + (2 x 45) + 115 = 536 cm
3.3.1 Length of extension arm and center
tube
Depending on diameter 2 different extension
arms are available.
See "Which extension arm for what application
" and "The center tube " (Chapter 2.3.1. and
2.3.2.) and "Spare parts list".

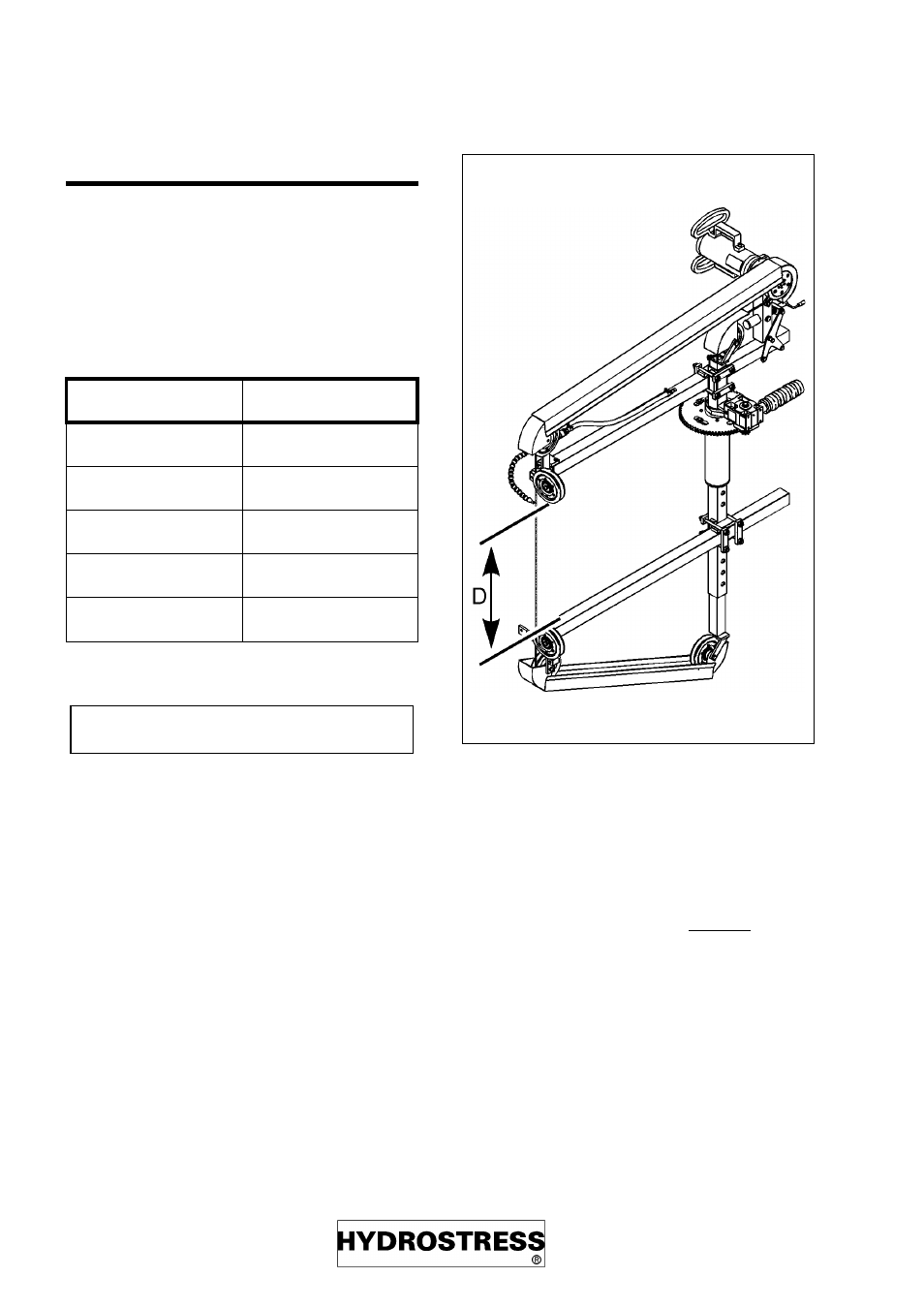

Fig. dicke.tif
Preparation for work SL
page 16 sl9806e
