Frame lift & muffler assembly, Sheet1, Drawing view1 – Diamond Products CB66DS User Manual

Page 8: Frame lift

background image

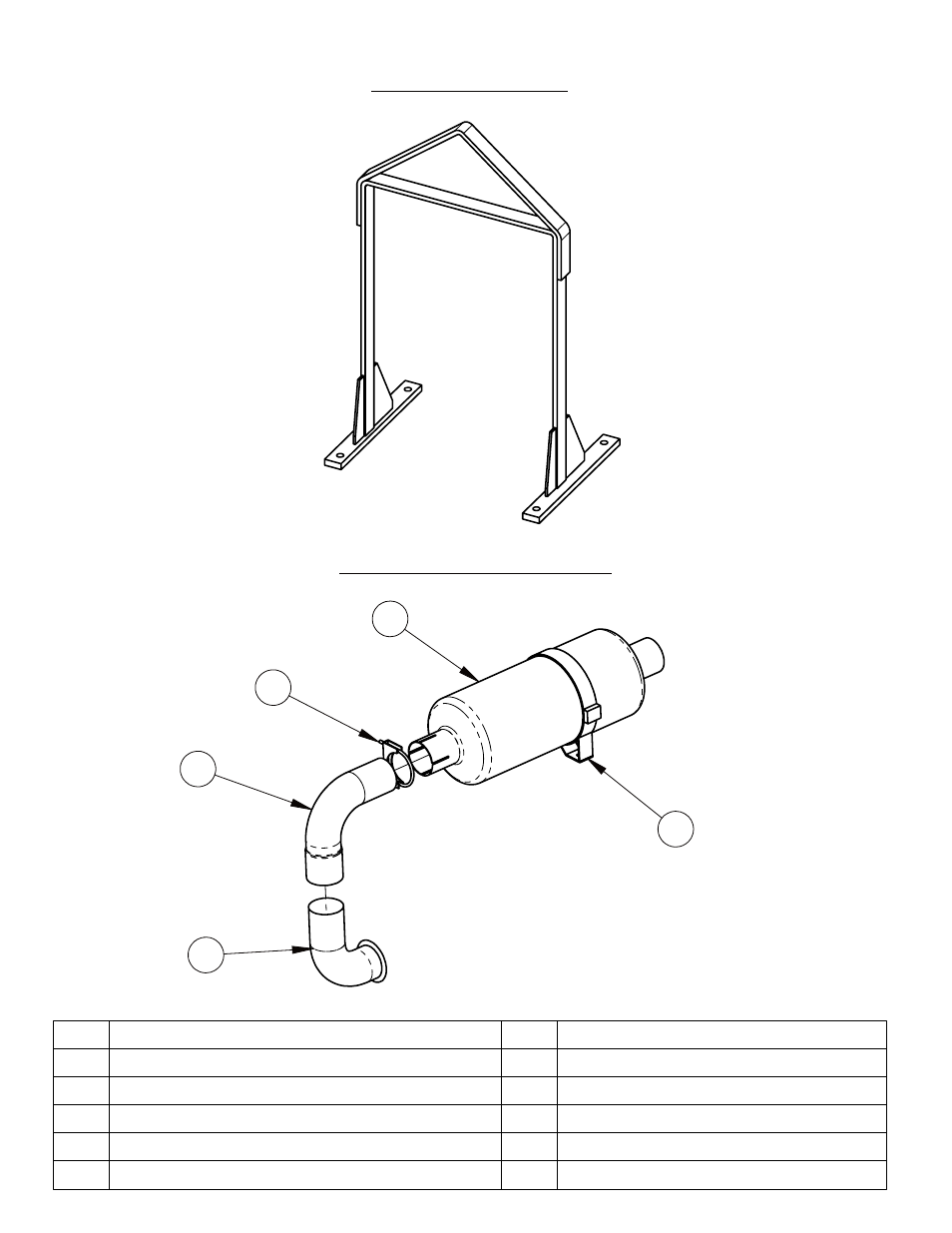

6075220 Muffler Assembly

4

3

5

1

2

6075164 Frame Lift

ITEM

PART NO.

QTY.

DESCRIPTION

1

60-094 EXHAUST_M065071 MUFFLER-1

1

Muffler (Part of JD66HP Engine)

2

60-094 EXHAUST_M002118 6-62 INCH MUF BAND

1

Muffler Band 6.62" (Part of JD66HP Engine)

3

CLAMP MUFFLER-1

1

Muffler Clamp, 2-1/2" (Part of JD66HP Engine)

4

2506419

1

Exhaust Elbow 2-1/2" x 90 Deg

5

PIPE EXHAUST 90DEG-1

1

Pipe, Exhaust-90 (Part of JD66HP Engine)
