Diamond Products CB66DS - Manual (Page 20)

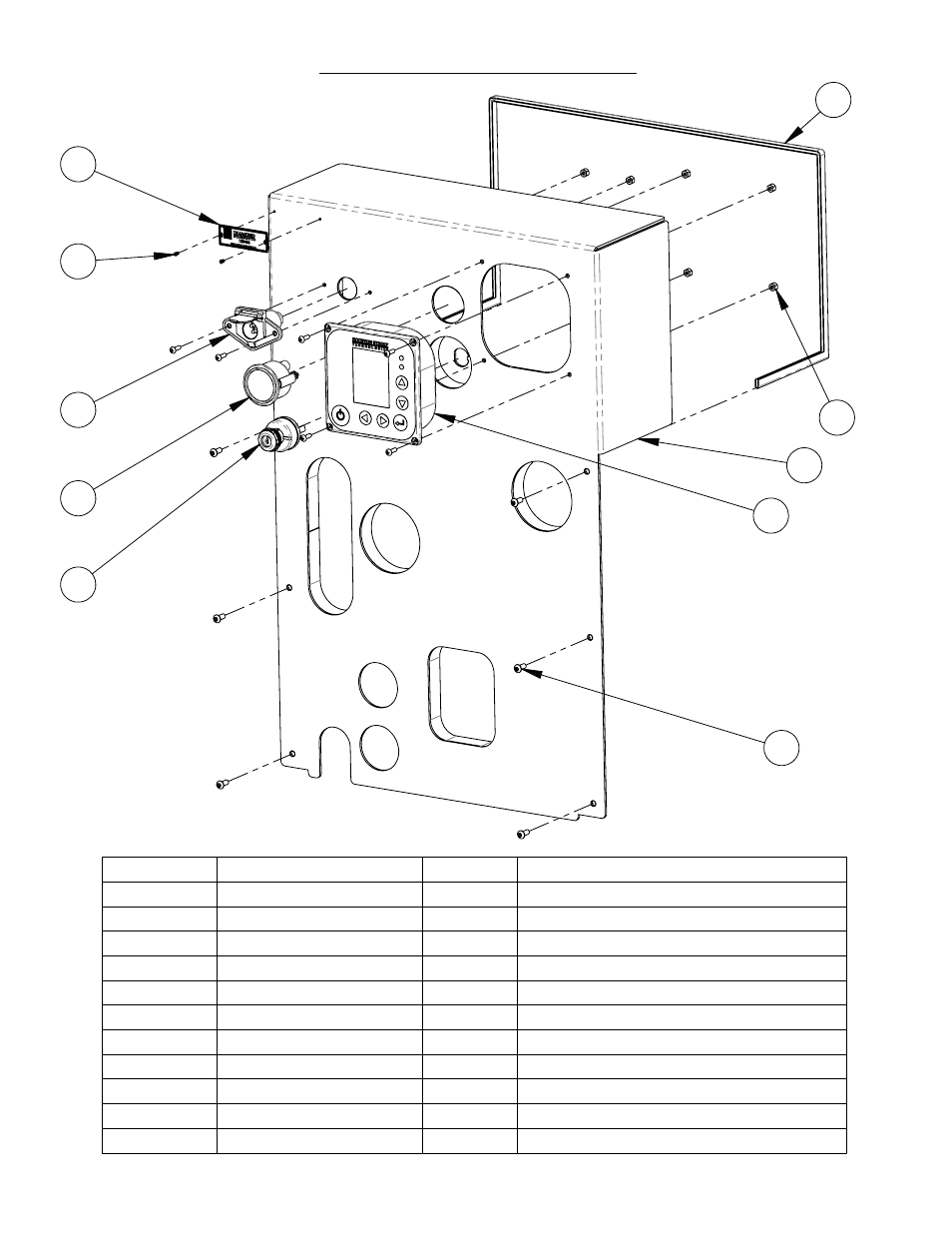

6075212 Dash Panel Assembly
1
3
11
4
2
7
6
9
10
8
ITEM PART NO. QTY. DESCRIPTION
1 6075211 1 Dash Panel Weldment, CB66D
2 2900863 6 Cap Screw, Button Hd., 1/4-20 x 5/8"
3 6075213 1 Pushon Vinyl Trim
4 2808049 1 Engine Control (Part of JD 66HP Engine)
5 2900159 6 Machine Screw, Rd. Hd., #10-24 x 5/8"
6 2804057 1 6-P Receptacle
7 JD Ignition Switch 1 Ignition Switch (Part of JD 66HP Engine)
8 2804516 1 VDO Fuel Gauge
9 1800169 1 DP S/N Nameplate
10 2900096 2 Rivet, 3/32" Dia.
11 2900017 6 Lock Nut, #10-24 Nylon
20
See P.41 for Wiring Diagram
