Hydraulic power unit assembly, Sheet1, Drawing view1 – Diamond Products CB66DS User Manual
Page 5: Drawing view2, Front of unit

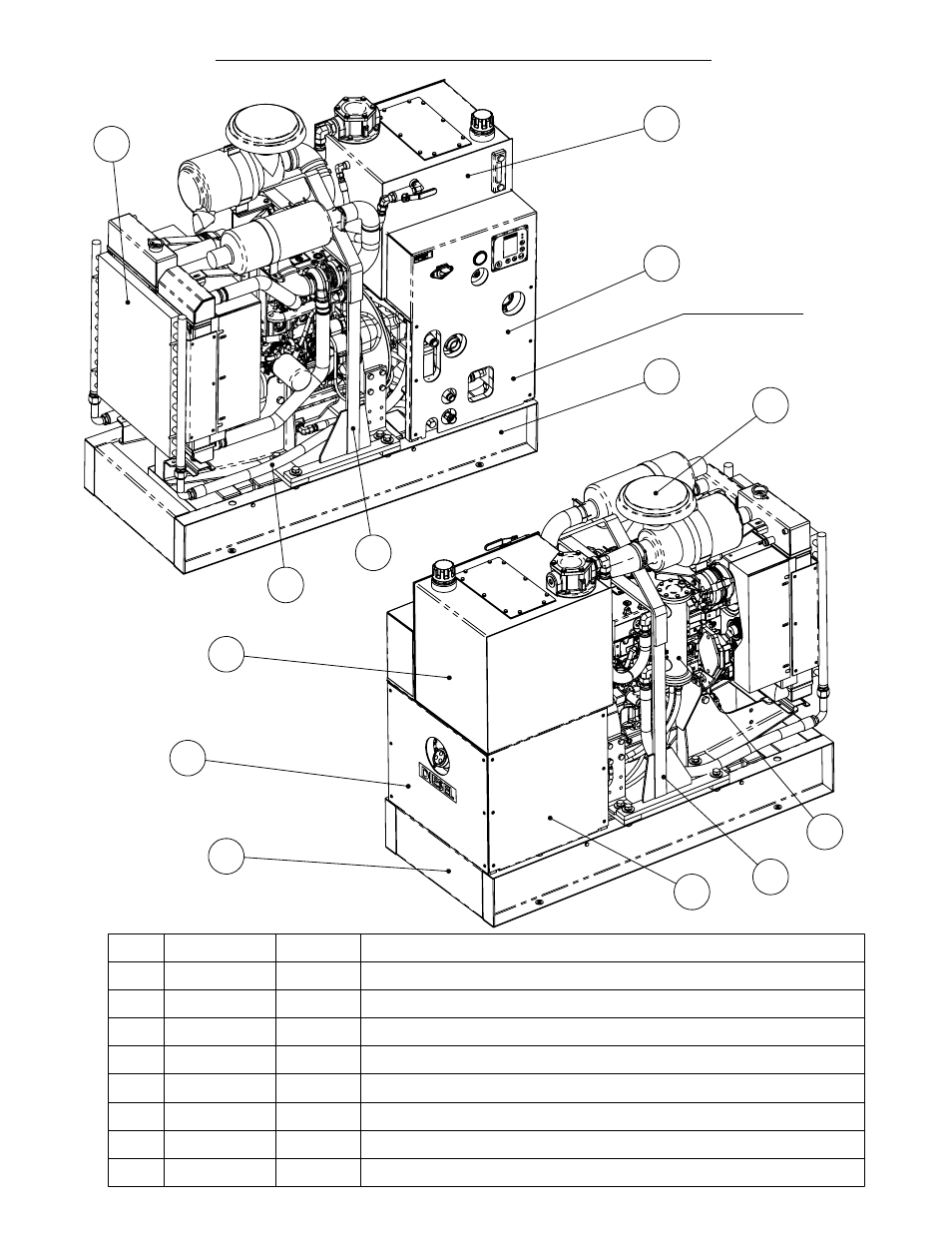

4250200 CB66D Hydraulic Power Unit Assembly
3
2
1
6
7
8
Front of Unit
4
5
*
6
2
8
1
ITEM
PART NO.
QTY.
DESCRIPTION
1
6075209
1
Frame Assembly CB66D Hyd. Power Unit
2
6075161
1
Hydraulic Tank Assembly - CB66D Hyd. Power Unit
3
6075212
1
Dash Panel Assembly - CB66D Hyd. Power Unit
4
6075166
1
Side Panel Assembly - CB66D Hyd. Power Unit
5
6075165
1
Rear Panel Assembly - CB66D Hyd. Power Unit
6
6075164
1
Frame Lift (Weldment) - CB66D Hyd. Power Unit
7
6075214
1
JD 66HP Engine Assembly - CB66D Hyd. Power Unit
8
6075218
1
Hydraulic System Assembly CB66DS Hyd. Power Unit
