H30 Operation Manual Houston Street Technologies
6
3. User Interface
The H30’s monochrome graphical LCD display is used as a visual interface for the operator. The H30’s primary
screen is the Operation Screen (shown below), which displays user-defined operating parameters on three analog
gauge faces as well as scrolling text for a total of six parameters in addition to any active fault codes being broadcast
by the engine ECU.
The power button is used to regulate power to the H30 and stop the engine from running. The engine can only be
started when the H30 is powered and displaying the Operation Screen. The engine can be shutdown by pressing
the power button when the engine is running.
CAUTION: Engine manufacturer recommendations should always be followed when shutting down the
engine.
On the face of the controller an amber LED is used as an active warning fault indicator, while a red LED is used
as a derate or shutdown indicator.

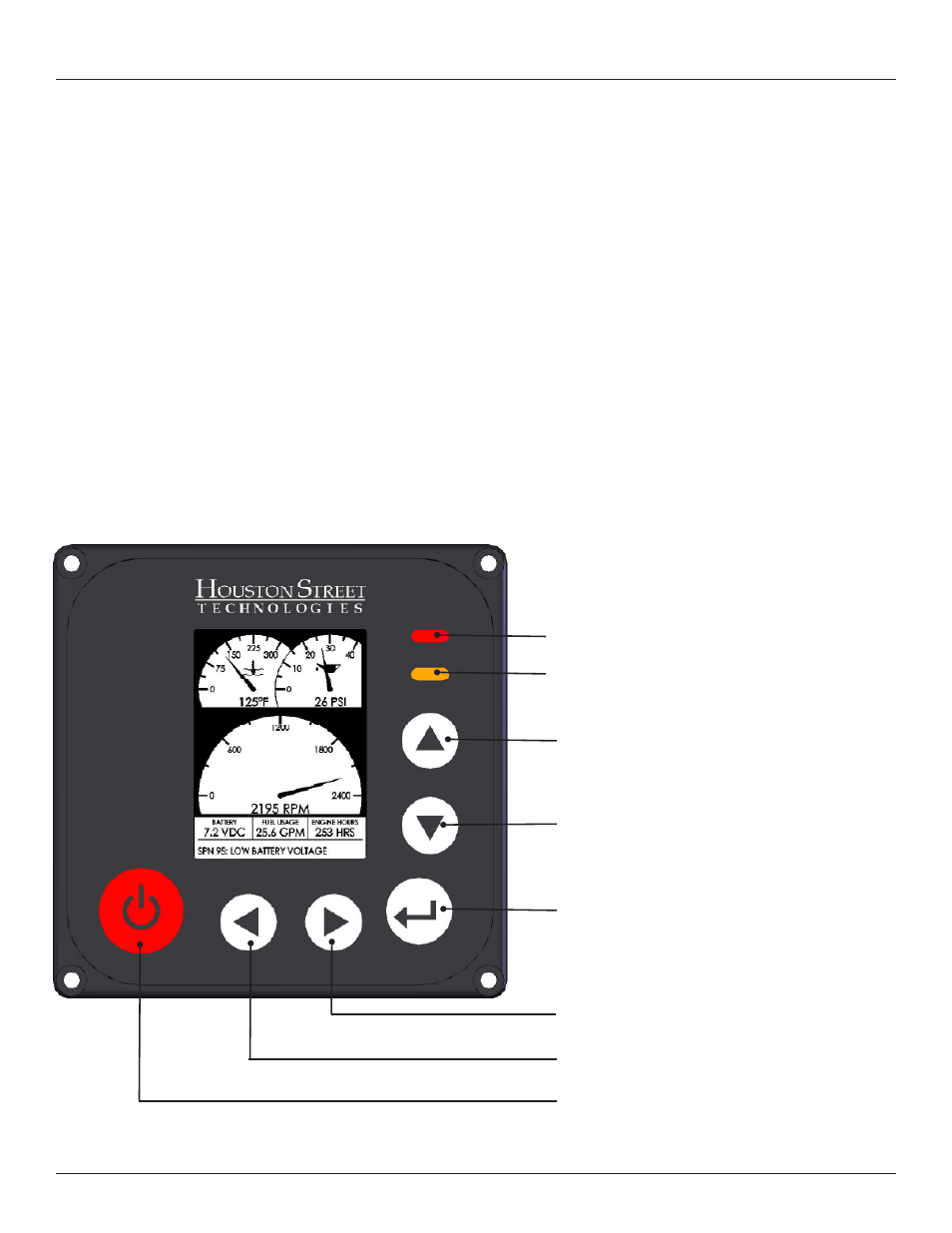

The six tactile push buttons on the face of the H30 have the following general functions:
1. UP: Increase RPM, Scroll Menu Lists
2. DOWN:
Decrease RPM, Scroll Menu Lists
3. ENTER: Select Highlighted Menu Item,
Press/Release to Access Main Menu, Hold to
Crank Engine
4. RIGHT: Increase Parameter Value
5.
LEFT: Decrease Parameter Value
6. POWER BUTTON
RED LED
AMBER LED
