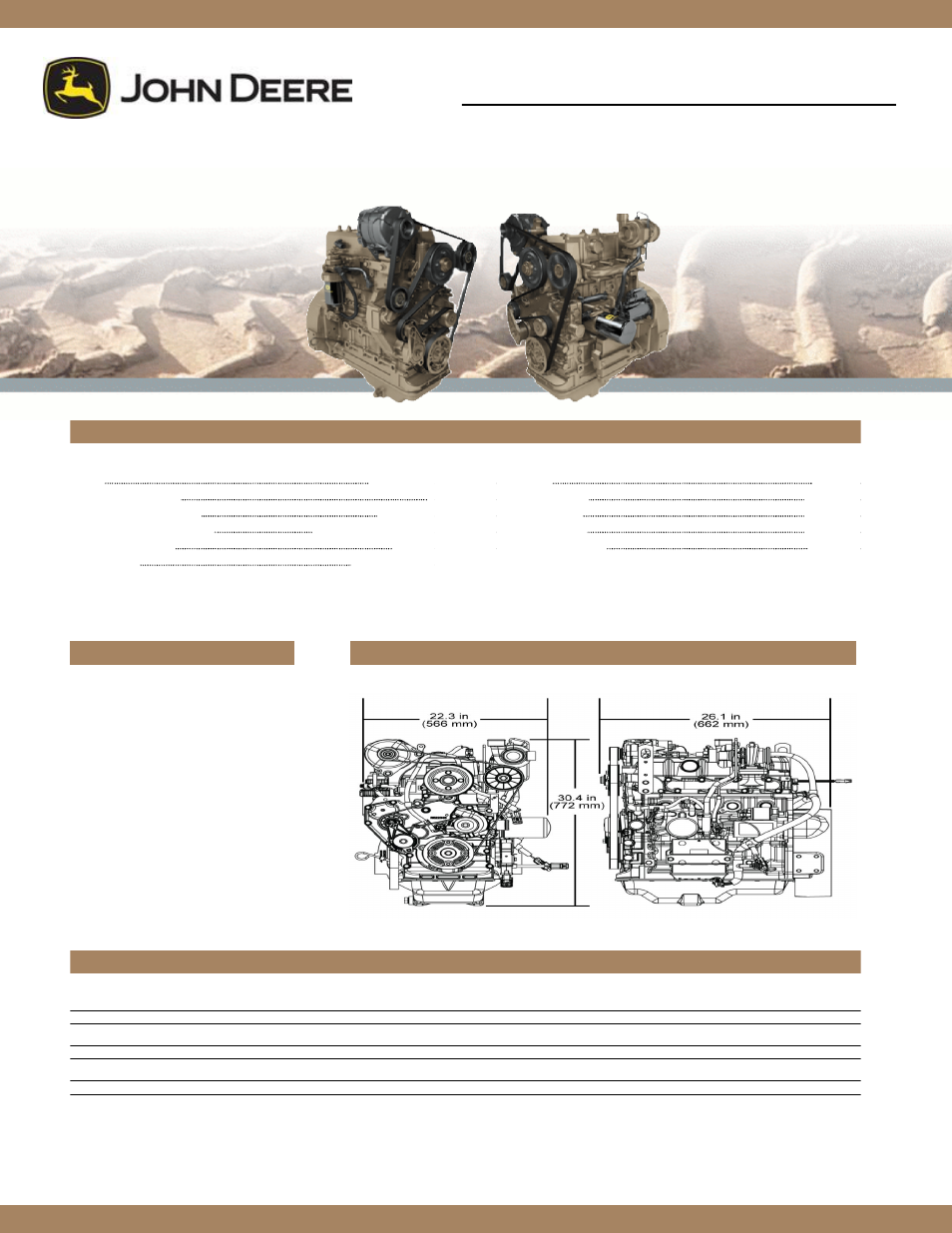

4024HF Engine shown
% */*1’- # ’3’
Rated BHP is the power rating for variable speed and load applications where full power is required intermittently.
Continuous BHP is the power rating for applications operating under a constant load and speed for long periods of time.
Heavy duty - see application ratings/definitions, engine performance curves. Power output is within + or - 5% at standard SAE J 1995 and ISO
3046.
& *1+01.’/(* )’3’
" *13,+,(’3,0 /2
CARB
EPA Interim Tier 4
EU Stage III A
# ,. */2,0/2
Model 4024HF295
Number of cylinders 4
Displacement-- L (cu in) 2.44 (149)
Bore and Stroke-- mm (in) 86 x 105 (3.39 x 4.13)
Compression Ratio 18.2 : 1
Engine Type In-line, 4-Cycle
Aspiration Air-to-Air
Length-- mm (in) 662 (26.1)
Width-- mm (in) 566 (22.3)
Height-- mm (in) 772 (30.4)
Weight, dry-- kg (lb) 251 (553)
Rated Speed
Intermittent 49 kW (66 hp) @ 2800 rpm
Peak power 50 kW (67 hp) @ 2600 rpm
Power bulge % 0% @ NA rpm
Peak torque 256 N·m ( 189 ft-lb) @ 2000 rpm
Torque Rise % 35% @ 2000 rpm
Photographs may show non-standard equipment.
4024H Diesel Engine
PowerTech
TM
E
Specifications
