& *1+01.’/(* (415*

$ *’341*2 ’/) ! */*+,32

2-Valve Cylinder Head

Cross flow head design that provides excellent breathing from
a lower cost two-valve cylinder head

Electronic Unit Pump (EUP) Fuel System

Regulated rated speed flexibility and improved cold-start and
warm-up control

Air-to-Air Aftercooled

This is the most efficient method of cooling intake air to help
reduce engine emissions while maintaining low-speed torque,
transient response time, and peak torque. It enables an engine
to meet emissions regulations with better fuel economy and
the lowest installed costs

Compact Size

Mounting points are the same as Tier 2/Stage II engine
models

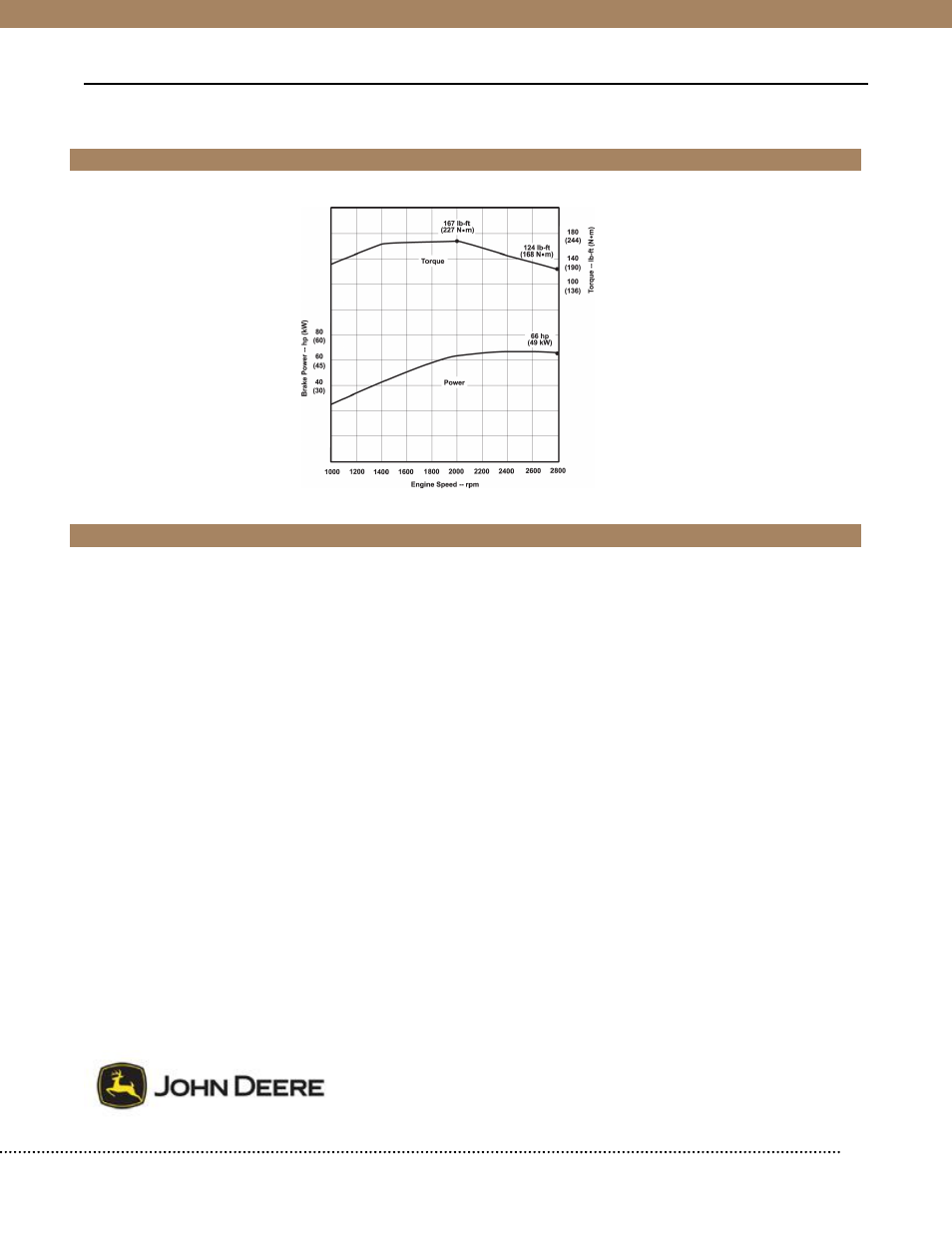

Engine Performance

Increased low-speed torque
New higher-peak torque ratings
Faster torque rise
Lower-rated speeds available for reduced noise and fuel
economy

John Deere Electronic Engine Controls

Electronic engine controls monitor critical engine functions
providing warning and/or shutdown to prevent costly engine
repairs and eliminate the need for add-on governing
components all lowering total installed costs. Snapshot
diagnostic data can be retrieved using commonly available
diagnostic service tools
Controls utilize new common wiring interface connector for
vehicles or available OEM instrumentation packages; new
solid conduit and “T” connectors reduce wiring stress,
providing greater durability and improving appearance
Factory-installed, engine mounted ECU or remote-mounted
ECU comes with wiring harness and associated components.
Industry-standard SAE J1939 interface communicates with
other vehicle systems, eliminating redundant sensors and
reducing vehicle installed cost

Additional Features

Self-adjusting poly-vee fan drive
Forged-steel connecting rods
Either-side service
500-hour oil change
Gear driven auxiliary drive

John Deere Power Systems
3801 W. Ridgeway Ave.
PO Box 5100
Waterloo, IA 50704-5100
Phone: 800.553.6446
Fax: 319.292.5075

John Deere Power Systems
Usine de Saran
La Foulonnerie - B.P. 11.13
45401 Fleury les Aubrais Cedex
France
Phone: 33.2.38.82.61.19
Fax: 33.2.38.82.60.00

All values at rated speed and power with standard options unless otherwise noted.
Specifications and design subject to change without notice.

Diesel Engine

4024H

PowerTech

Specifications
