MAINTAINENCE AND REPAIR MANUAL
UPLS-2400-SS/2300-SS
MAGNUM VENUS PLASTECH
REV 1.13
APRIL 2010
PAGE 38
Using the appropriate wrenches, tighten the Piston Body down onto the Piston Rod.
•
Note: Make sure the Piston Ball Spring and Piston Ball are lined up correctly in the bore of the
Piston Rod. (FIG 5.9)
•
Caution: Over tightening the piston body using cup style seals will damage the seals

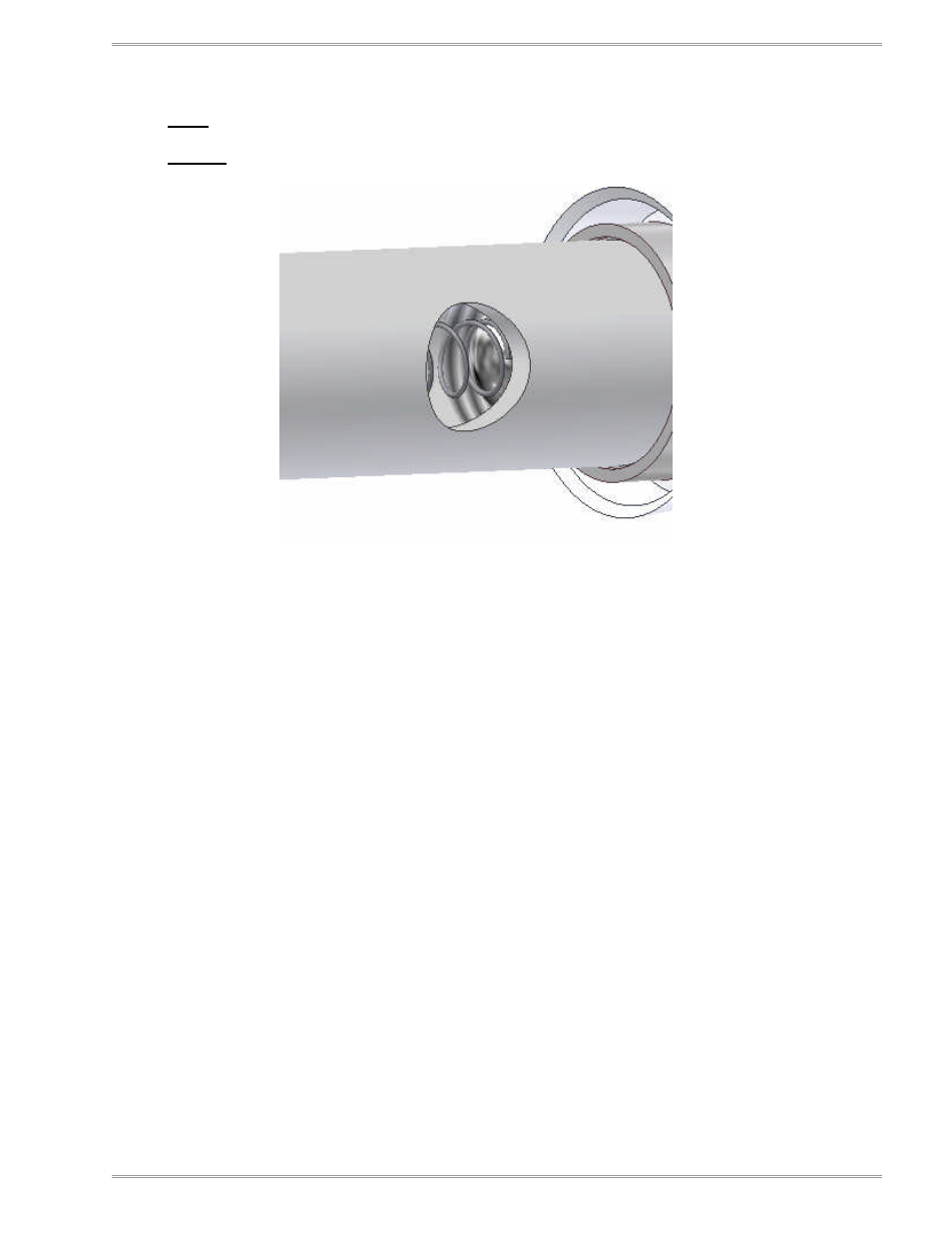

FIG 5.9
Remove Piston Rod assembly from vise and set aside.
