MAINTAINENCE AND REPAIR MANUAL
UPLS-2400-SS/2300-SS
MAGNUM VENUS PLASTECH REV 1.13
APRIL 2010 PAGE 28
Outlet Body
•
Threads must be clean and not marred up. Area where the Piston Rod Packing assembly is
placed must be clean with no buildup.
Piston Ball Spring
•
Ensure the spring is not bent.
Chrome Ball (Piston Body)
•
Ball must not be dented, pitted or scratched.
Piston Rod
•
Threads must be clean and not marred up.
•
Check spring guide to make sure it is straight.
•
Ensure there is no buildup inside the chamber.
•
Check polished part of shaft for wear.

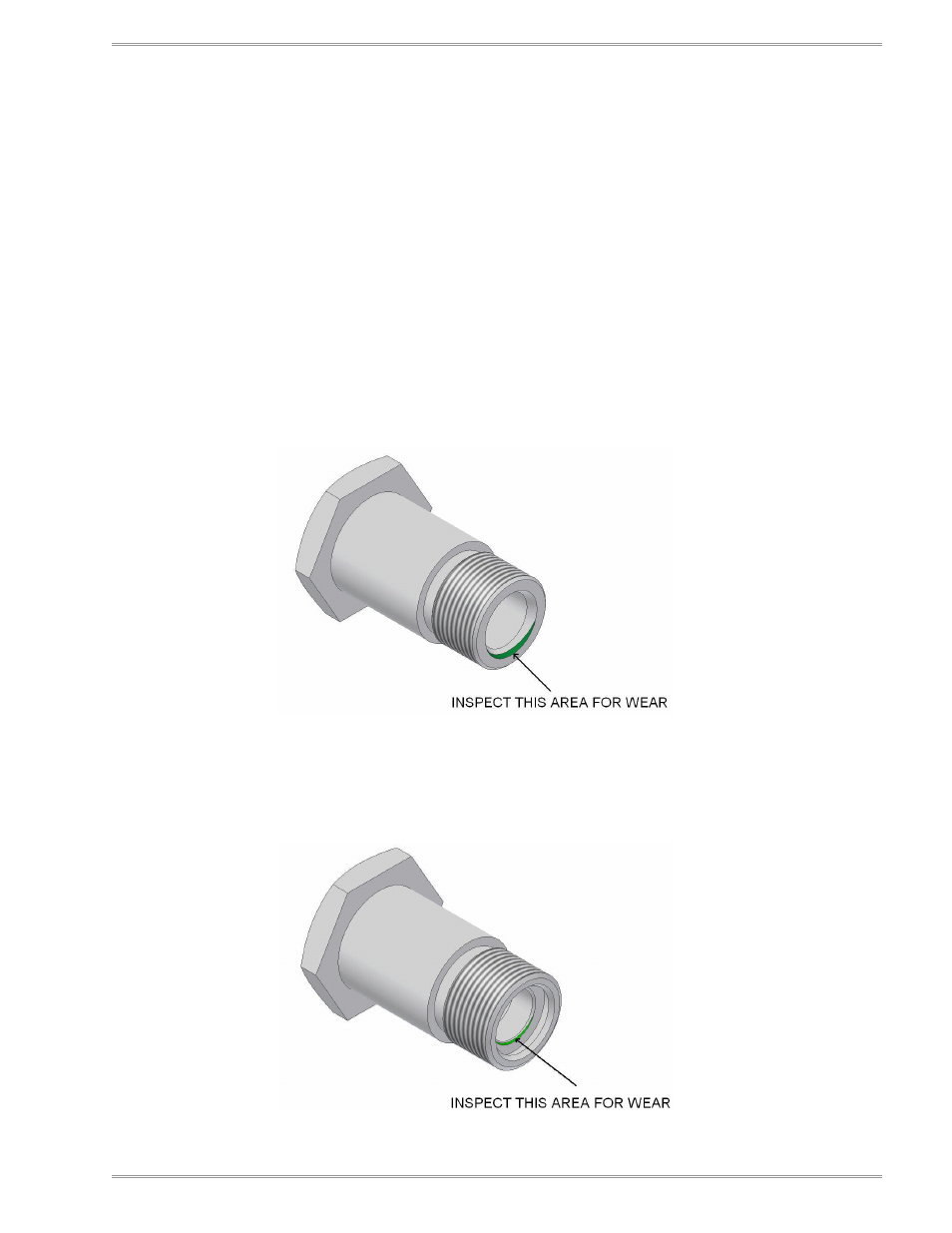

Piston Body (Non Stainless Steel)
•
Threads must be clean and not marred up.
•
Check ball seat for abnormal wear or damage. See Fig (FIG 4.2)
FIG 4.2
Piston Body (Stainless Steel)
•
Threads must be clean and not marred up.
•
Check ball seat for abnormal wear or damage. See Fig (FIG 4.3)
•
–SS Option. Check Kalrez O-ring on the ball seat for tears. Remove if damaged. (FIG 3.80)
FIG 4.3
