PISTON ROD DISASSEMBLY (Cup Style Type Piston Seal)

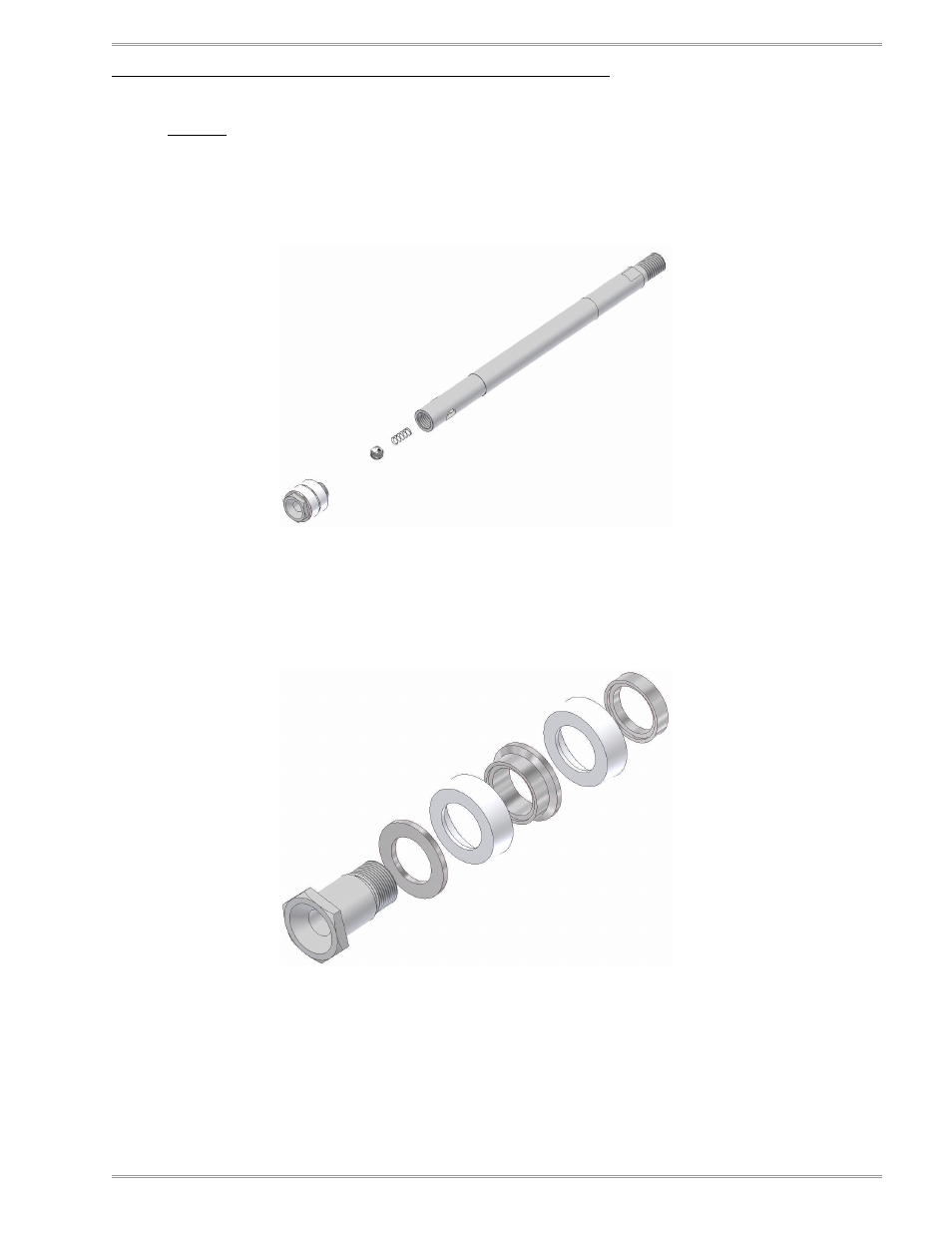

Using the appropriate wrenches, remove the Piston Body from the Piston Rod. (FIG 3.85)
•
Caution: When you remove the Piston Body the Chrome ball may fall out. If only using the -SK
Seal Kit, the Chrome Ball must be reused. Do not drop or dent this ball as it will be permanently
damaged and must be replaced
Remove the Piston Body, Cup Seal assembly, Chrome Ball and Piston Ball Spring. (FIG 3.85)
FIG 3.85
Remove the Piston Cup Compression Ring, Upper Piston Cup, Piston Cup Spacer, Lower Piston Cup
and Piston Cup Backup Ring from the Piston Body. (FIG 3.86)
FIG 3.86
