MAINTAINENCE AND REPAIR MANUAL
UPLS-2400-SS/2300-SS
MAGNUM VENUS PLASTECH REV 1.13
APRIL 2010 PAGE 32
Place the Chrome Ball gently into the Foot Valve
•
Caution: Do not drop or dent this ball as it will be permanently damaged and must be replaced
•
Note: If the Fluid Section is to be used with a Polyester/Vinylester resin system then a fine coat of
Red Grease should be applied to the ball before installing into the Foot Valve. The Chrome Ball
on an Epoxy or Urethane system should be clean and in good condition with no lubricant or
grease. If in doubt contact the material manufacturer for recommendations.
Place the Foot Valve Spring on top of the Chrome Ball.

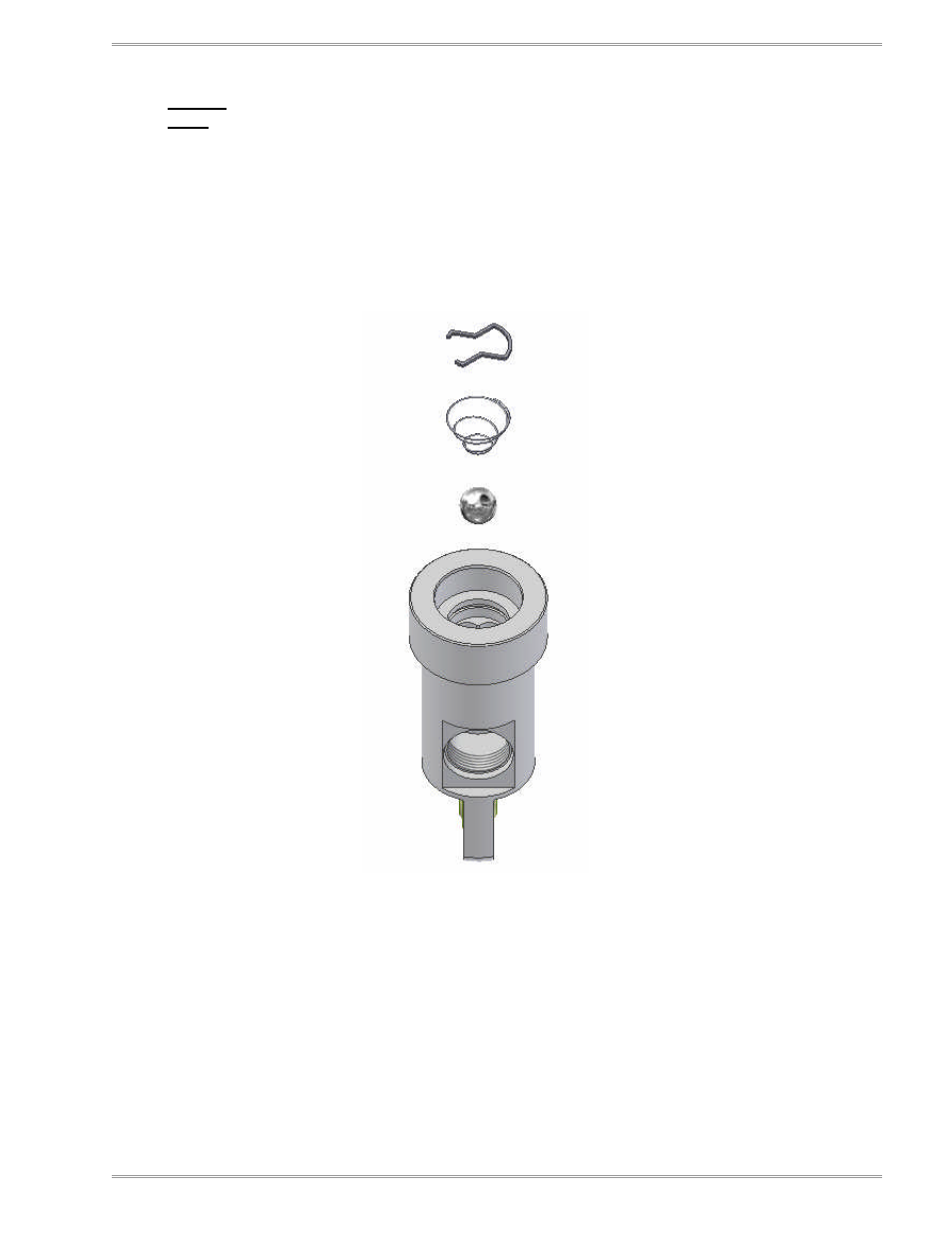

Using a set of pliers, compress the Ball Stop and place it on top of the Foot Valve Spring. Once it is
centered, compress the Foot Valve Spring until you can lock the Ball Stop into the appropriate groove in
the Foot Valve. (FIG 5.11)
FIG 5.11
Remove Foot Valve assembly from the vice and put aside.
