MAINTAINENCE AND REPAIR MANUAL
UPLS-2400-SS/2300-SS
MAGNUM VENUS PLASTECH REV 1.13
APRIL 2010 PAGE 36

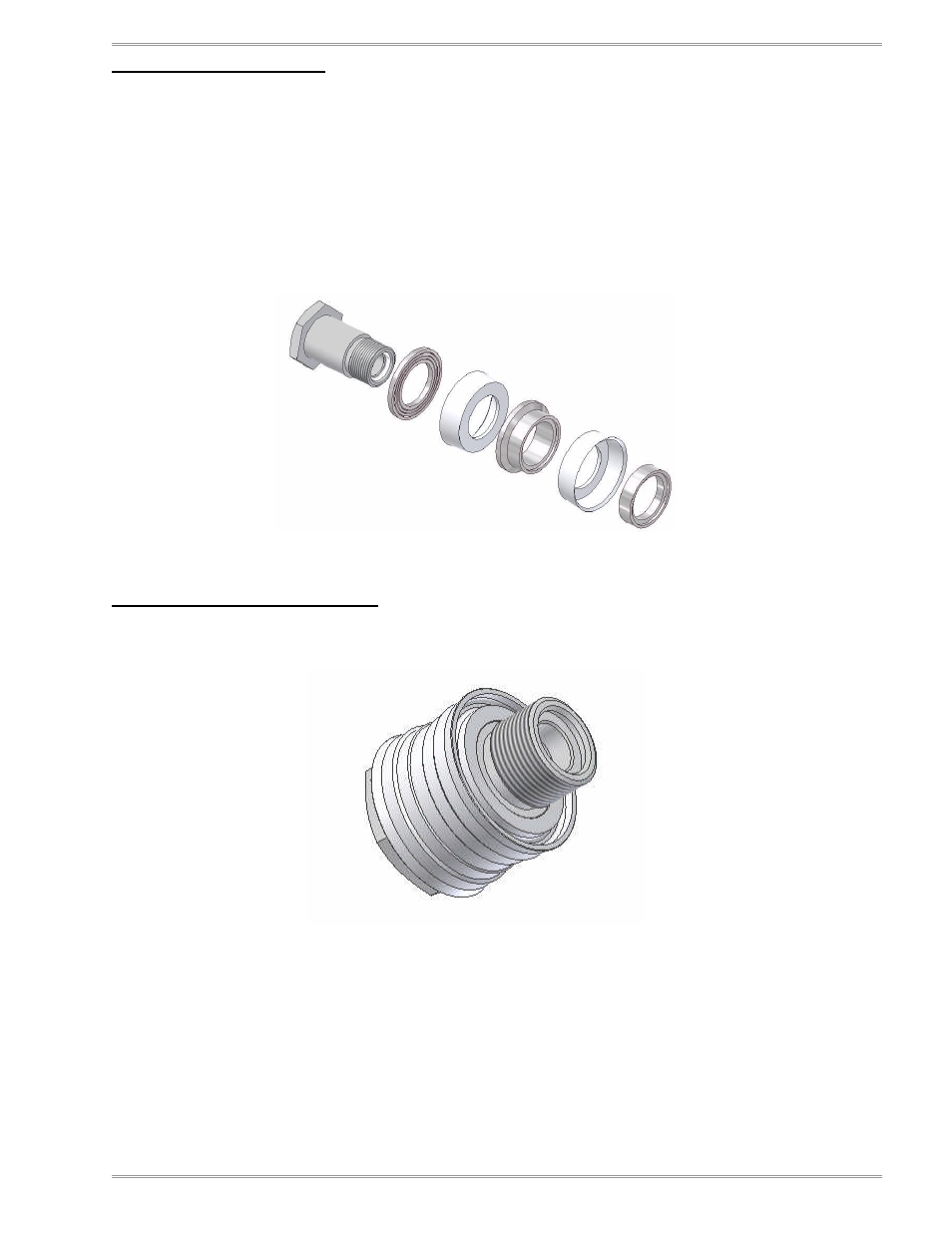

OPTIONAL CONFIGURATION Reference (FIG 5.51) for stack configuration.
Place the Piston Cup Spacer over the Piston body, the small end of the Piston Cup Spacer should be
facing up and the ridges on the Piston Cup Spacer should be facing down.
Place the first Piston Cup down over the Piston Body facing down.
Place the Piston Cup Backup down over the Piston Body. Install with the ridges up.
Place the second Piston Cup down over the Piston Body facing up
Place the Piston Cup Compression ring over the Piston Body.
FIG 5.51
BARREL TYPE SEAL INSTALLATION
•
Place the Piston Barrel Seal onto the Piston Body. (FIG 5.52)
FIG 5.52
