FOOT VALVE DISASSMBLY
FOOT VALVE DISASSEMBLY UPLS-2300-SS ONLY
The Stainless Steel Foot Valve has an additional O-ring seal near the ball seat. During disassembly of the
Foot Valve Assembly, DO NOT REMOVE THIS O-RING! The O-ring is not in the –SK or –RK kits and
must be ordered separately.
Wipe down the Foot Valve Body with the approved solvent and inspect the O-ring. Under normal
conditions this O-ring will not have to be replaced. If the O-ring is nicked, torn or broken, it must be
replaced. (FIG 3.90)

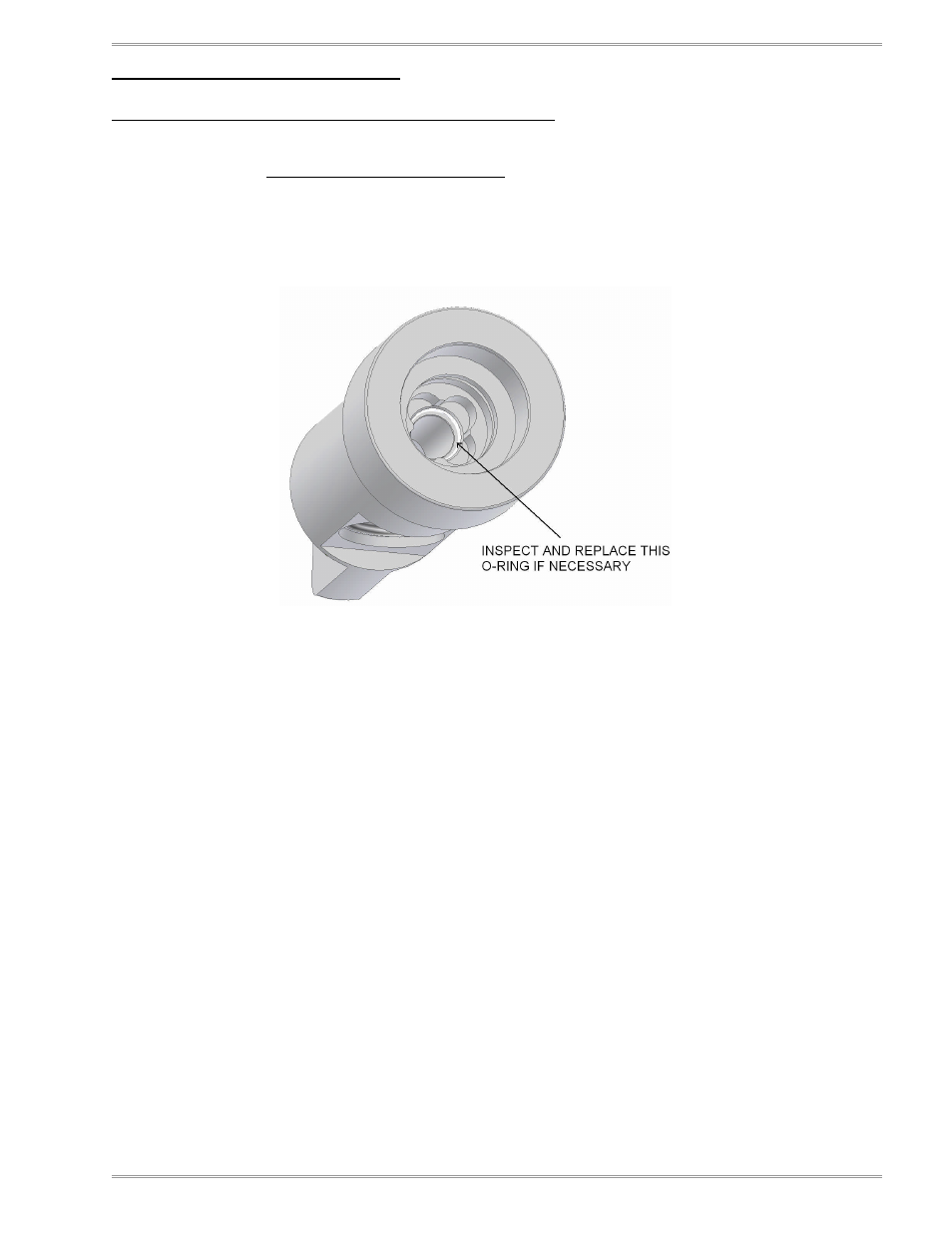

FIG 3.90
